Sydhavnskaj - DKTYB-0003
Quay 2001, 2002
Quayside for offshore construction teams

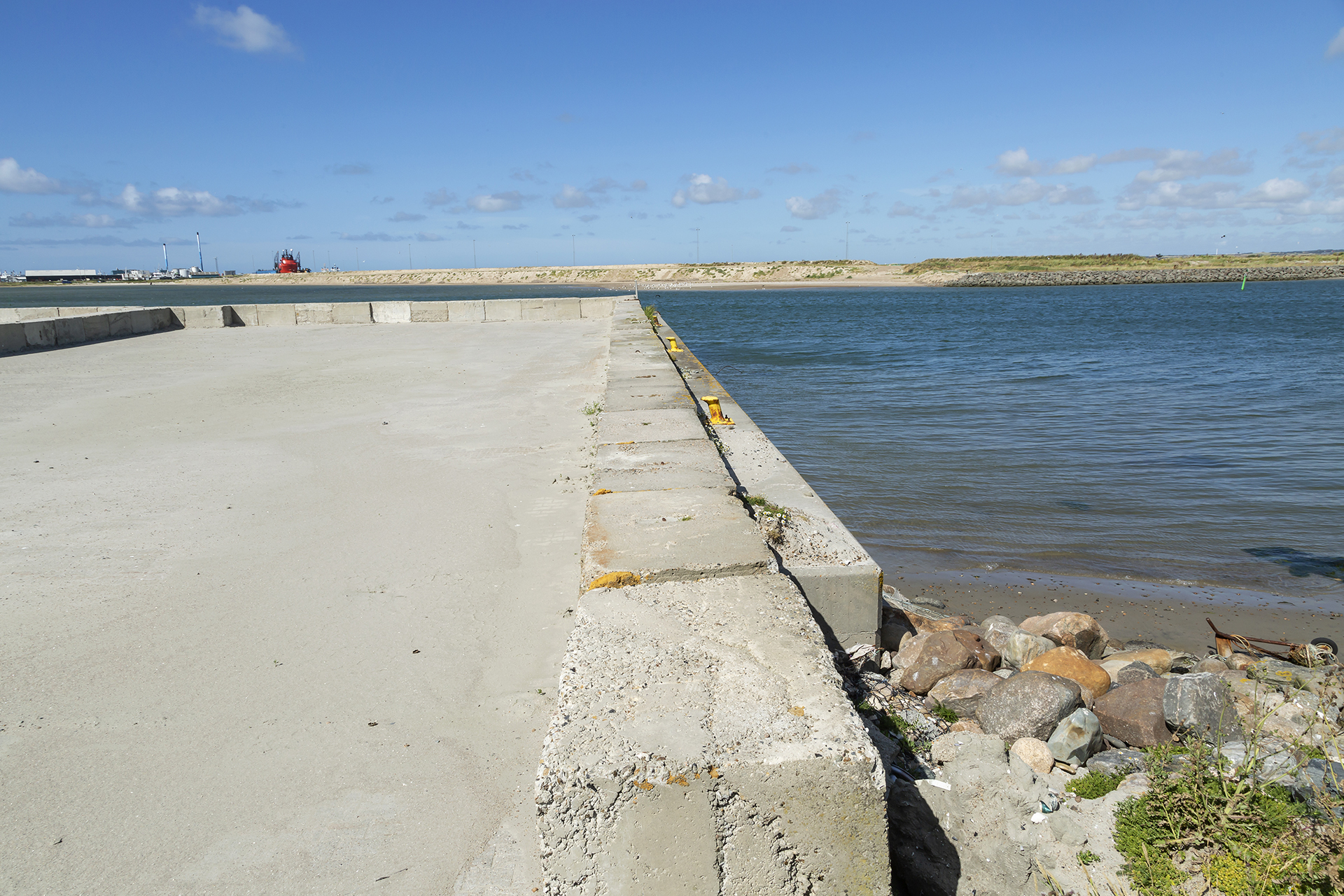

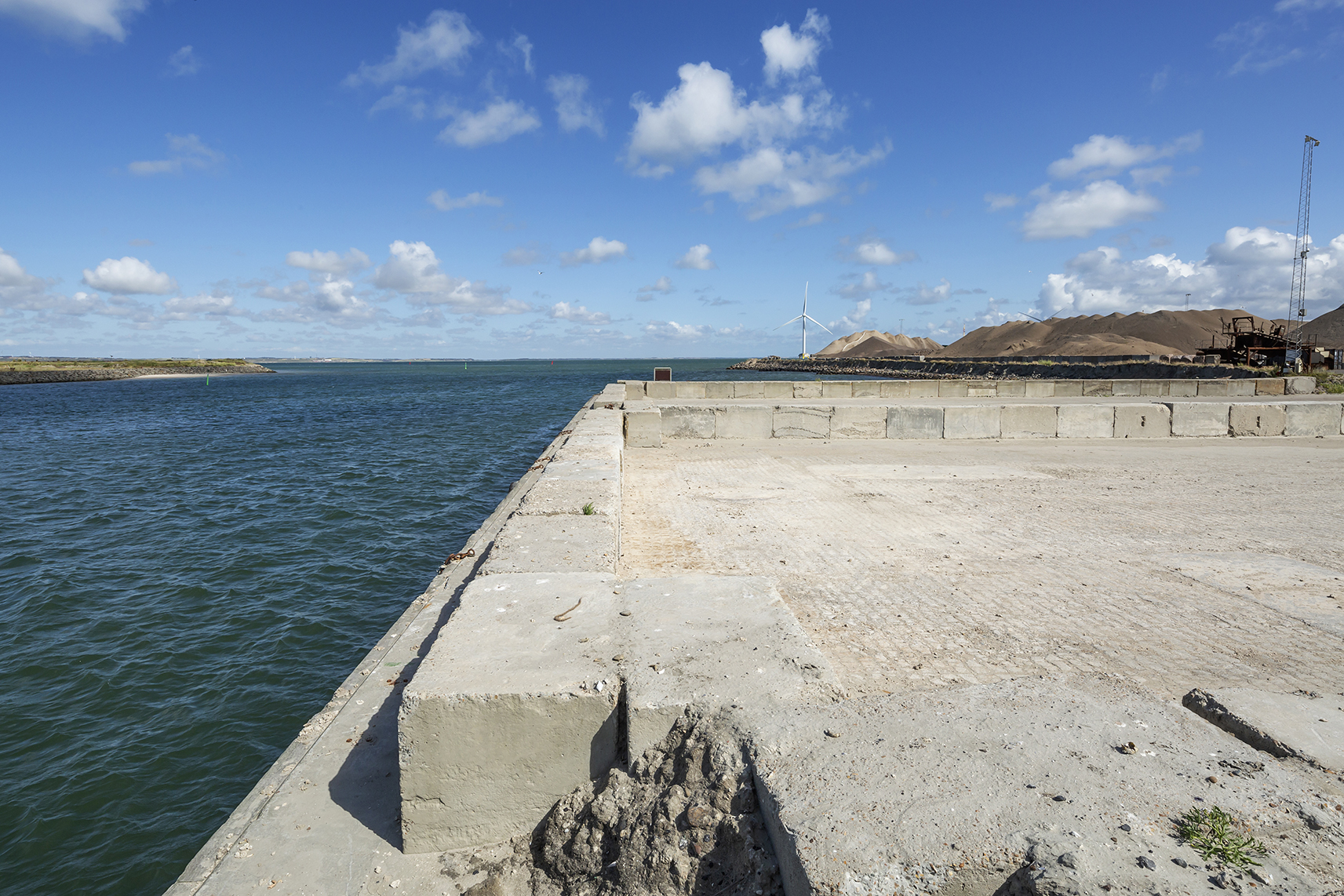

Sydhavnskaj is the oldest cargo terminal in Thyboron. The water depth of 4.5 metres limits how many types of cargo vessels are able to call at the quay. But there is safe all-weather navigation for the vessels that are able to, in the well-protected harbour basin.
Sydhavnskaj is ideal for the offshore wind O&M with super quick access from the port facility to the fairway for CTVs and bunkering supplies directly at the quayside.
The quay is also suitable as a layover quay for barges and shallow water vessels.
The quay offers easy access to power and water, and allows vessels to dispose of ship waste and slop oil in an eco-friendly manner.

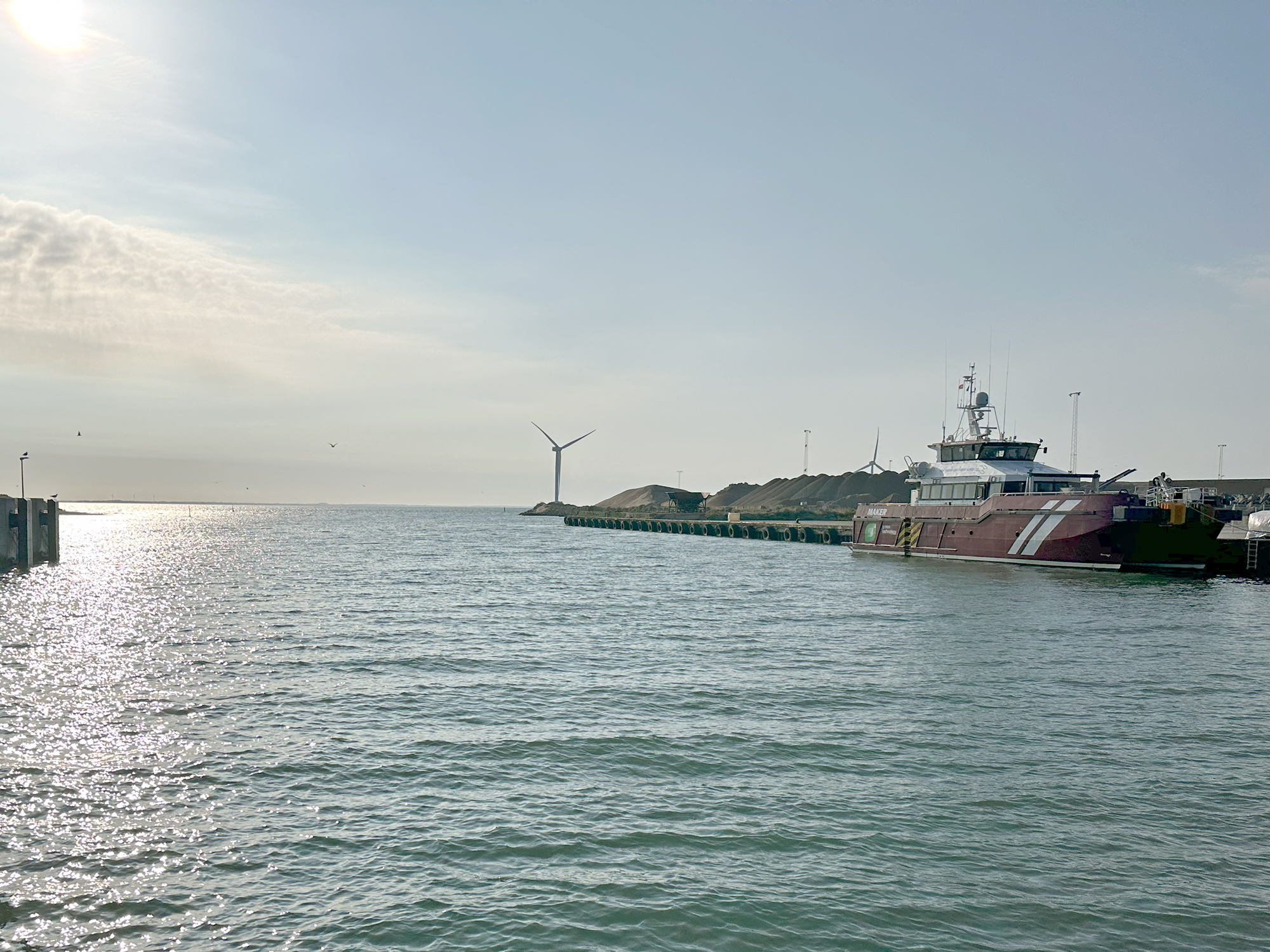

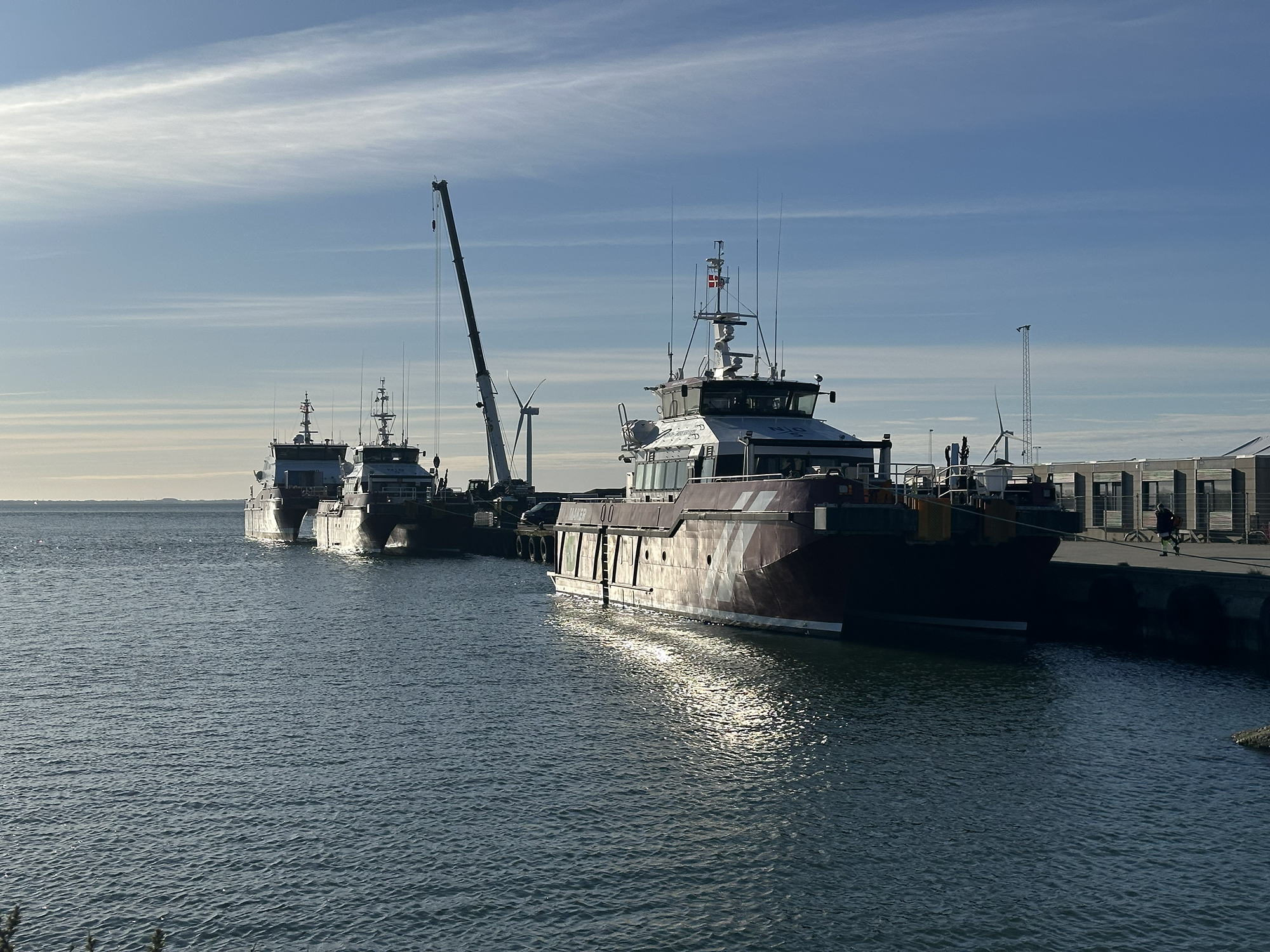

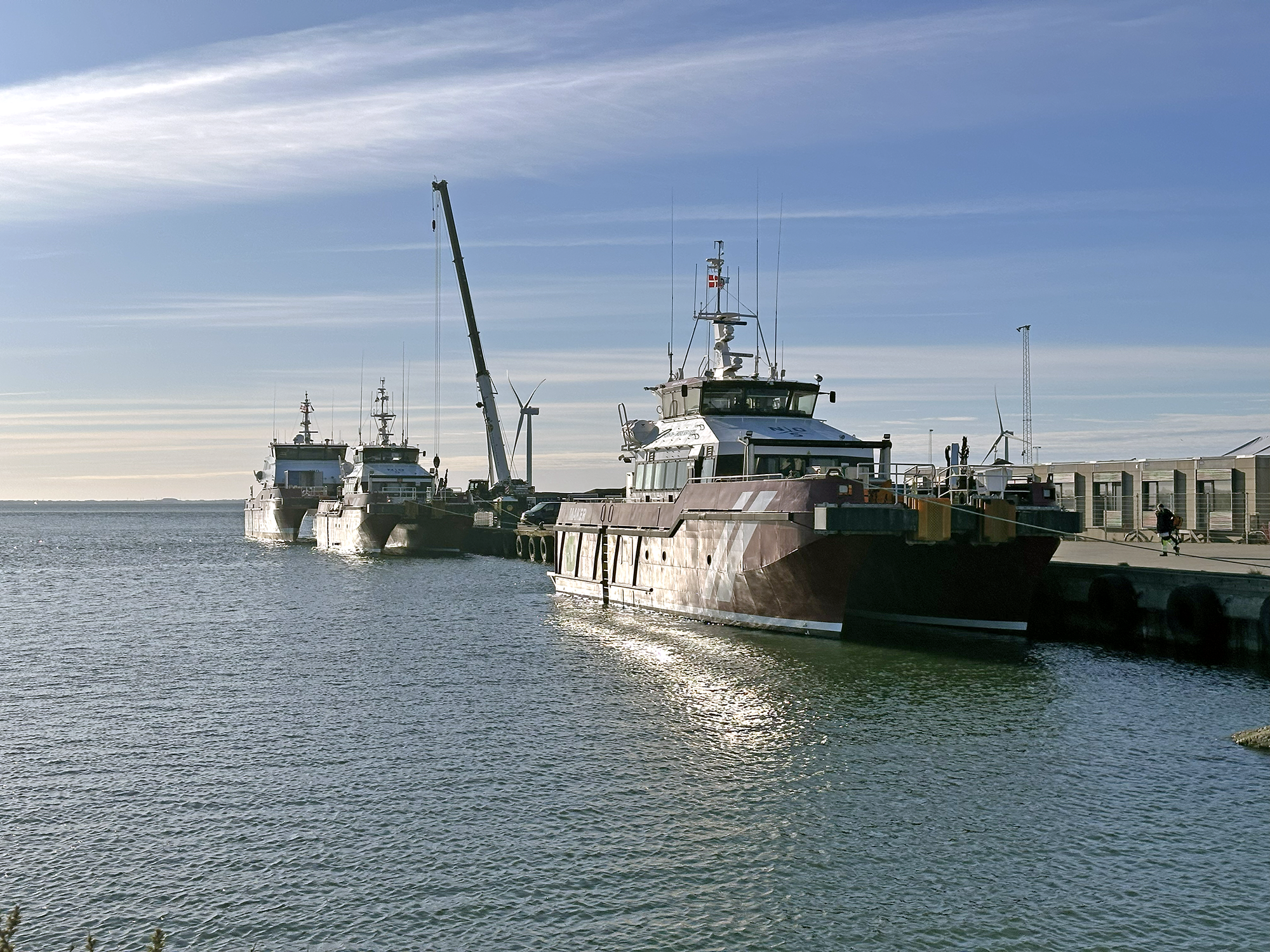

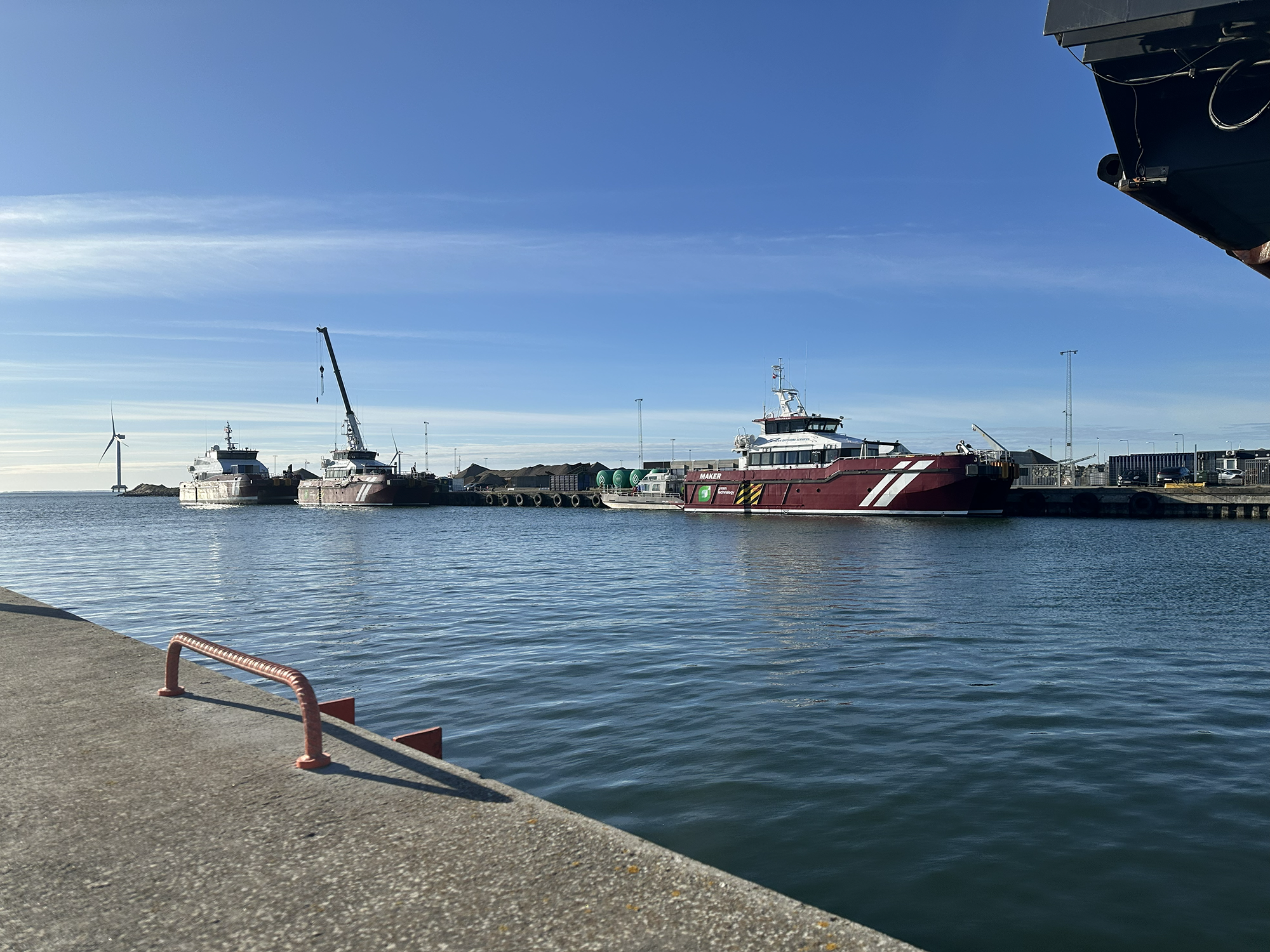

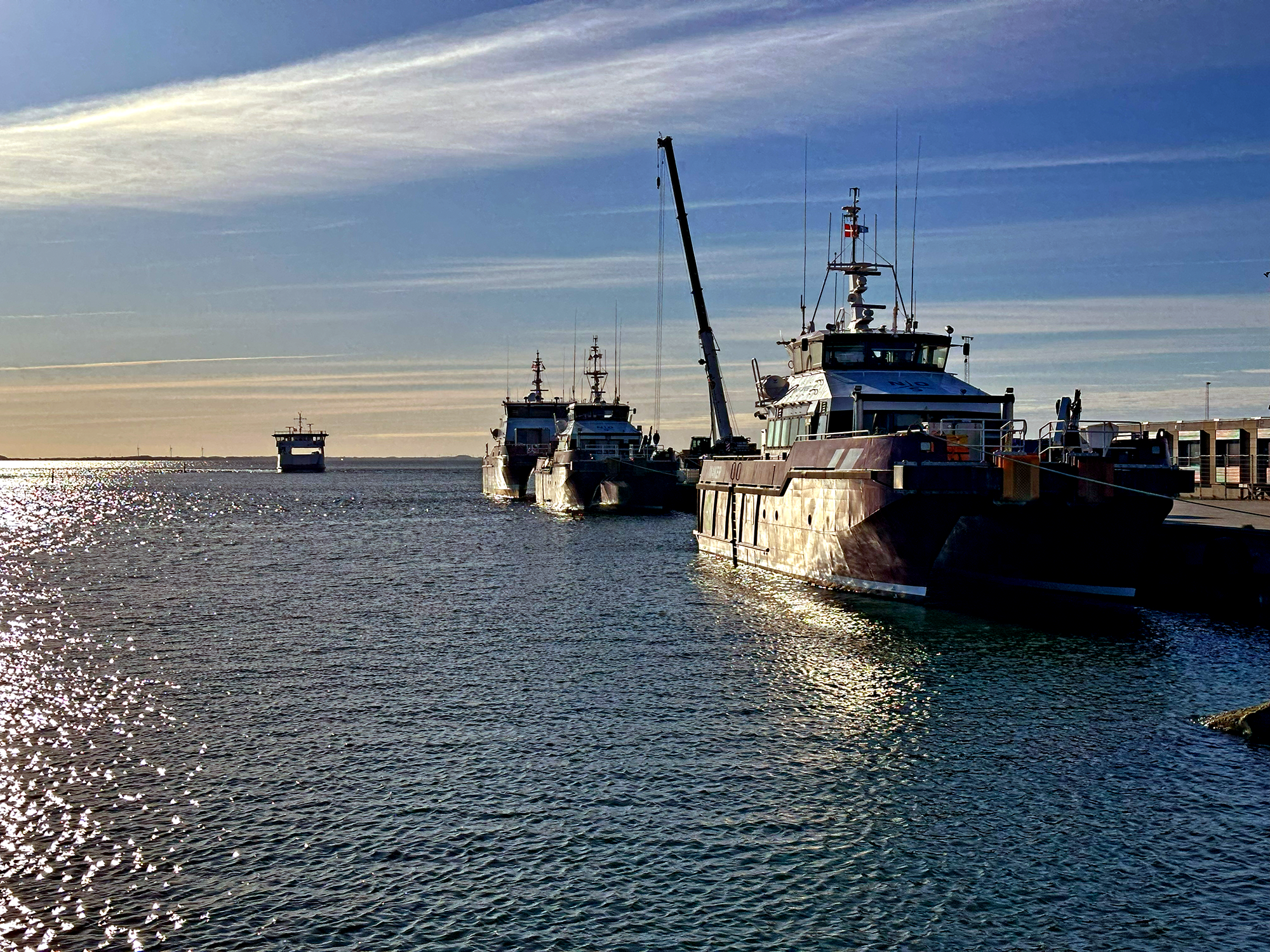

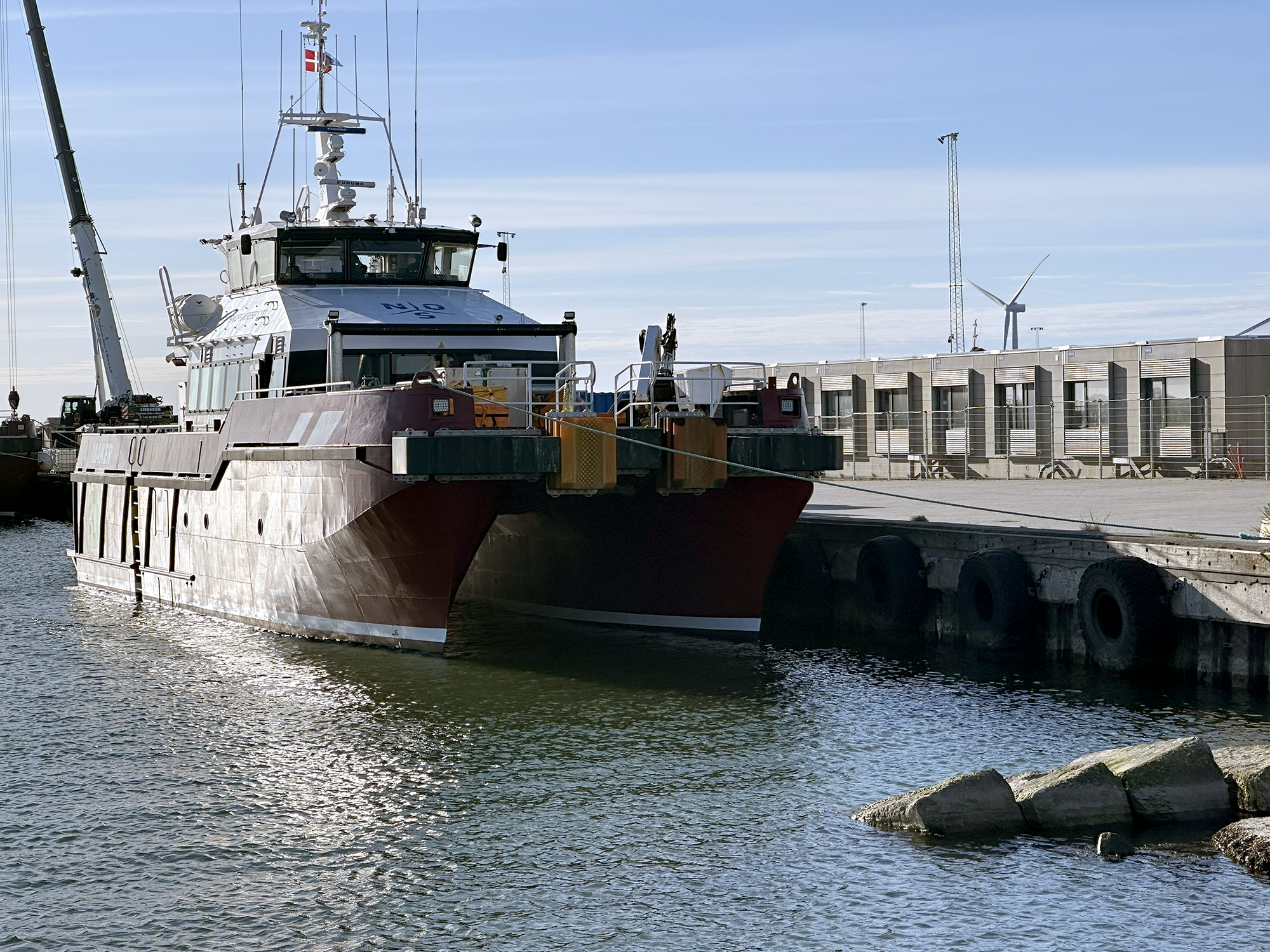

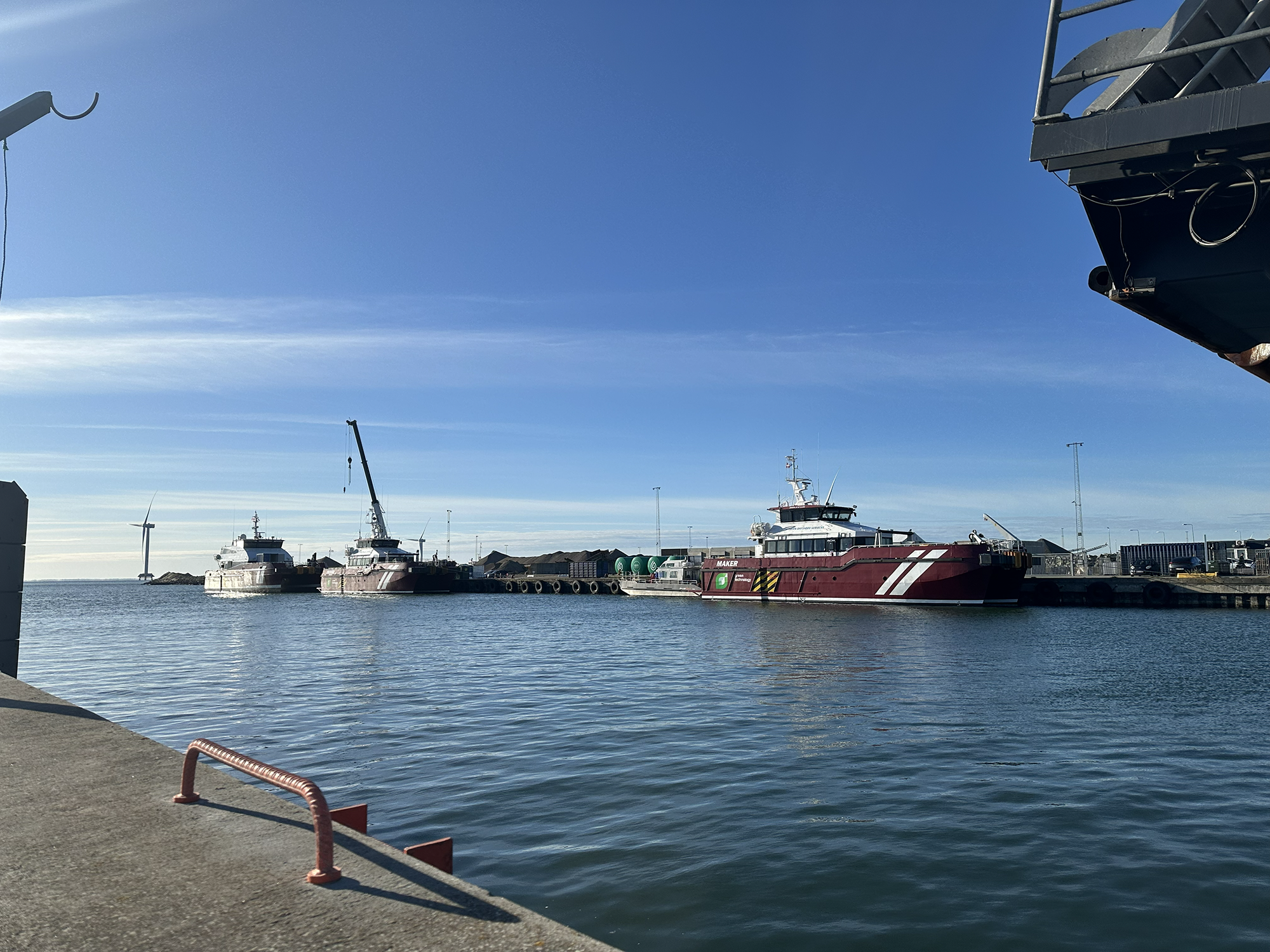

Ideal quay for crew transfer vessels

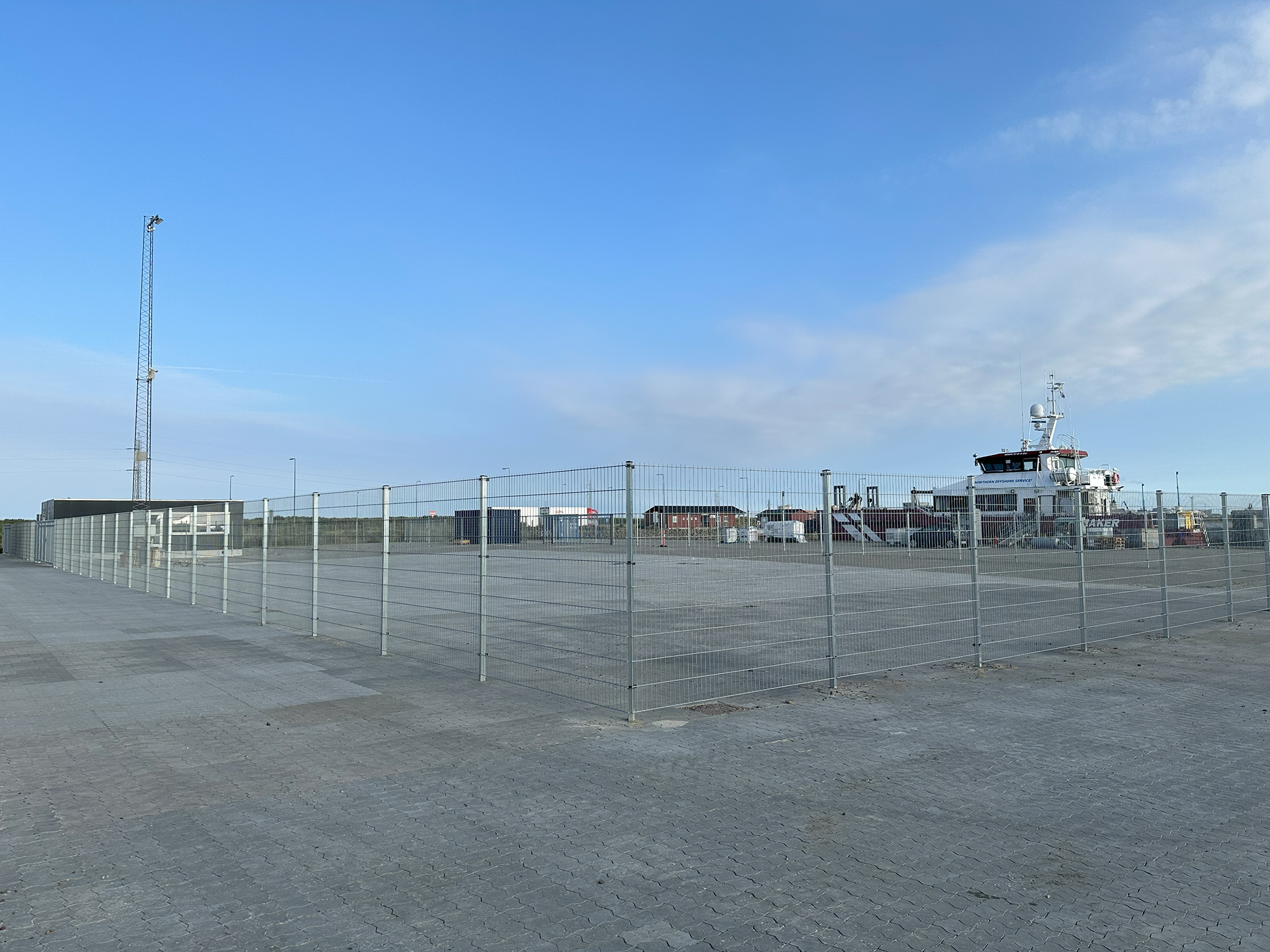

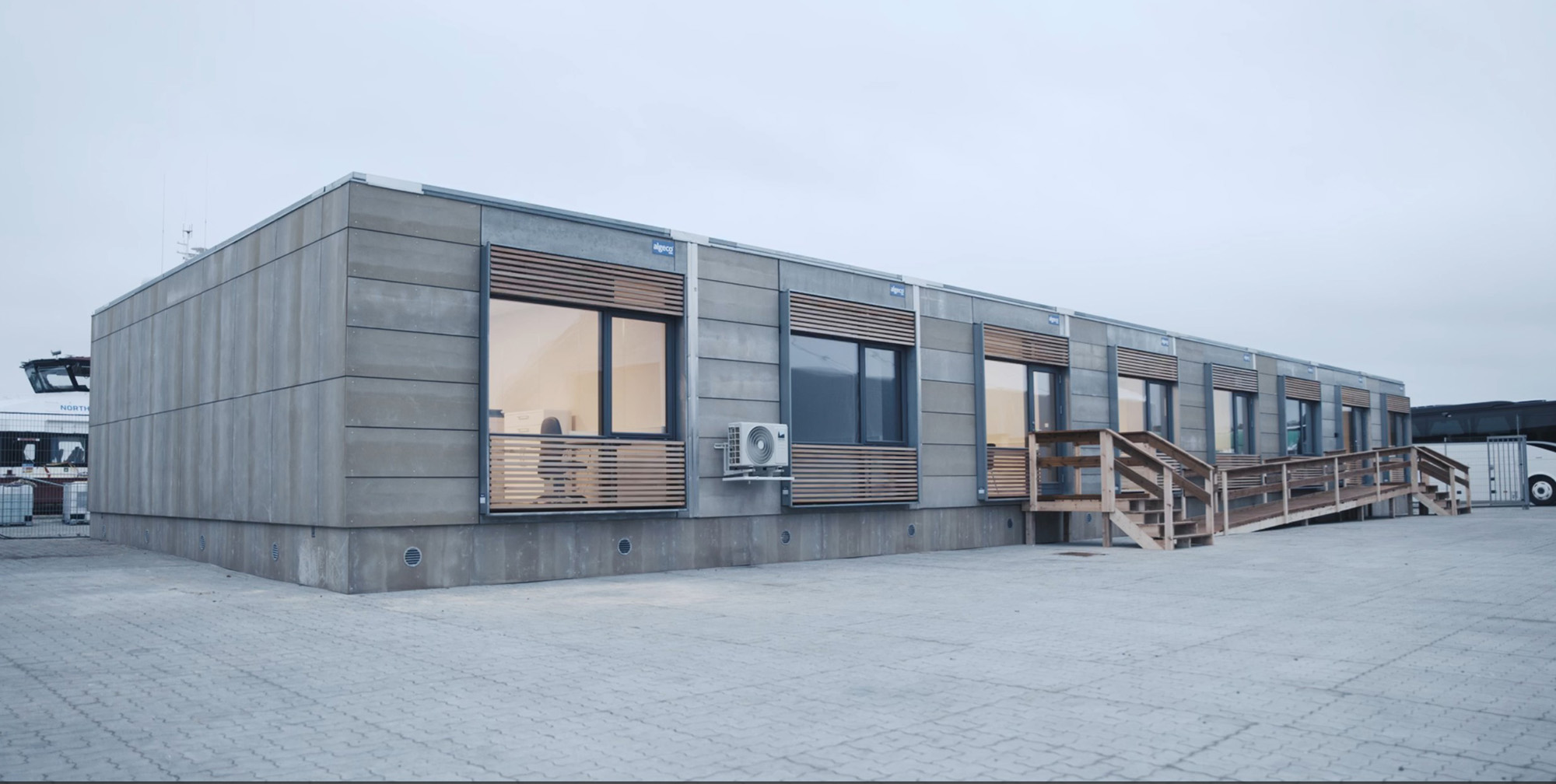

Opportunity for quayside O&M hubs for offshore technicians
Easy access to supplies

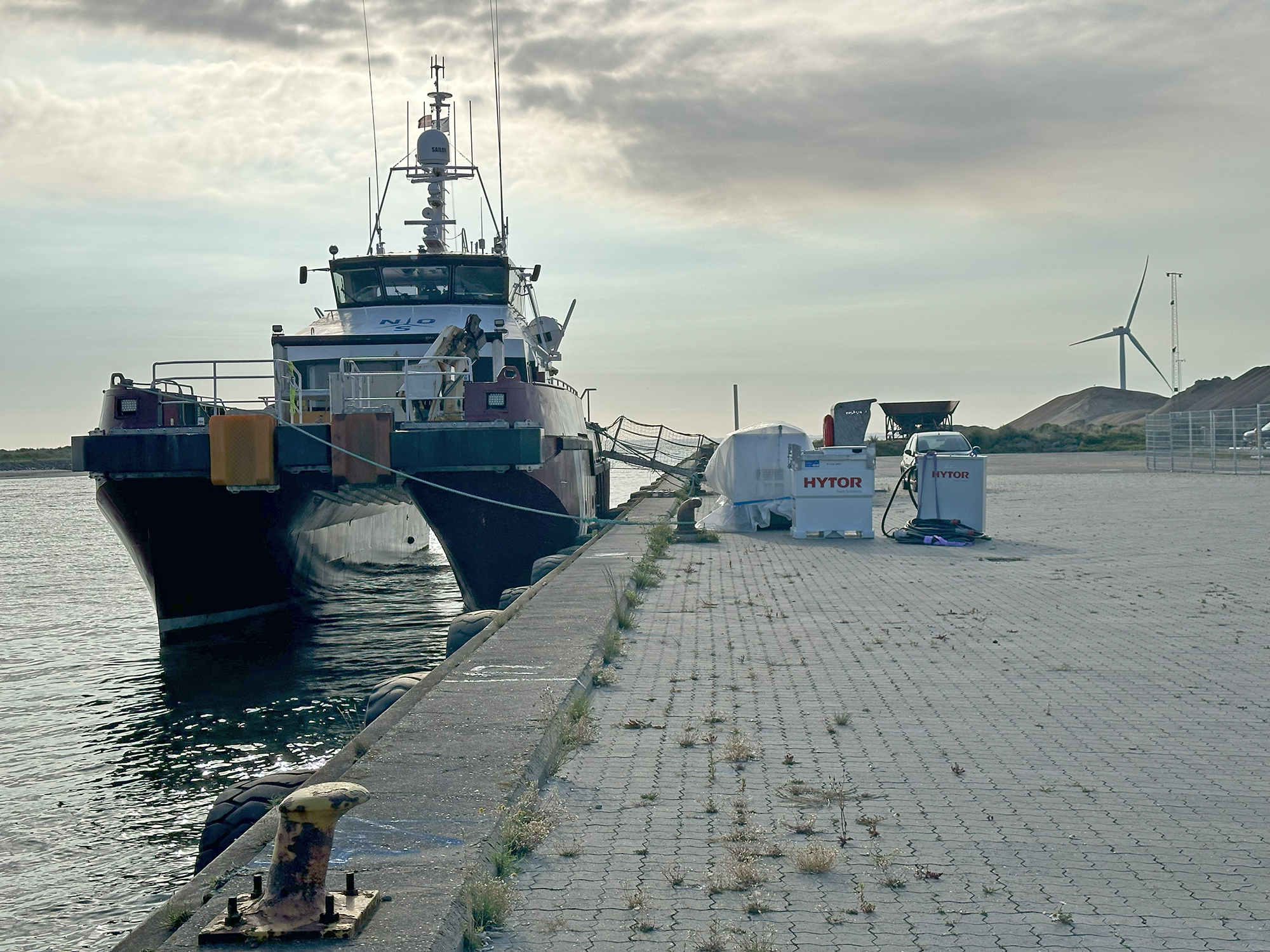

Bunkering facilities
Malik Energy A/S
Layover quay for barges
Environmentally approved area for handling sludge
Technical Data - Sydhavnskaj
Berth number
- Berth 1
- 2001
- Berth 2
- 2002
Navigation
- Water depth, m, (LAT)
- 4,3
- Port entrance corridor, m
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 175
- Quay width, m
- 30
- Quay wall in m
- 2
Capacity
- Bearing capacity, t per sqm
- 1
- Distributet pressure, t per sqm
- 1
- Outrigger pressure at 1X1 m plate, 1 m from quayside, t
- 10
- Axle load, t
- 8
Type
- Quay type, Sheet pile wall
- ✓
- Surface type quay, concrete
- ✓
- Surface type quay, gravel
- ✓
- Capping beam type, concrete
- ✓
Service
- Accessible for cranes
- ✓
- Accessibility for maritime service
- ✓
Quay equipment
Supplies
- Power stations on quay
- 1
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water hydrants on quay
- 1
- Wi-Fi, fiber connection
- ✓
- Bunkering at quay
- ✓
Safety
- Safety ladders, type SeaSafe with LED lights
- ✓
- Safety ladders, quantity
- 3
- Safety point, quantity
- 2
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 1,80 & 6-8 & 16-20
- Quay length with 1,80 m distance between fenders, m
- 62
- Bollard, quantity
- 9
- Bollard type, bean
- X-6-A-F
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
- 23
Environment
- Slopoil disposal
- ✓
- Waste disposal
- ✓
- LED lighting, numbers
Hinterland at the quayside
Dimensions
- Onshore area at quayside, sqm
- 8750
- Onshore area at quayside, concrete, sqm
- 3600
- Onshore area at quayside, concrete tiles, sqm
Capacity
- Bearing capacity 15 m from quay, t per sqm
- 10
- Bearing capacity 25 m from quay, t per sqm
- 25
- Surface thickness, concrete surfaced area, cm
- 20
Type
- Surface type project area at the quayside, concrete
- ✓
- Surface type, onshore area, concrete tiles
- ✓
