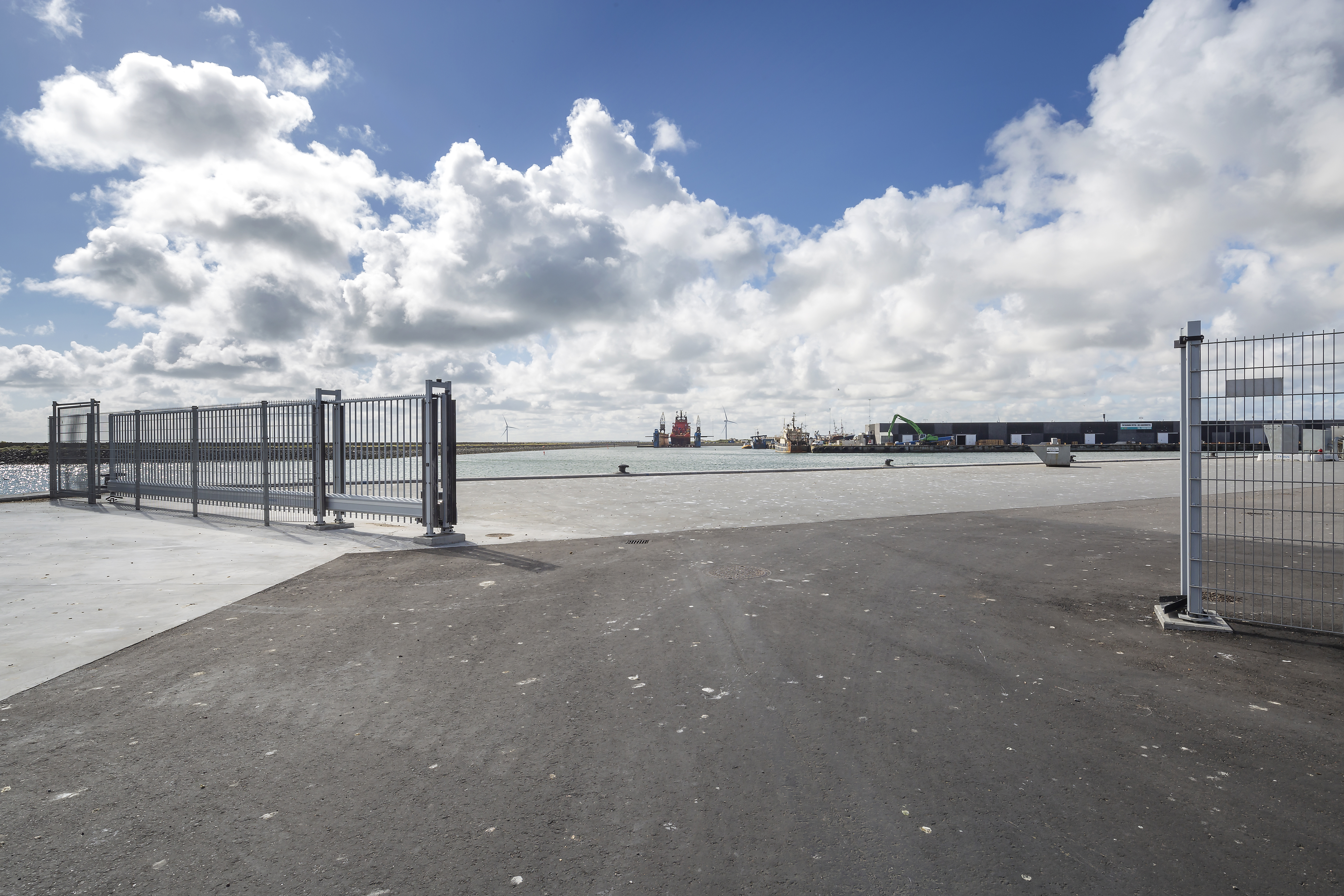

Oliekaj 15A4596 Web High

Oliekaj - DKTYB-00028

Quay 906, 907

Multifunction quay with facilities for ex-pipe bunkering

The new Oliekaj quay is a multifunctional quay that fits well with the flexibility the Port of Thyboron is renowned for. It increases the port’s quay capacity by 130 metres for bunkering, industrial fishing vessels and offshore supply vessels.

The quay is used extensively for high capacity bunkering, and has proven to be ideal for offshore supply vessels working in the North Sea. The quay is also good for handling and distributing bulk cargo, as trucks have easy access to and from the quay, and because there are bridge scales located on the road to and from this area of the port.

Simple access to new quay
The new Oliekaj quay lies in a straight line from the entrance to the Port of Thyboron. Entering the port is simple and straightforward, and the water depth is an impressive 9 metres.

Supplies
There is easy access to water, electricity and other supplies along the entire quay, and facilities for disposing of slop oil and ship waste.

Safety
The quay is equipped with a rescue station and Sea-Safe rescue ladders with LED lights for easy recognition in the dark, and is an ISPS-compliant area.



Simple passage to the quay

The new Oliekaj quay lies in a straight line from the entrance to the Port of Thyboron. Entering the port is simple and straightforward, and the water depth is an impressive 9 metres.

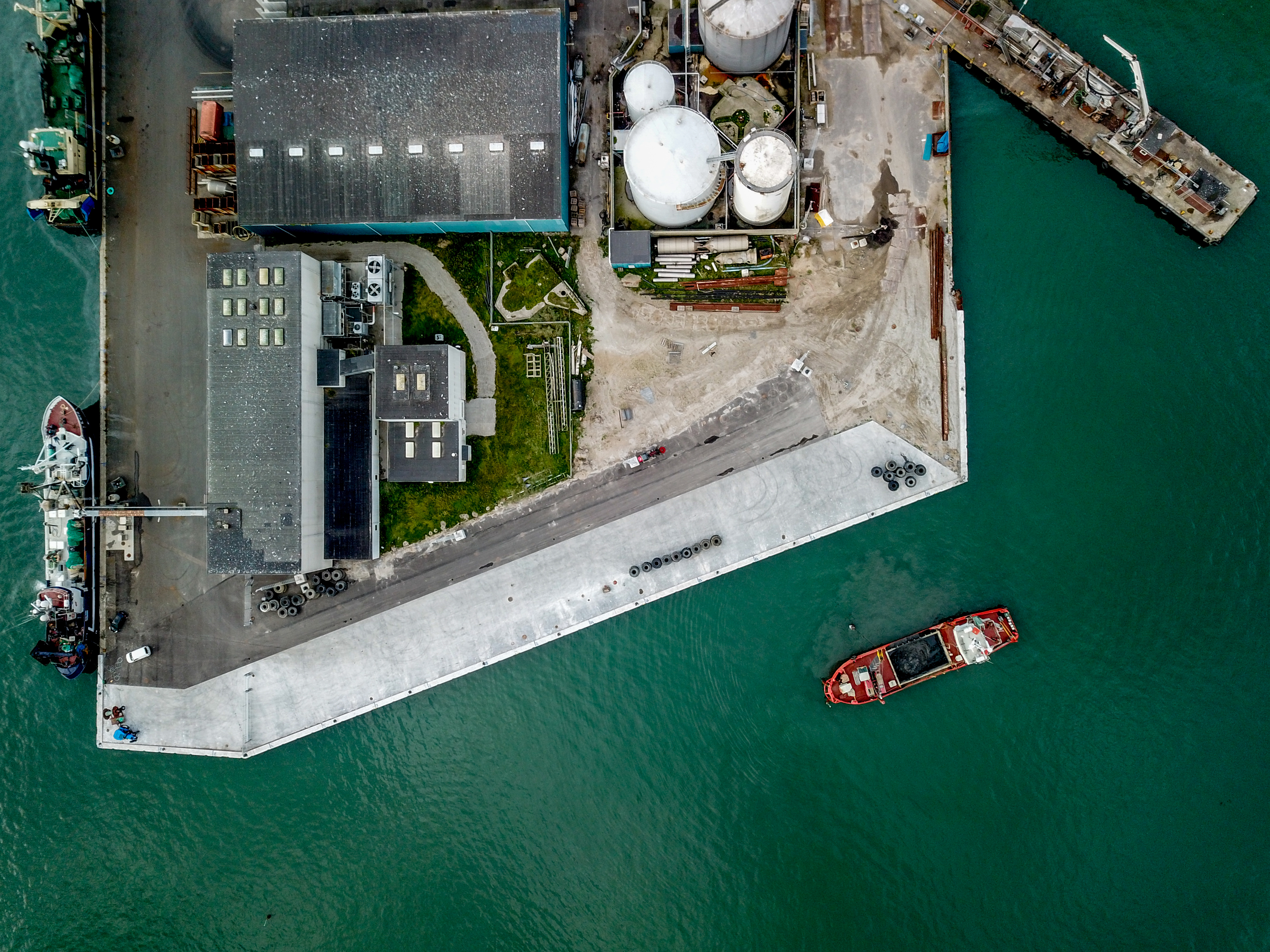

Oliekaj Ovenfra 0157 Web

Bunkering

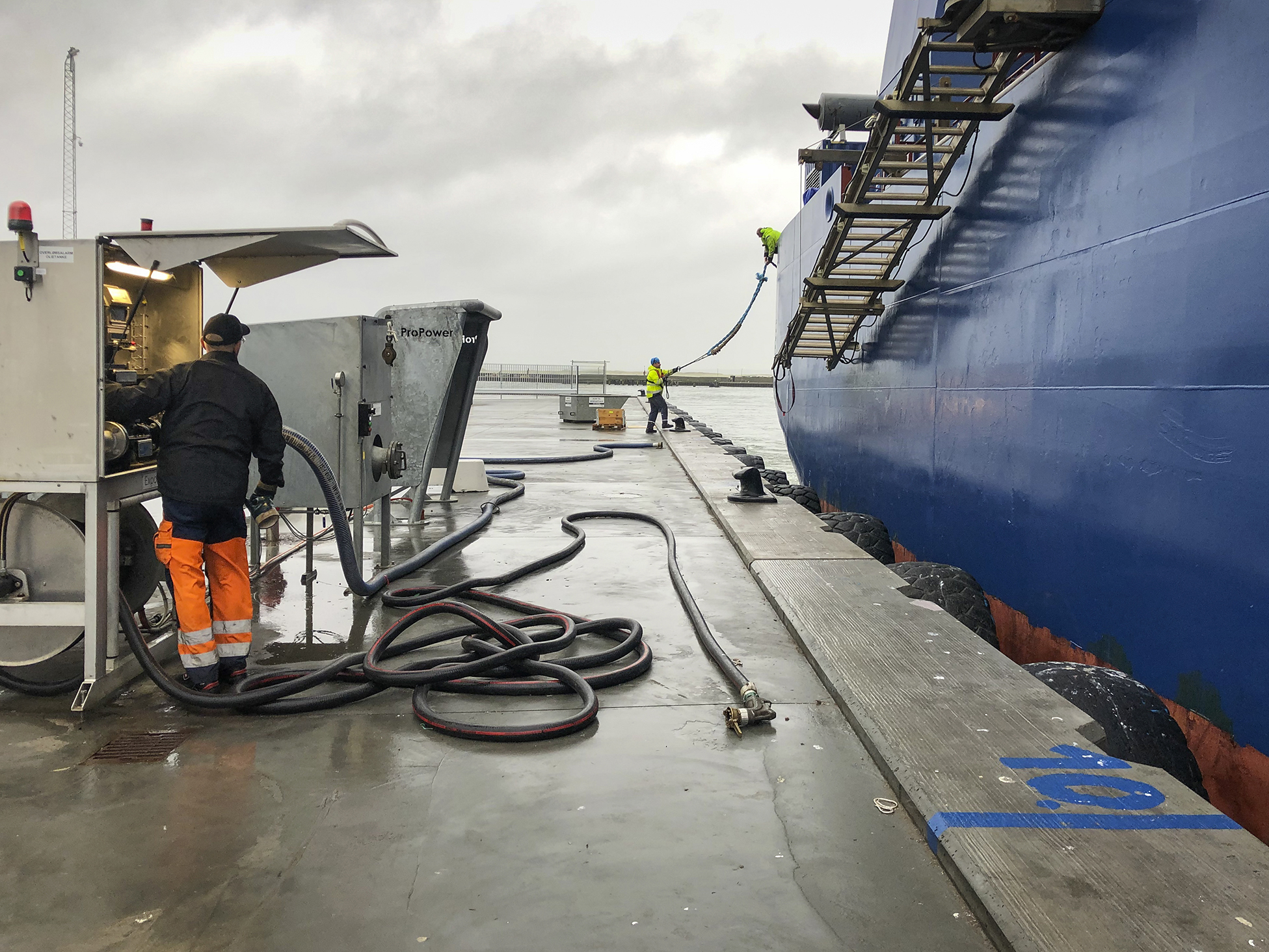

Large vessels needing large quantities of bunker fuel can now refuel efficiently at the Port of Thyboron. In connection with the construction of the new Oliekaj quay at the Port of Thyboron, Nordic Marine Oil A/S installed a high-speed supply facility for ex-pipe bunkering of large vessels. The world’s largest split hopper suction dredger Njord R was the first vessel to refuel at the new facility in Thyboron. The capacity is continuous bunkering at 1,500 l/min until the vessel is filled.

Read more about ex-pipe bunkering

Bunkering Ex Pipe 2654 Web

Unloading liquid bulk cargo

Delivering fuel oil to Nordic Marine Oil’s tank system in Thyboron is now a smooth and simple operation. Previously, the oil had to be discharged in two places – in front of the fishmeal factory TripleNine A/S at the discharging quays, and behind the fishmeal factory on Tobiskaj to supply the entire oil tank installations. During the construction of Oliekaj and the renovation of the quay in front of TripleNine A/S, the entire tank installation has been connected to an extensive network of pipes. This means that it is now possible for Nordic Marine Oil to fill up all its tanks from one and the same place – the new Oliekaj.

This offers more flexibility in the choice of vessels supplying bunker fuel to Thyboron, as the simpler access conditions mean that larger vessels can be used, and today the storing of bunker fuel at the port is a much faster and simpler operation.

Cargo Oil 7124

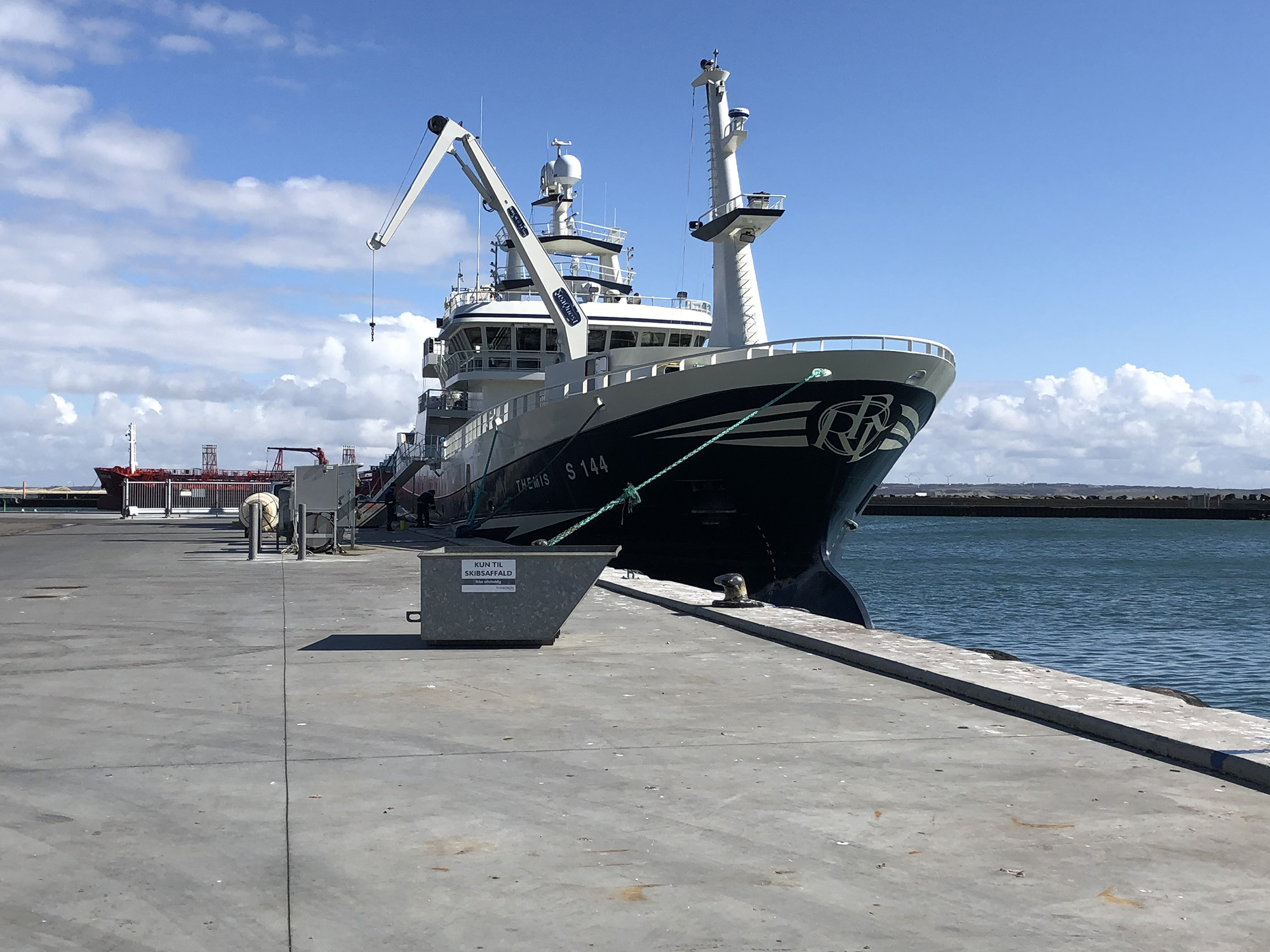

Extra quay capacity for industrial fishermen

Themis Oliekaj 3532 Web2

Safety

The new Oliekaj quay is equipped with yellow HI-VIS Sea-Safe rescue ladders, with LED lights to make them easy to locate in the dark.

And fenders for very large vessels.

Sperlingkaj 15A4529 Web

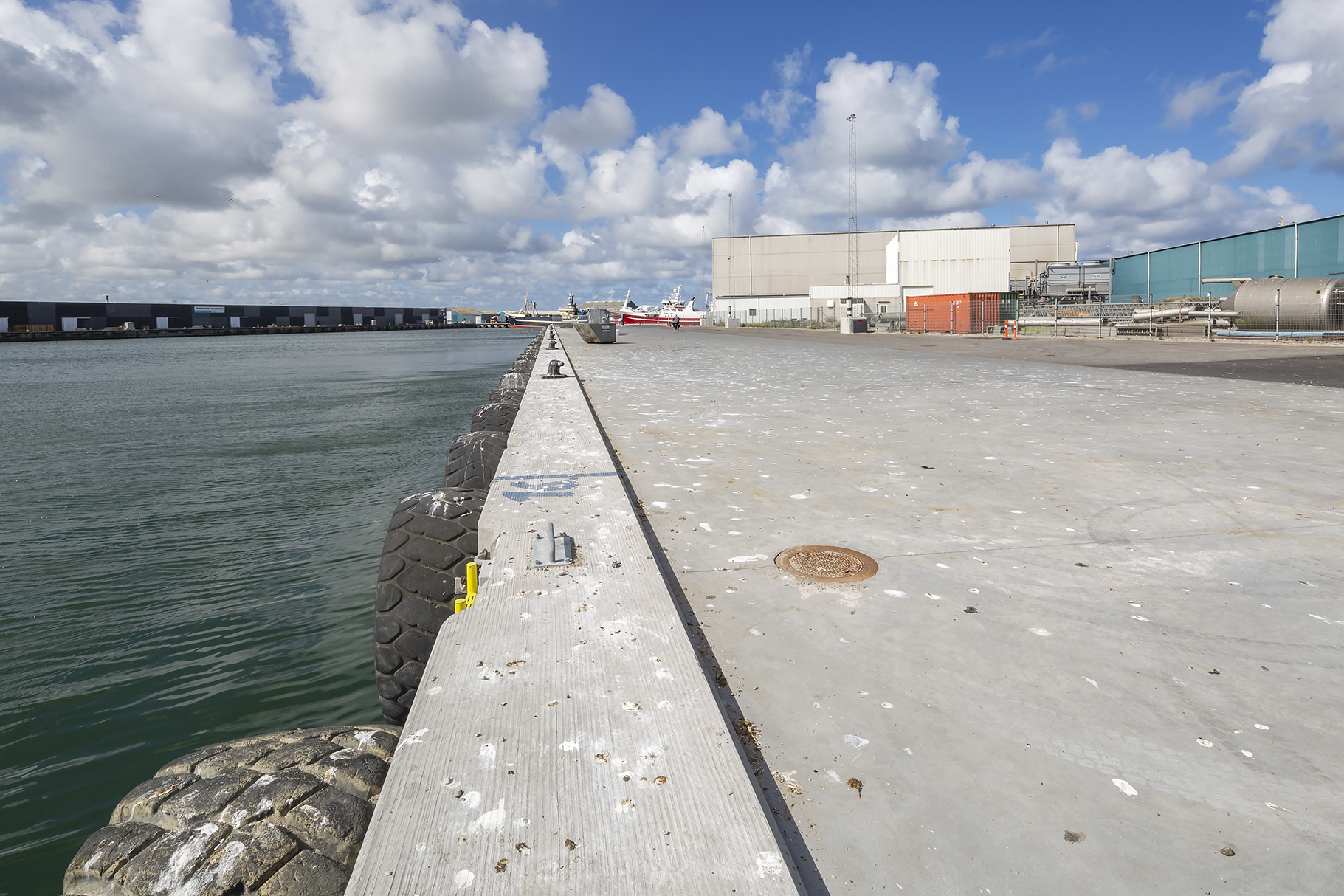

Oliekaj 15A4604 Web

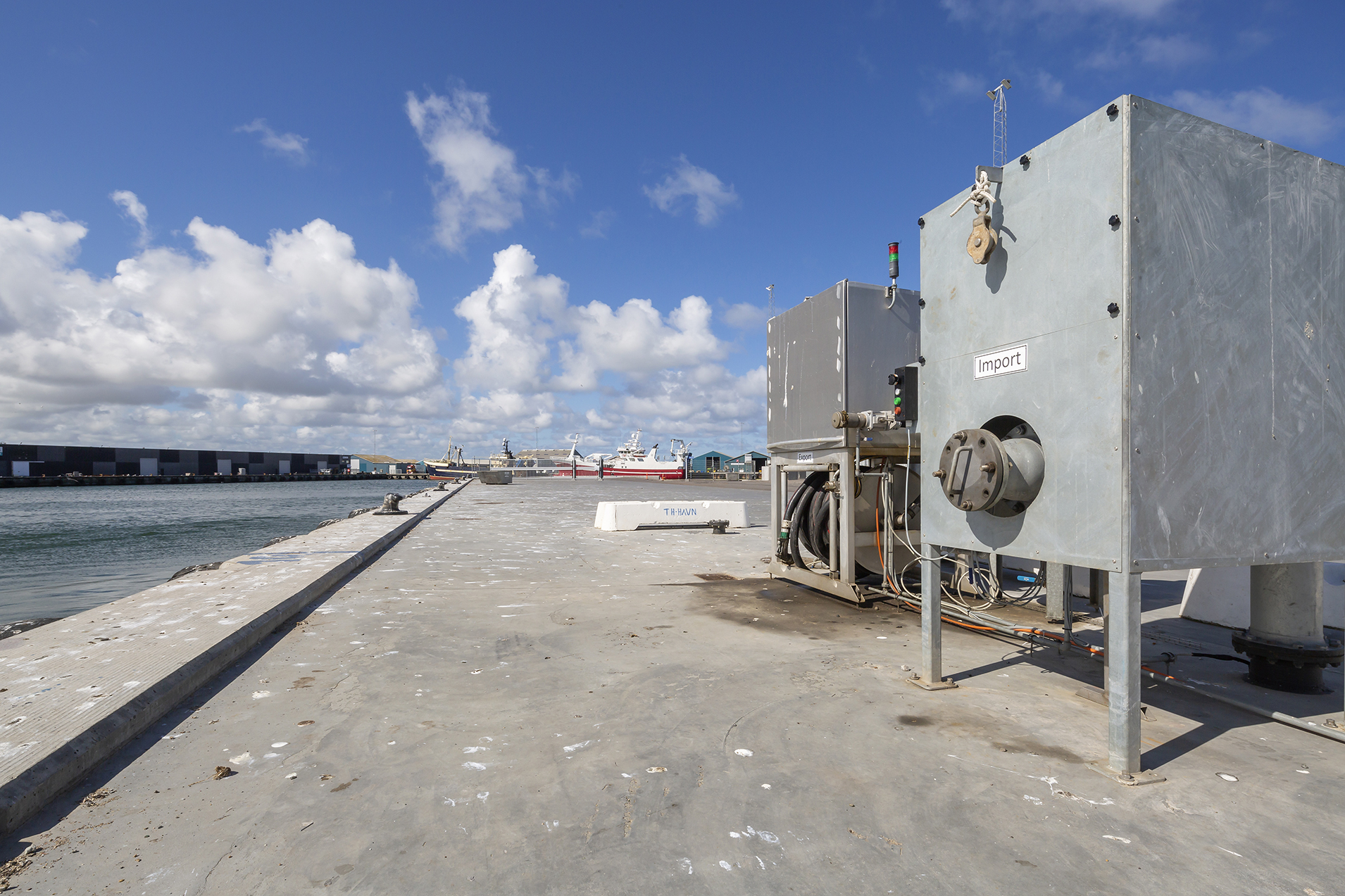

Oliekaj 15A4636 Web

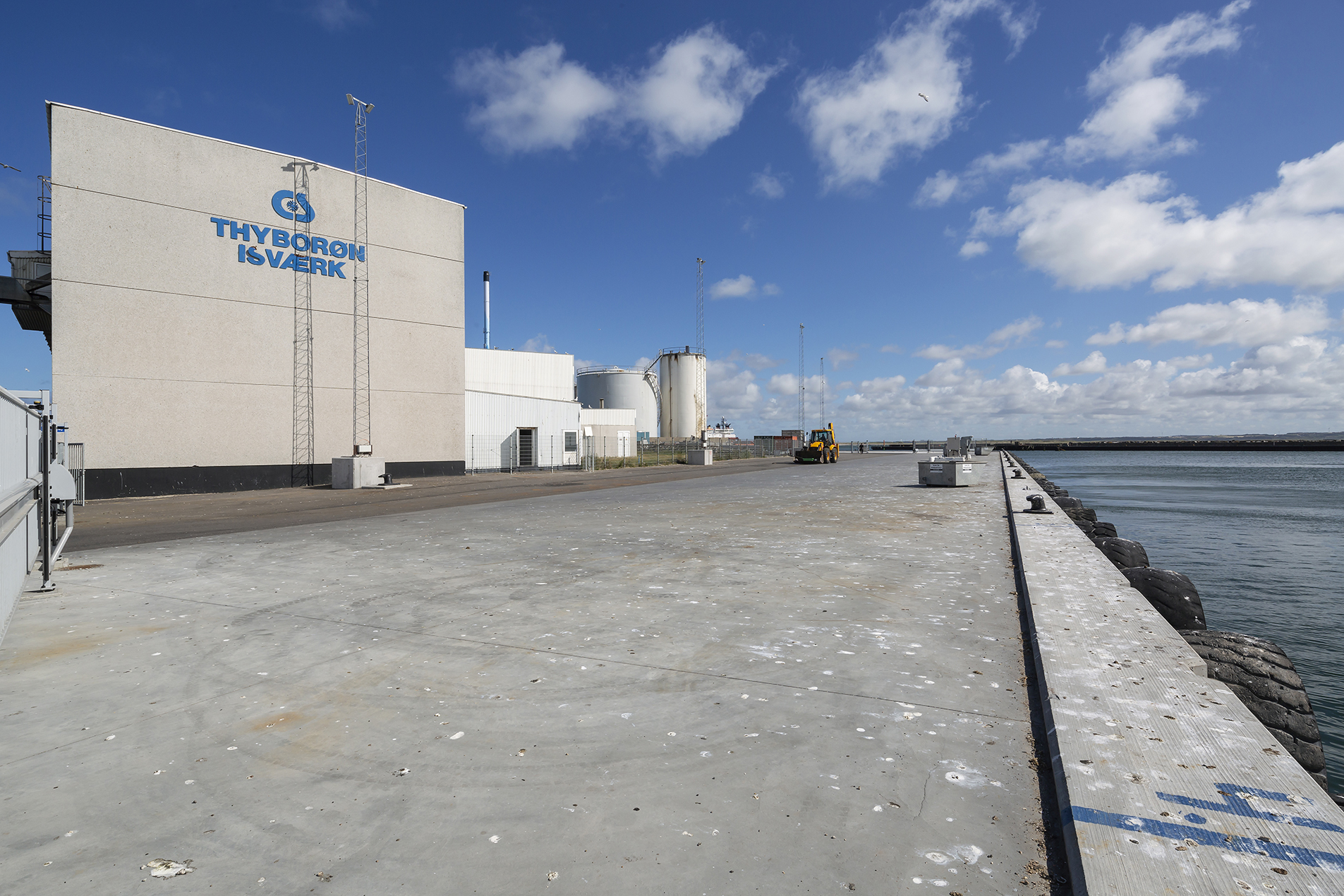

Oliekaj 15A4627 Web
Oliekaj 15A4639 Web

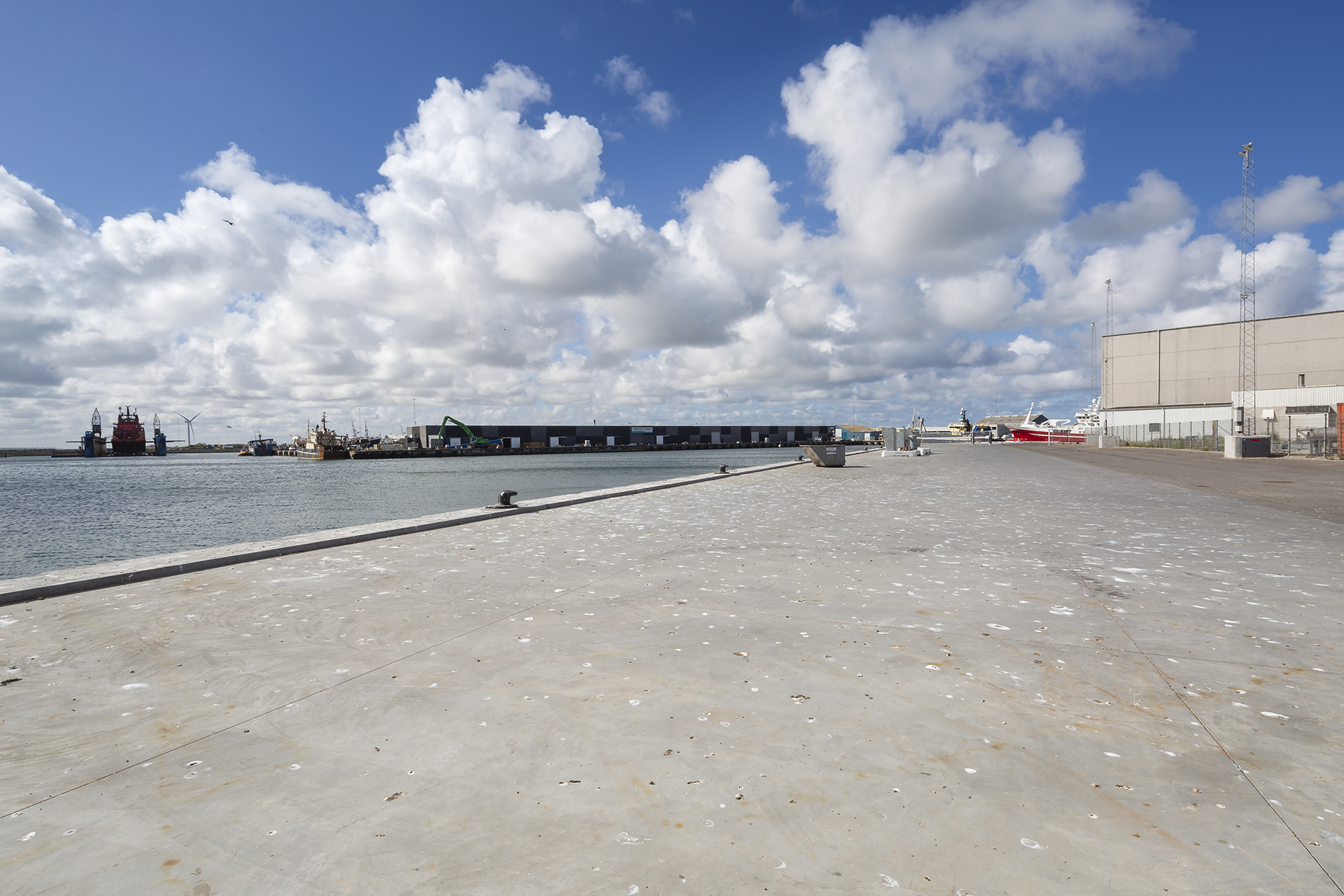

Oliekaj 15A4601 Web
Oliekaj 15A4627 Web

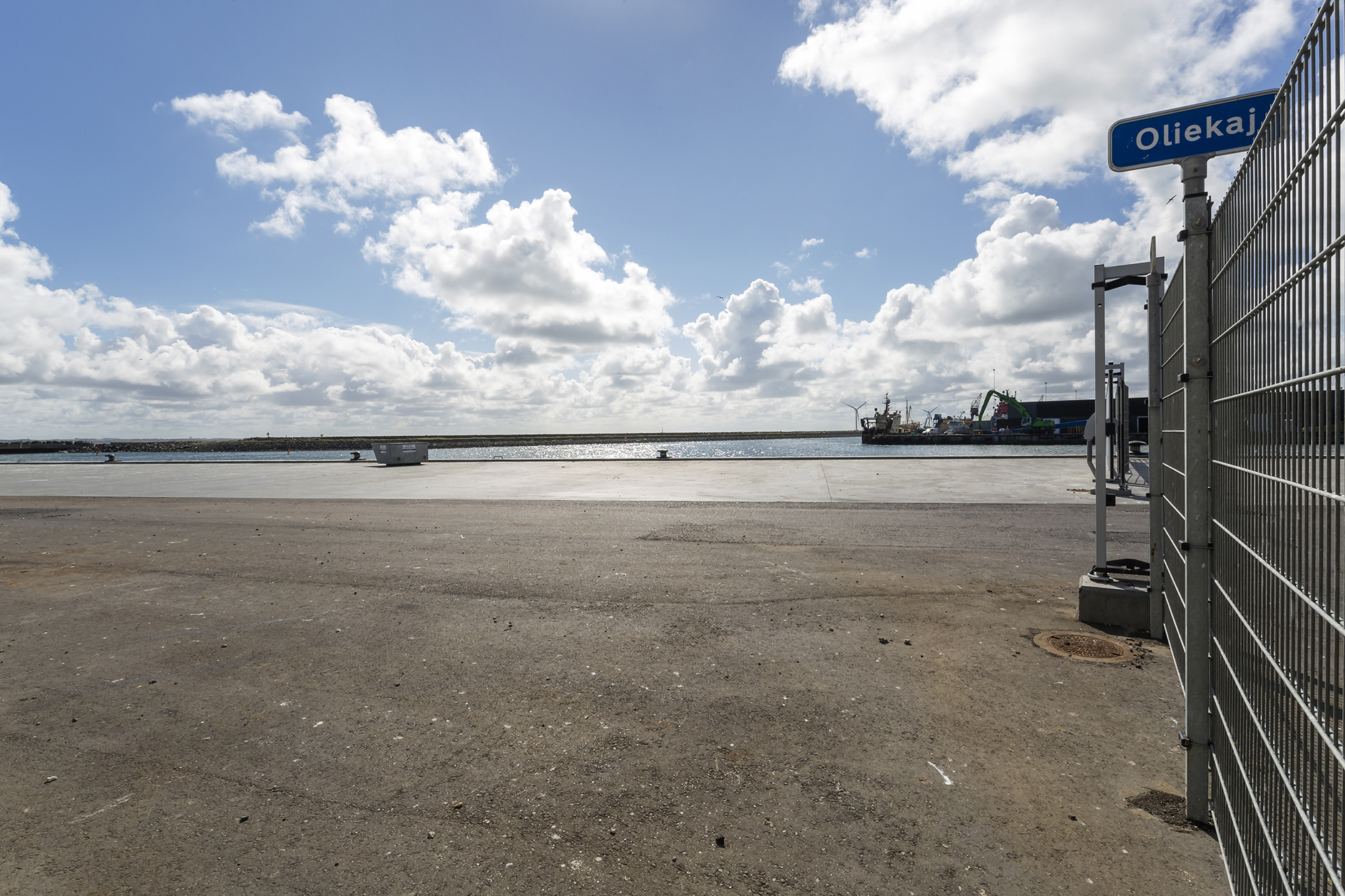

Oliekaj 15A4620 Web

Technical Data - Oliekaj

Berth number

Berth 1
906
Berth 2
907

Navigation

Water depth, m
9
Port entrance corridor, m
75,8

Quay facility specifications

Dimensions

Quay length, m
130
Quay width, m
14
Quay wall in m
2,15

Capacity

Bearing capacity, t per m2
2
Point load, t
55
Outrigger pressure at 1X1 m plate, t
55
Outrigger pressure at 1X1 m plate, 1 m from quayside, t
35
Outrigger pressure at 2X2 m plate, t
65
Outrigger pressure at 2X2 m plate, 2 m from quayside, t
45
Axle load, t
70

Type

ISPS
Surface type quay, concrete
Capping beam type, concrete
Quay type, Sheet pile wall

History

Construction year
2020

Service

Accessibility for maritime service
Accessible for cranes

Quay equipment

Safety

Safety ladders, quantity
6
Safety ladders, type SeaSafe with LED lights
Distance between safety ladders, m
26
Safety point, quantity
2

Supplies

Power supplies
Power stations on quay
1
Power connection point, 125 amp
Power connection point, 63 amp
Power connection point, 32 amp
Water supplies at quay
Water hydrants on quay
1
Water feed capacity, tons or m3 per hour
Bunkering at quay
Bunkering at quay from tank
Bunkering from barge
Ex-pipe bunkering
Bunkering capacity l/min
1500

Maritime equipment

Fender type
29-5
Fenders diametre, m
1,8
Fenders width, m
0,8
Distance between fenders, m
0,9
Bollard, quantity
12
Bollard type, bean
X-6-A-F
Bollard swl, capacity, t
30 - 50
Distance between bollard, m
14

Environment

Waste disposal
Slopoil disposal
Wi-Fi, fiber connection

Service

Accessibility for maritime service
Accessible for cranes

Hinterland at the quayside

Dimensions

Onshore area at quayside, m2
2900
Concrete-surfaced felt areas, m
1800
Bunkering Ex Pipe 2620 Web

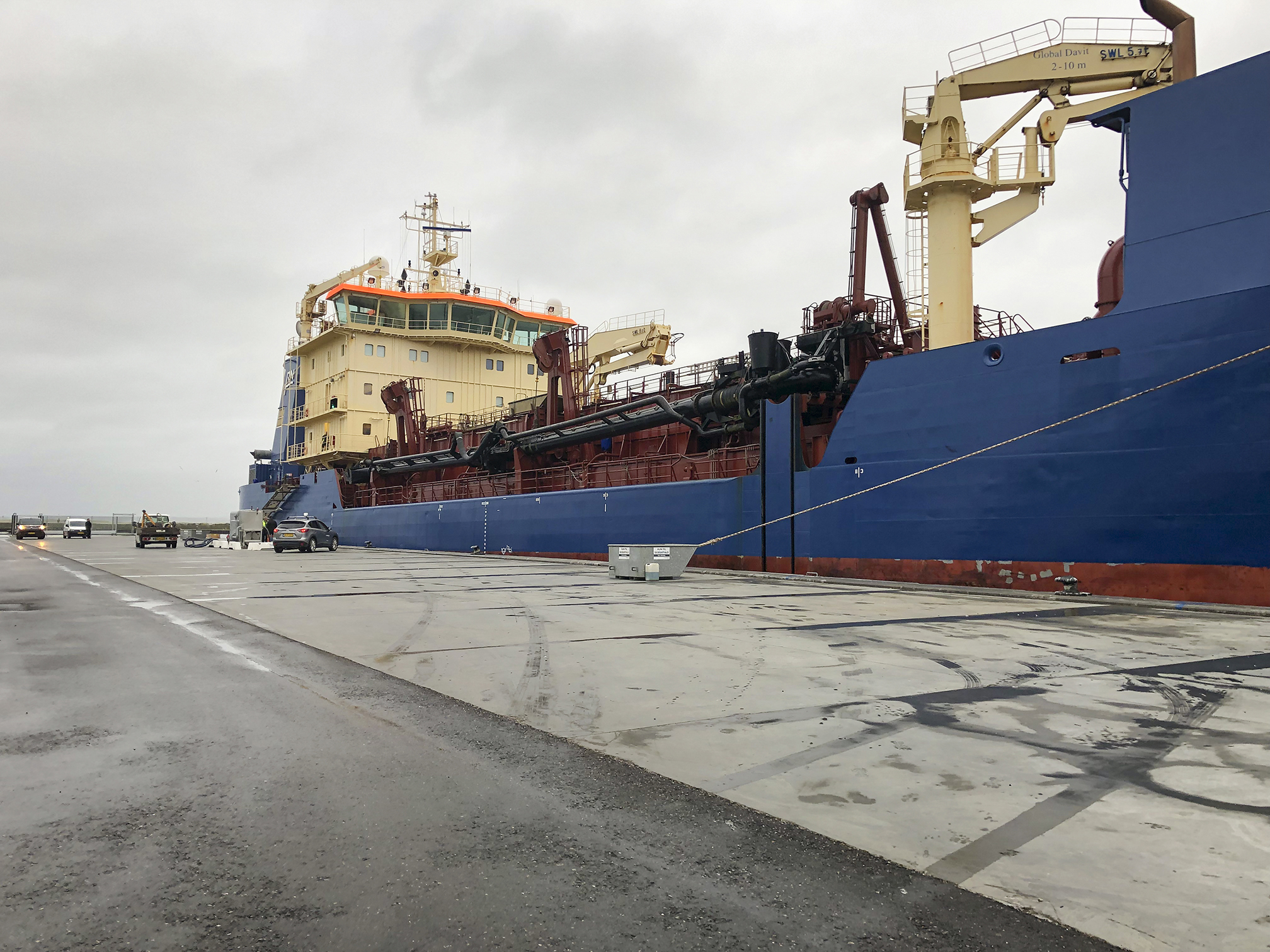

Njord R berthed at Oliekaj

Cargo Oil 2907 Web

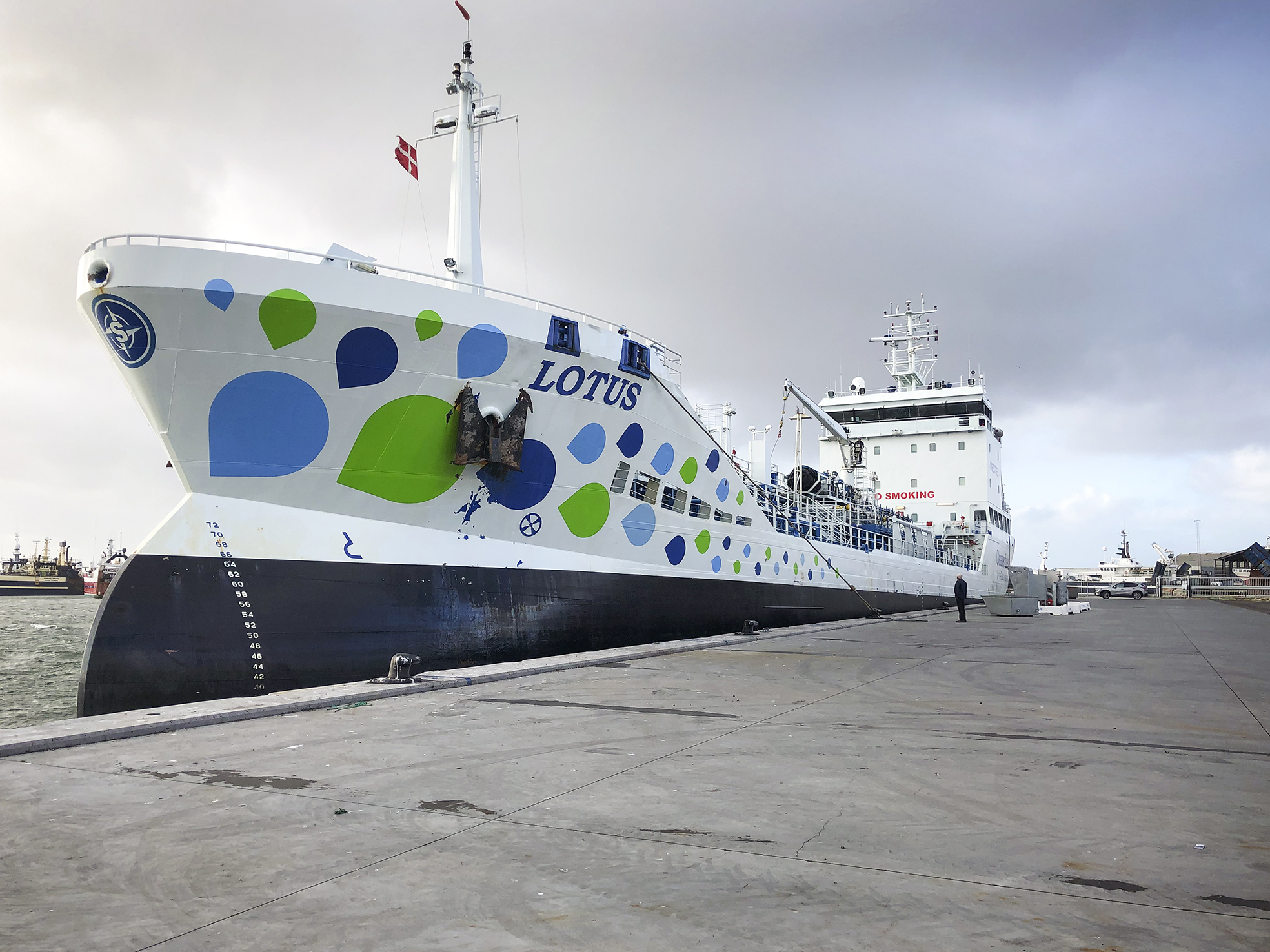

Lotus berthed at Oliekaj

Deep Helder 1667 Web

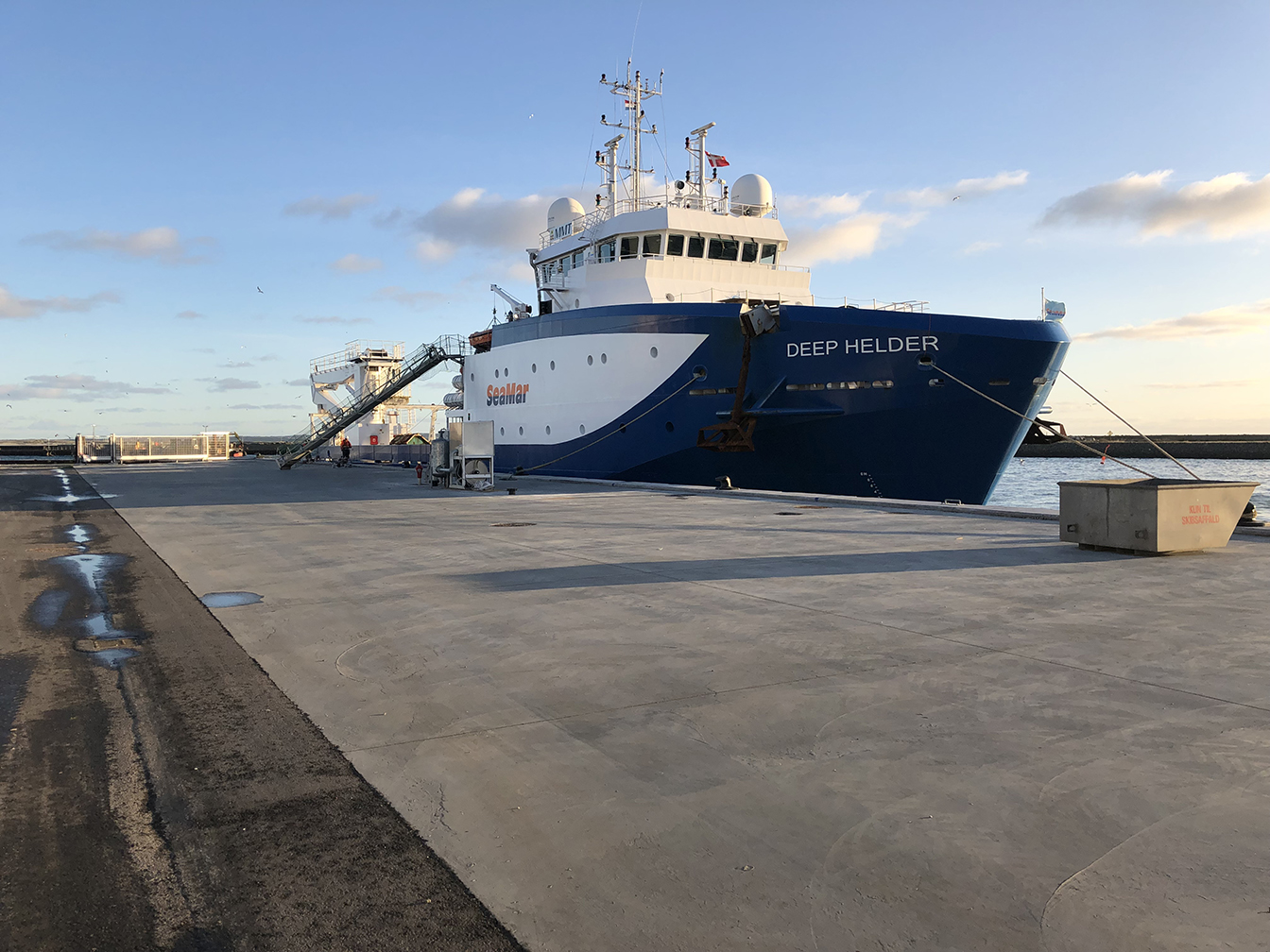

Deep Helder berthed at Oliekaj
