Nordsøkaj - DKTYB-0030 (1022, 1023)
Quay 900, 901, 1021, 1022, 1023

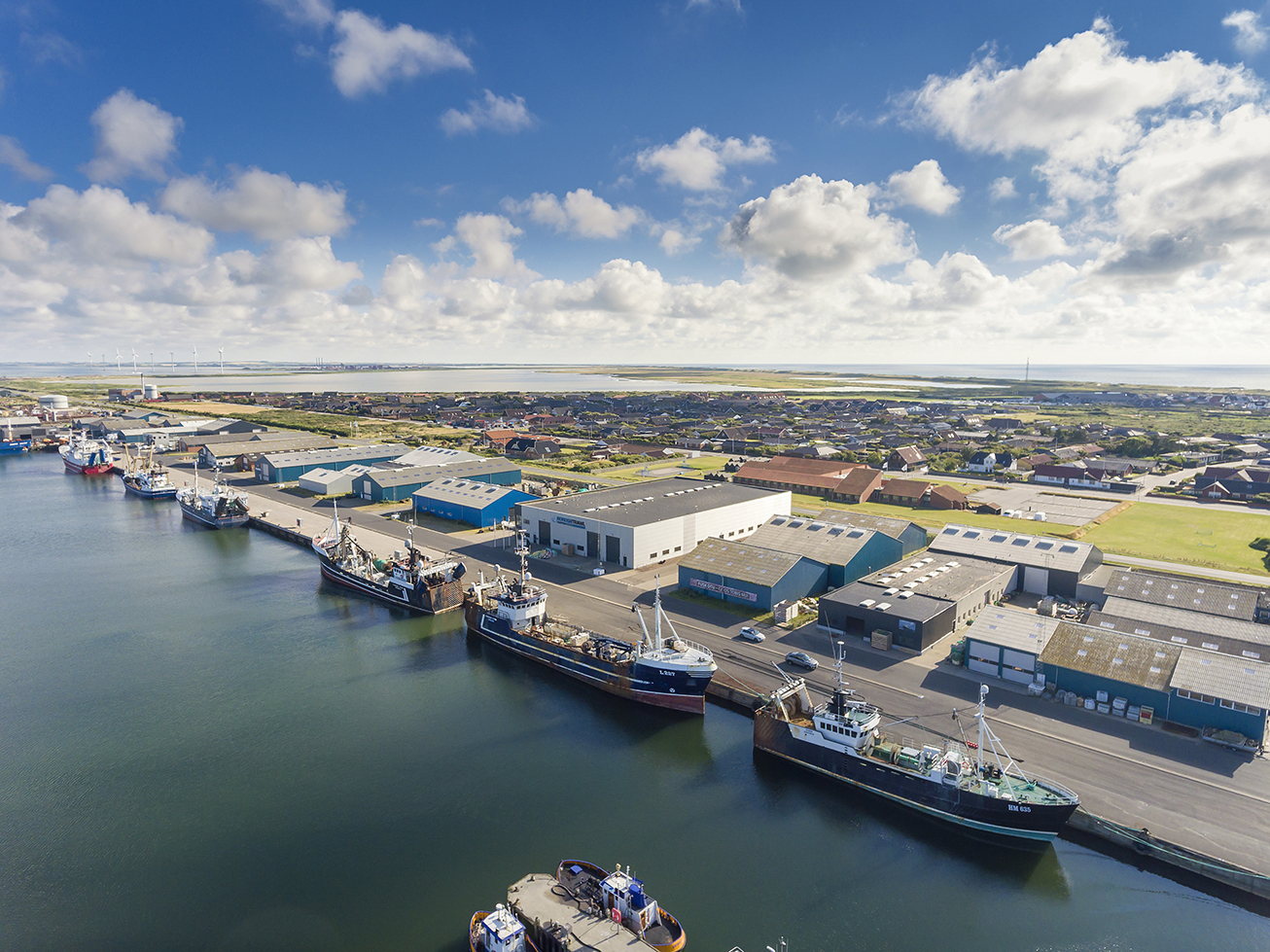

The Nordsøkaj quay has room for both offshore SOVs and pelagic fishing vessels
The Nordsøkaj quay specialises in maritime services for offshore supply vessels and large fishing vessels. The 400-meter-long quay offers ample space, and the long concrete area parallel to the quay is designed to accommodate heavy crane lifting.
SOVs and fishing vessels can undergo maintenance and repairs here, with sufficient space available to work efficiently without disruption along the quay. The quay is ideal for crew changes and provisioning and can also be used as a layover quay for SOVs and fishing vessels.
There is easy access to supplies along the entire quay, and to ship waste and slop oil disposal. The quay is also located near the city and at the feet of major maritime service companies such as Cosmos Trawl, Egersund and Vest-EL.
Today 220 m ISPS-secured quay
The Nordsøkaj quay is a multifunctional quay serving offshore supply vessels, SOVs (Service Operation Vessels), and pelagic fishing vessels. The southernmost 220 meters of the quay with 8.8 m water depth are ISPS-secured for vessels over 500 GT.

Long quay with plenty of space
There is lots of space on the 400-metre-long Nordsøkaj. Barges, offshore supply vessels and pelagic fishing vessels can berth safely here. There is also easy access to maritime services at the quay.

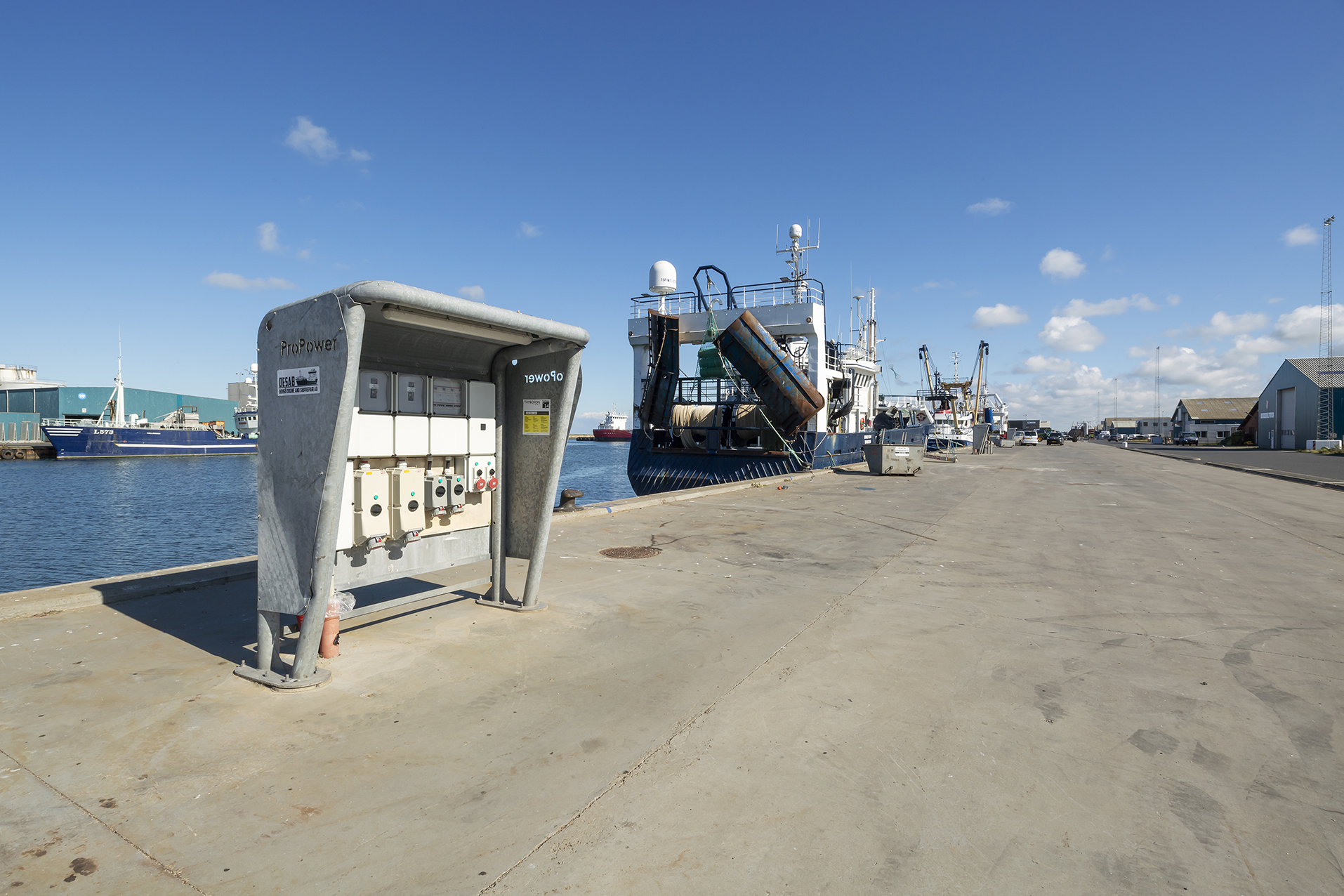

Easy access to power supplies
You can operate the power stands at the Port of Thyboron yourself as soon as you have registered as a user. There is power to suit different needs, with capacities of up to 125 amps.
El forsyning
Concrete for heavy lifting and undisrupted work
Nordsøkaj has a strong concrete section on the quay for maritime services and ship repair. Cranes can lift heavy winches and ship engines on board from this area if the fishing vessel needs these changed. There is ample space for work on the concrete area, and the separation from the asphalt road ensures that work can be done without disruption while cars, forklifts and trucks pass by.

Maritime service companies along the quay
You will find experts in trawl making and electronics on Nordsøkaj at the Port of Thyboron. Electronics companies with more than 45 years of experience and world-leading trawl manufacturers, seine makers and trawl shovel manufacturers are based here.
Lokale services til fiskeriet

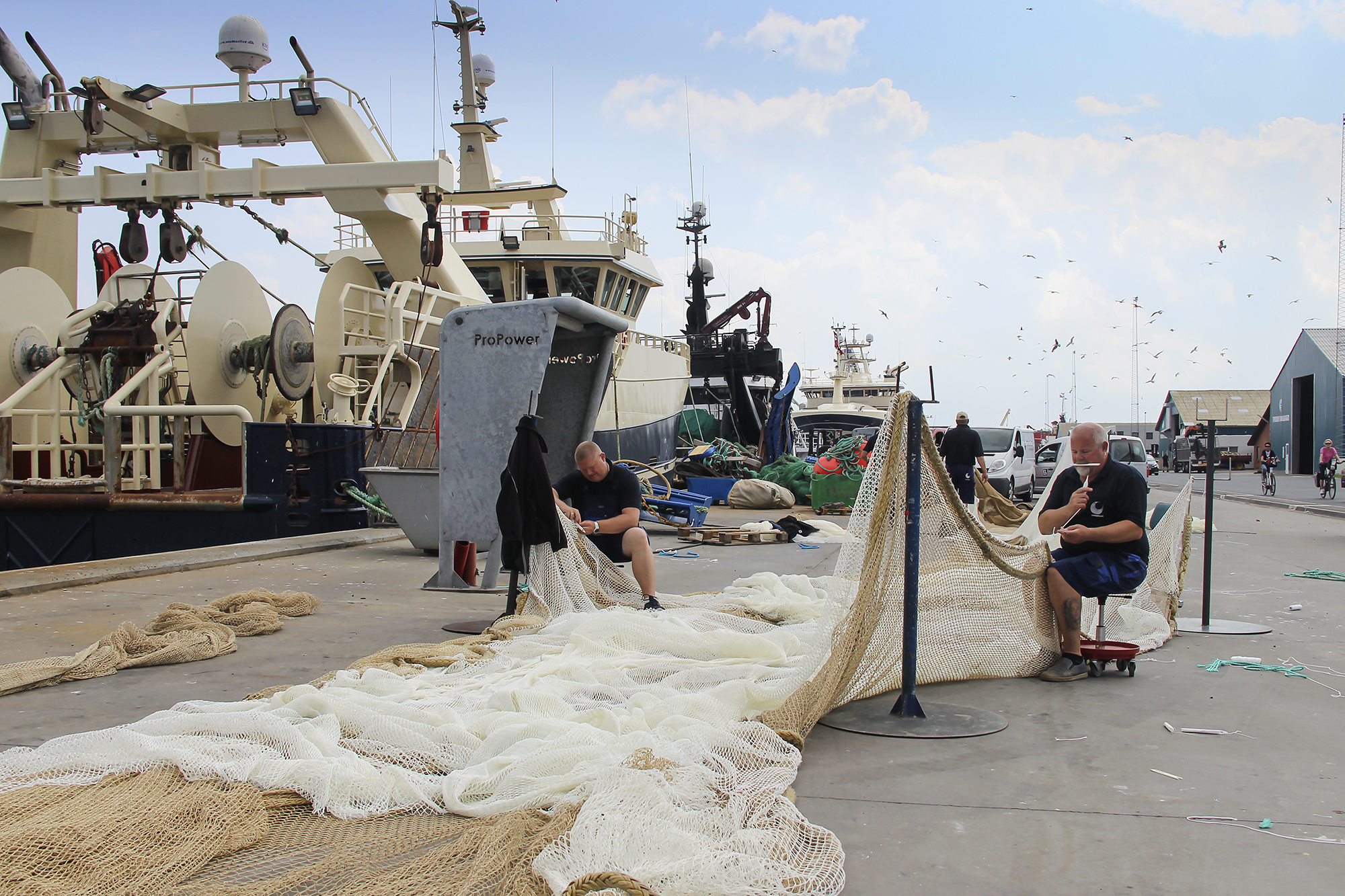

Trawl-stretching facilities on Nordsøkaj
Having a berth where the trawl can be inspected while the fishing vessel is in port makes a big difference, especially in the early summer months when industrial fishing is at its peak.
When fishing equipment has suffered damage, a rapid response from skilled seine and net makers can make a big difference. And they are based right on Nordsøkaj.

Technical Data - Nordsøkaj
Berth number
- Berth 1
- 900
- Berth 2
- 901*
- Berth 3
- 1021
- Berth 4
- 1022
- Berth 5
- 1023
Navigation
- Water depth, m, (LAT)
- 8,8
- Water depth, berth 1021 - 1023, m, (LAT)
- 8,8
- Water depth, berth 901 (150 m length), m, (LAT)
- 4,8
- Port entrance corridor, m
- 75,8
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 400
- Quay length, berth 1021-1023
- 340
- Quay length, berth 901, m
- 60
- Quay width, m
- 15
- Quay wall, berth 1021-1023, m
- 2,15
- Quay wall, berth 901, m
- 1,7
- Capping beam width, m
- 0,7
Capacity
- Bearing capacity, t per sqm
- 2
- Bearing capacity, Berth 901, t per sqm
- 0,5
- Distributet pressure, t per sqm
- 2
- Distributet pressure, Berth 901, t per sqm
- 0,5
- Outrigger pressure at 2X2 m plate, t
- 40
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 80
- Outrigger pressure at 4X2 m plate, t
- 80
- Axle load, t
- 12
Type
- Quay type, Sheet pile wall
- ✓
- ISPS
- ✓
- Surface type quay, concrete
- ✓
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
Service
- Accessible for cranes
- ✓
- Accessibility for maritime service
- ✓
History
- Construction year
- 1975 / 2006 / 2015
Quay equipment
Supplies
- Power supplies
- ✓
- Power stations on quay
- 8
- Power connection point, 125 amp
- ✓
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Wi-Fi, fiber connection
- ✓
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 70-80
Safety
- Safety ladders, quantity
- 17
- Safety ladders, type Galvinized Steel
- ✓
- Distance between safety ladders, m
- 20
- Safety point, quantity
- 3
Maritime equipment
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,55
- Distance between fenders, m
- 4
- Bollard, quantity
- 16
- Bollard type, bean
- ✓
- Bollard swl, capacity, t
- 20
- Bollard swl, capacity, Berth 901, t
- 10
- Distance between bollard, m
- 13
- Bollard for pull test, numbers
- 1
- Bollard for pull test, t
- 45
Environment
- Slopoil disposal
- ✓
- Waste disposal
- ✓
- LED lighting, numbers
- 12

Christening and naming Pia Glanz

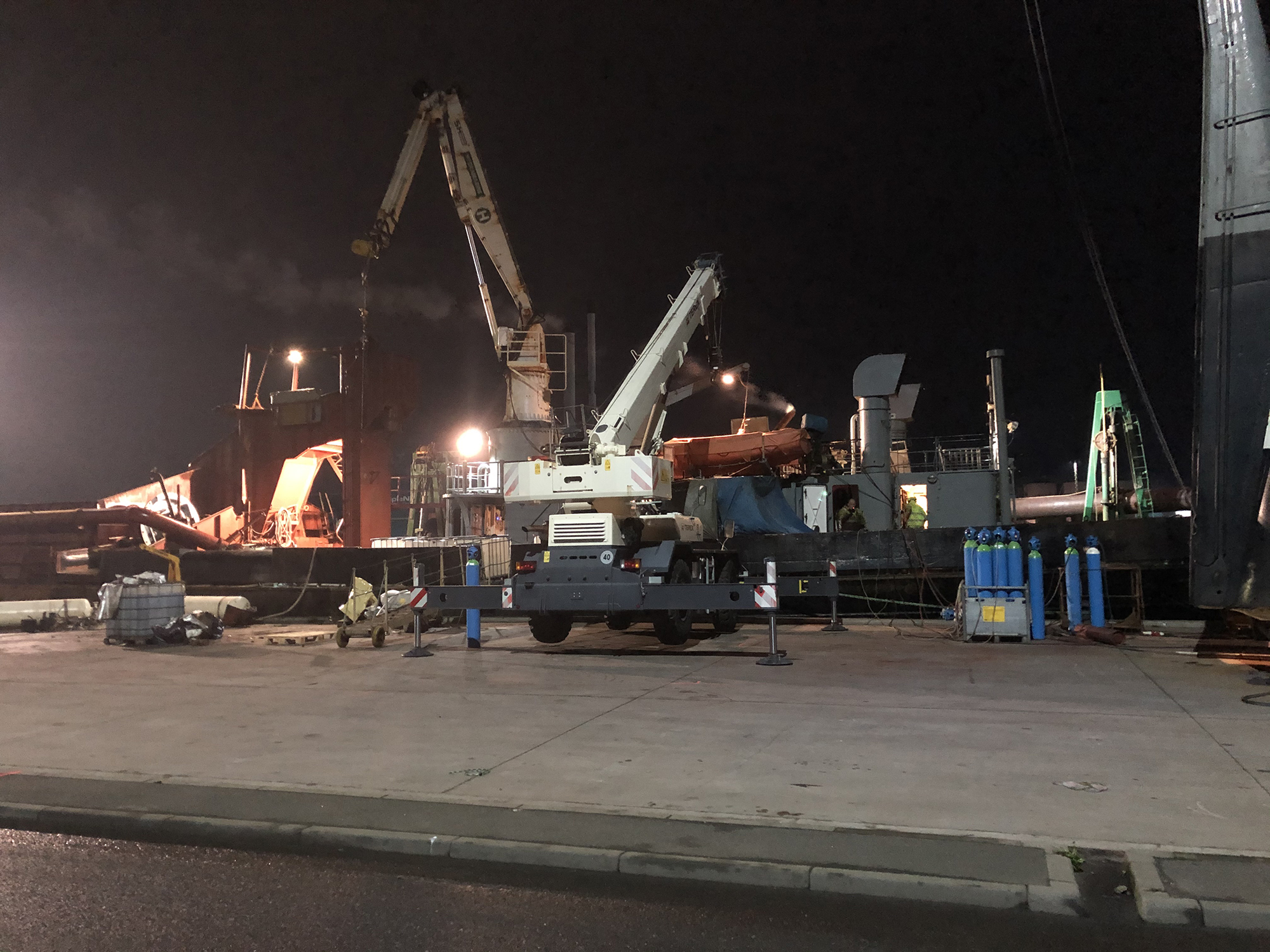

Terex crane in action on the strong concrete section

Gitte Henning in port
