Limfjordskaj lll - DKTYB-0003

Quay 2015, 2016

New cargo terminal in Sydhavnen operational

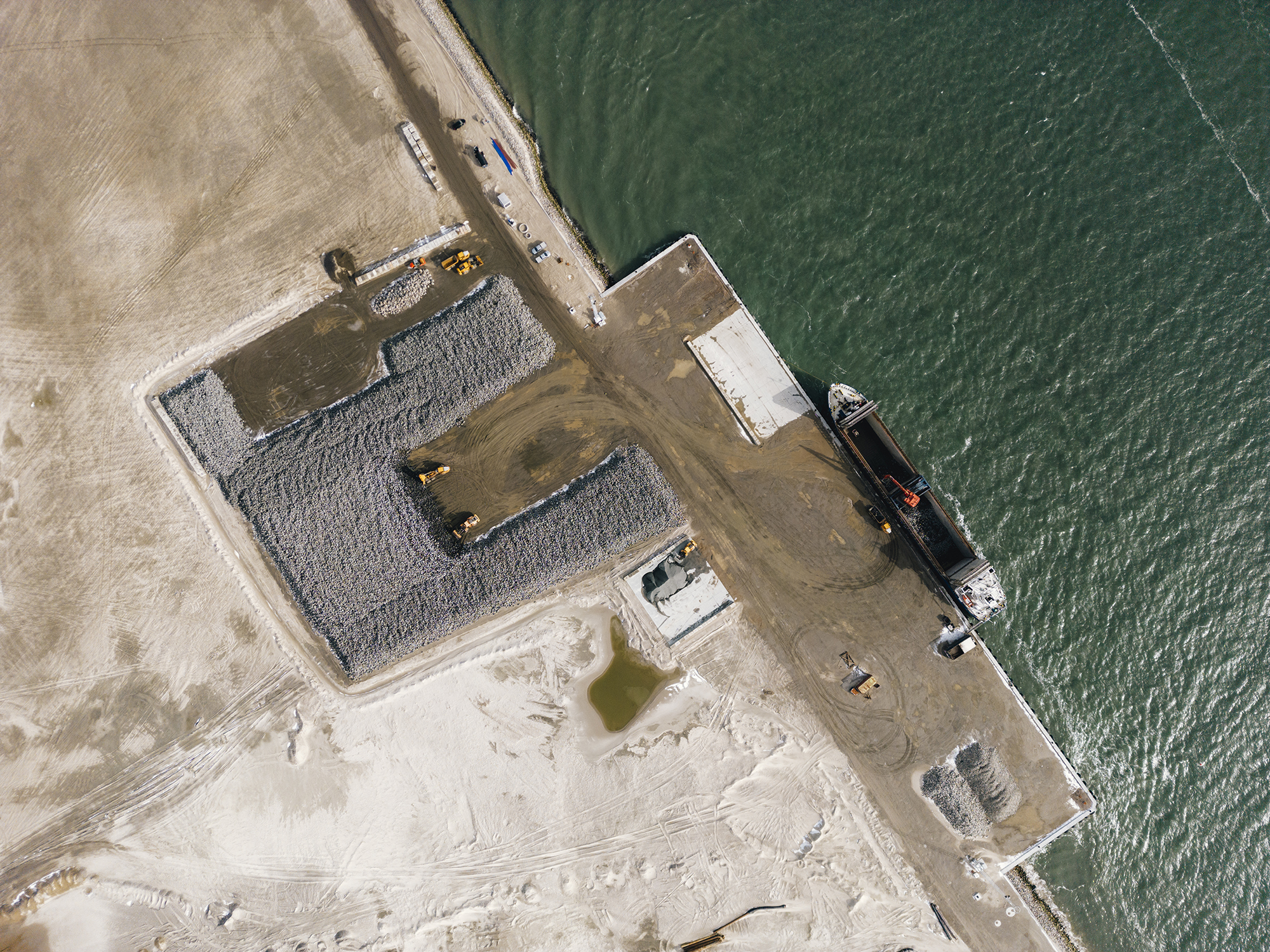

The new Limfjordskaj III quay is now fully operational. The final dredging is completed the quay has now a water depth of 10 m.

With the construction of Limfjordskaj III, the Port of Thyboron has added 220 extra quay metres to its capacity for the cargo segment, along with a new 170,000 m2 area of adjacent land for cargo handling.

The quay is ideal for bulk cargo, with easy access to the main road from the quay and ample space for safe truck manoeuvres.

It offers ample space for the cargo sector to establish efficient logistics solutions, such as bulk cargo sheds, tank systems, outdoor storage bays, etc., at a location on the doorstep to the North Sea.

The new port area also doubles the port’s capacity for storing project cargo, such as for offshore wind farms in the North Sea, from 150,000 to 300 000 m2.

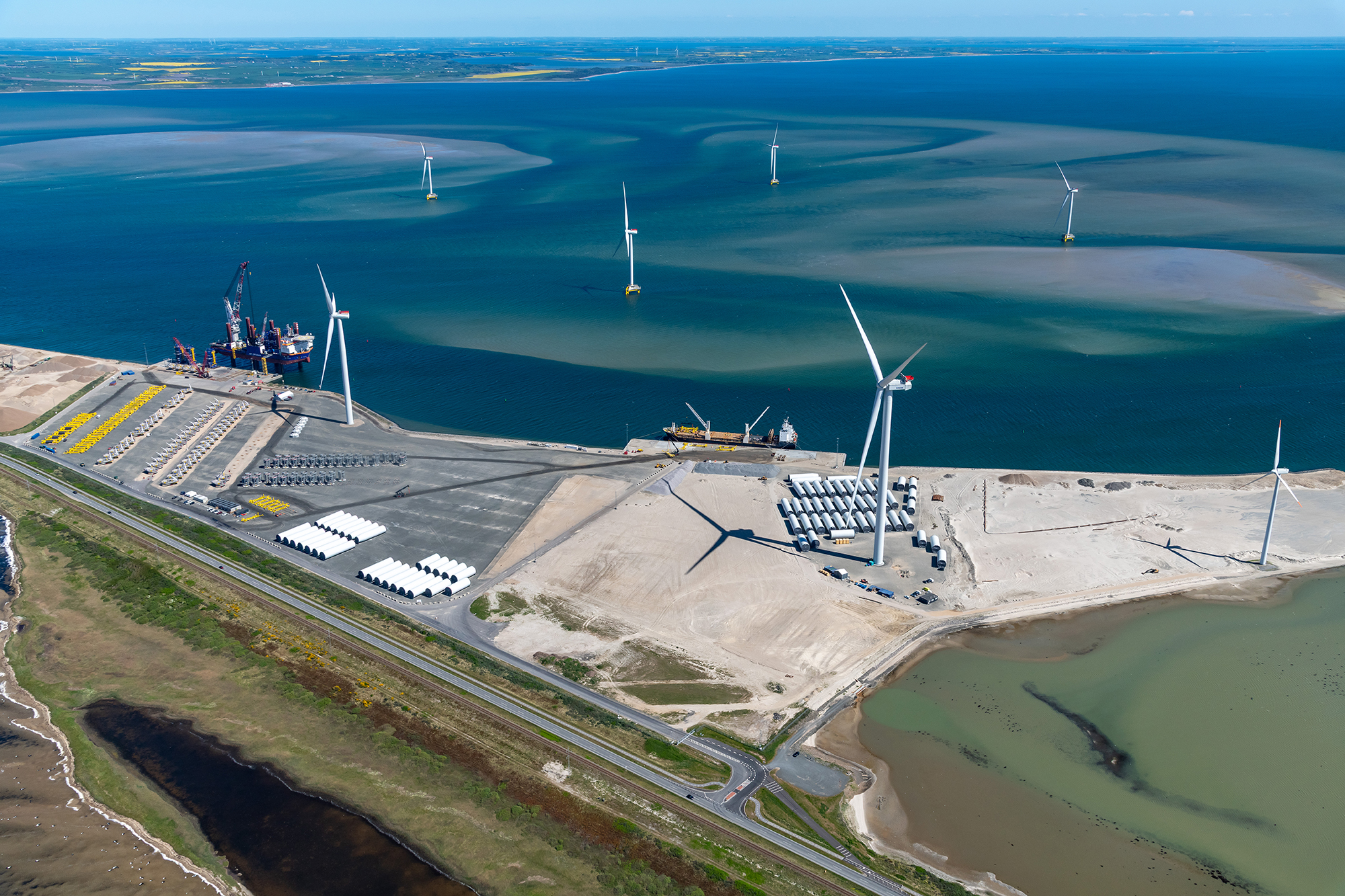

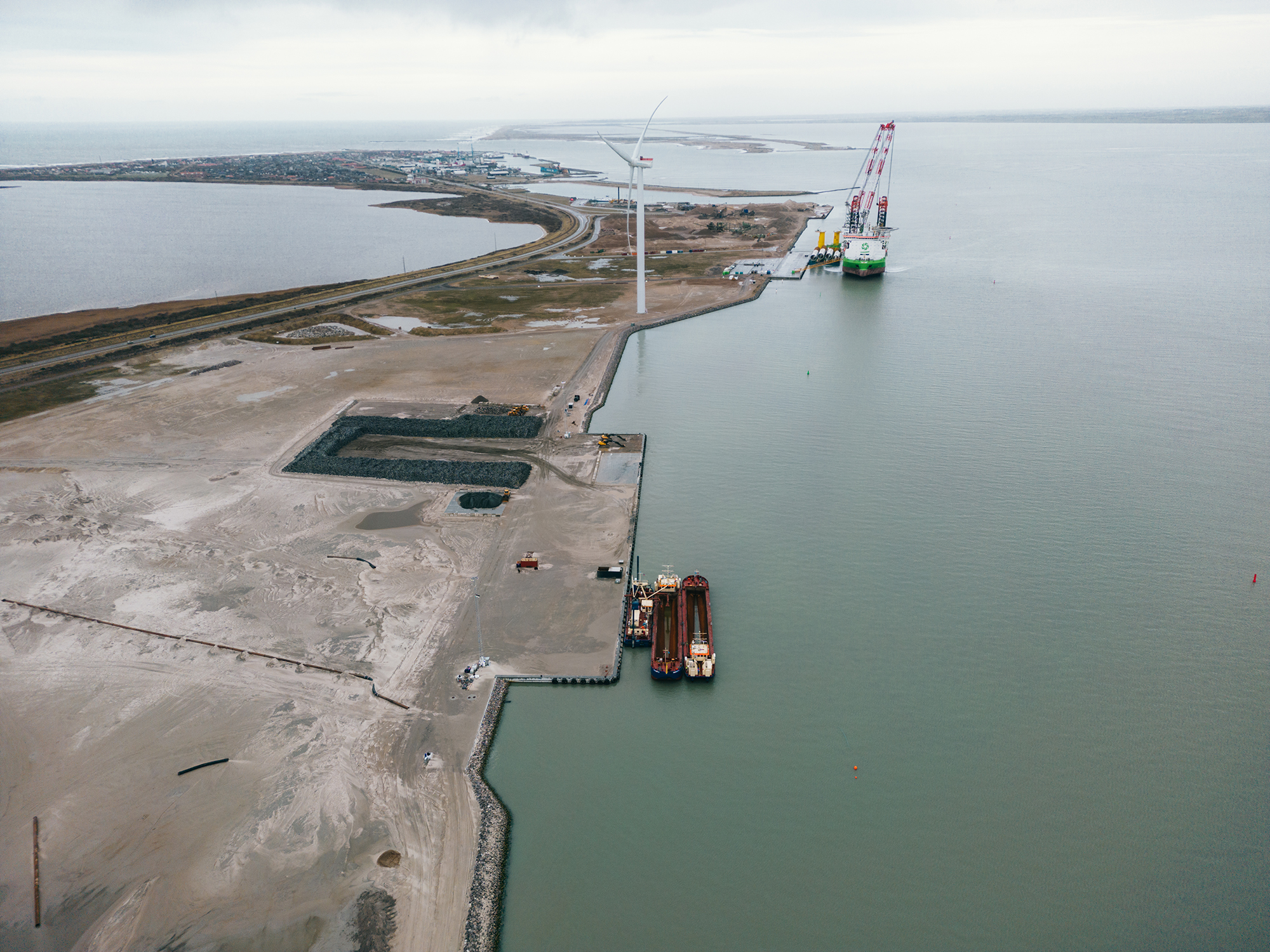

Just 200 metres from quay to main road

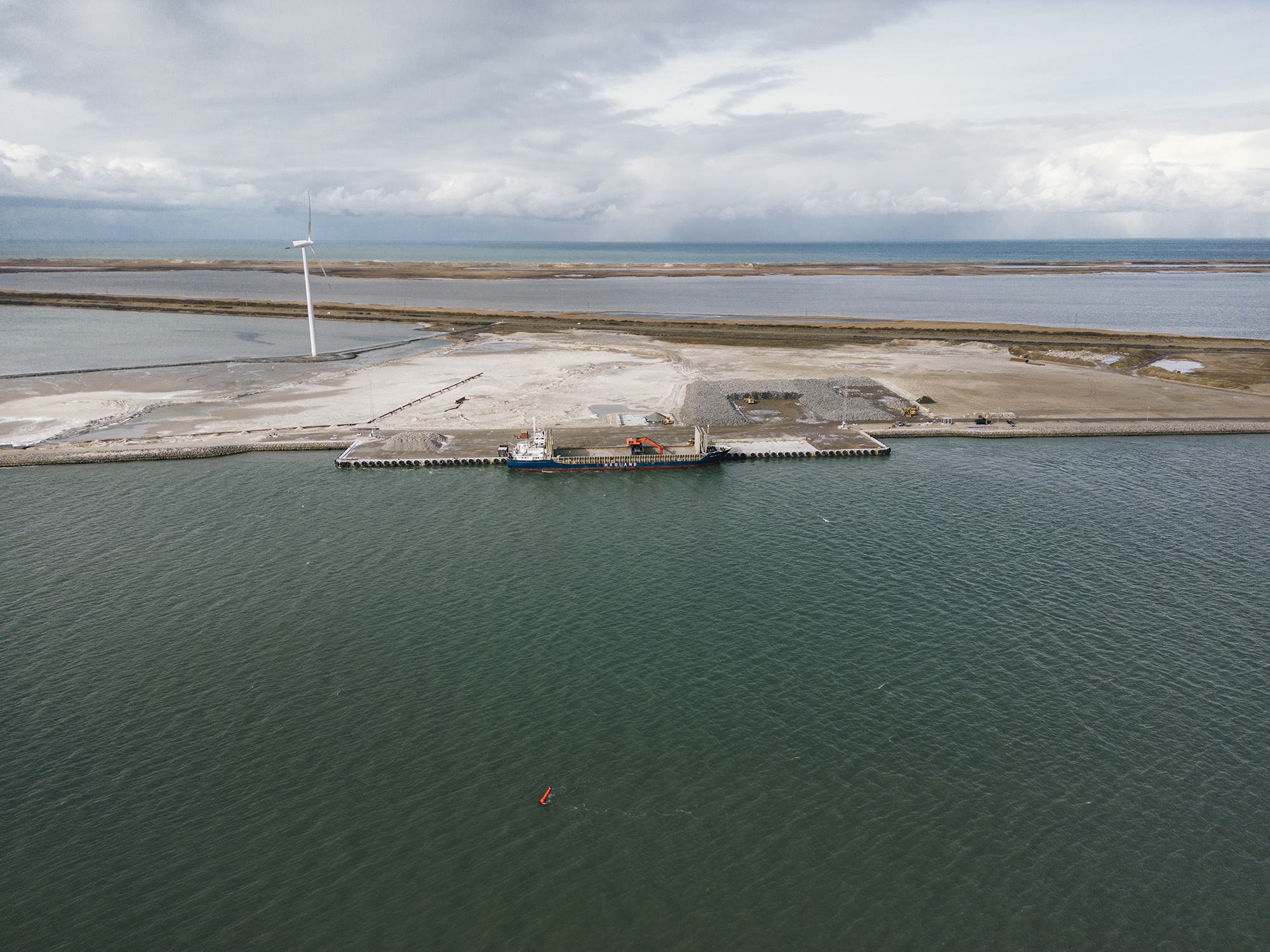

The Port of Thyboron extends parallel to the main road. The port is being expanded in a direction away from the town centre, along the main road towards the south. The new Limfjordskaj III is situated very close to the main road and furthest away from the town. Trucks have ample room to manoeuvre right up to cargo vessels and quick access to the road network, without having to pass through town.

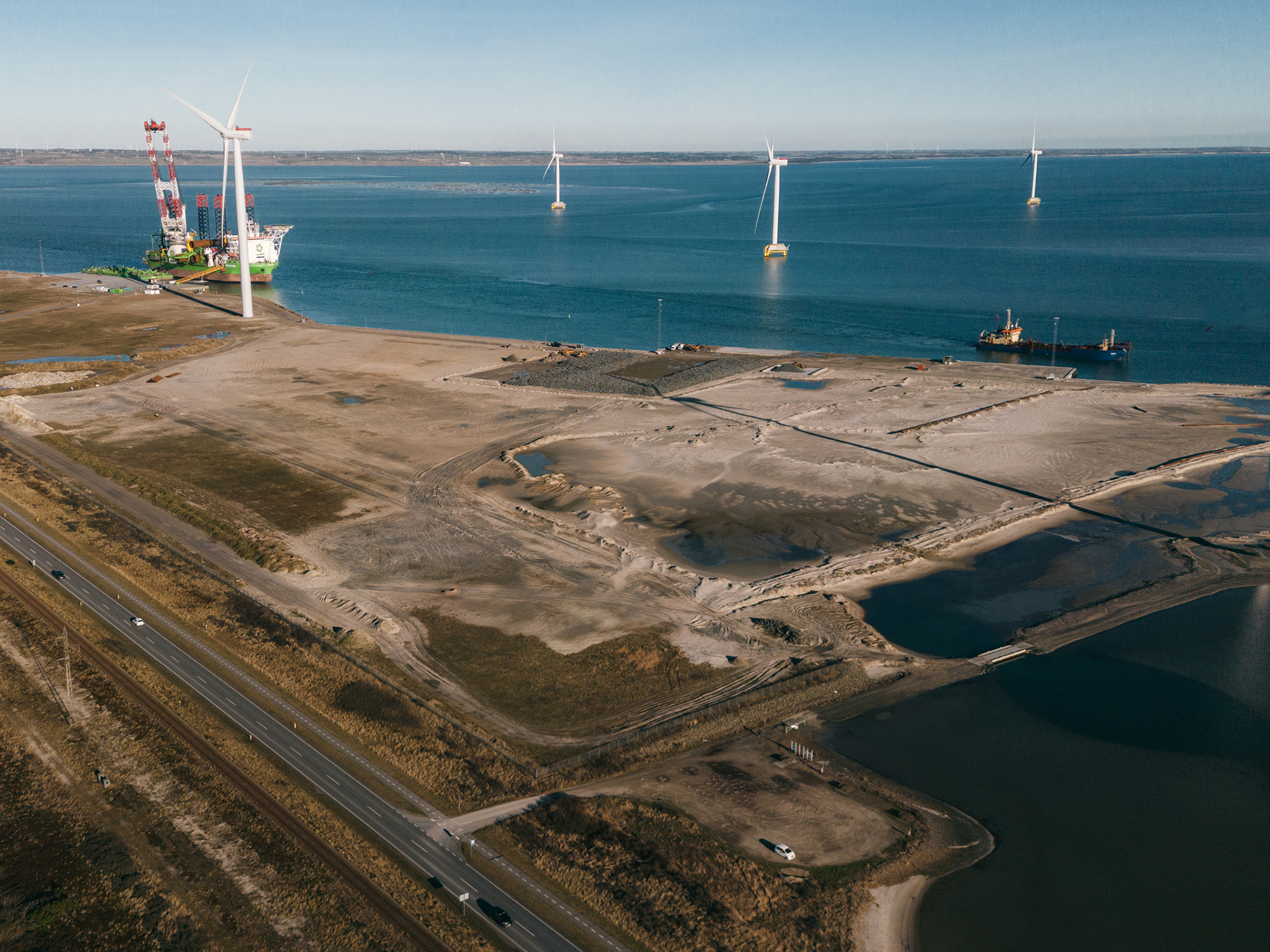

Limfjordskaj III DJI 0324 Web

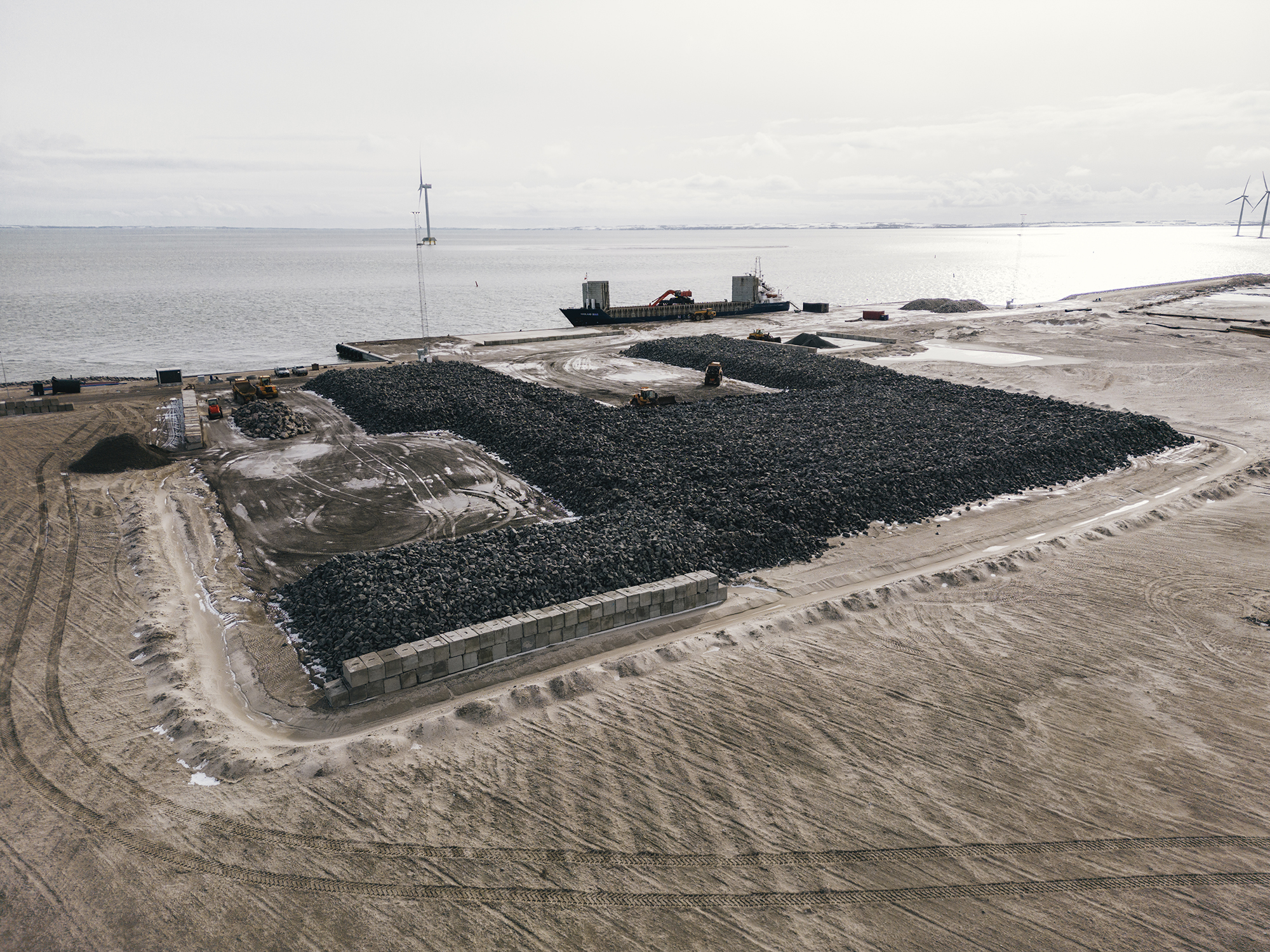

Dedicated terminal for cargo handling

Limfjordskaj III is a newly built quay that will become operational in stages during 2023. The new quay, together with 170,000 m2 of quayside land makes up a dedicated terminal suitable for handling all types of bulk cargo. There is ample room for tank systems with direct pipes to the quay and bulk cargo sheds for the temporary storage of cargo before shipment or after unloading.

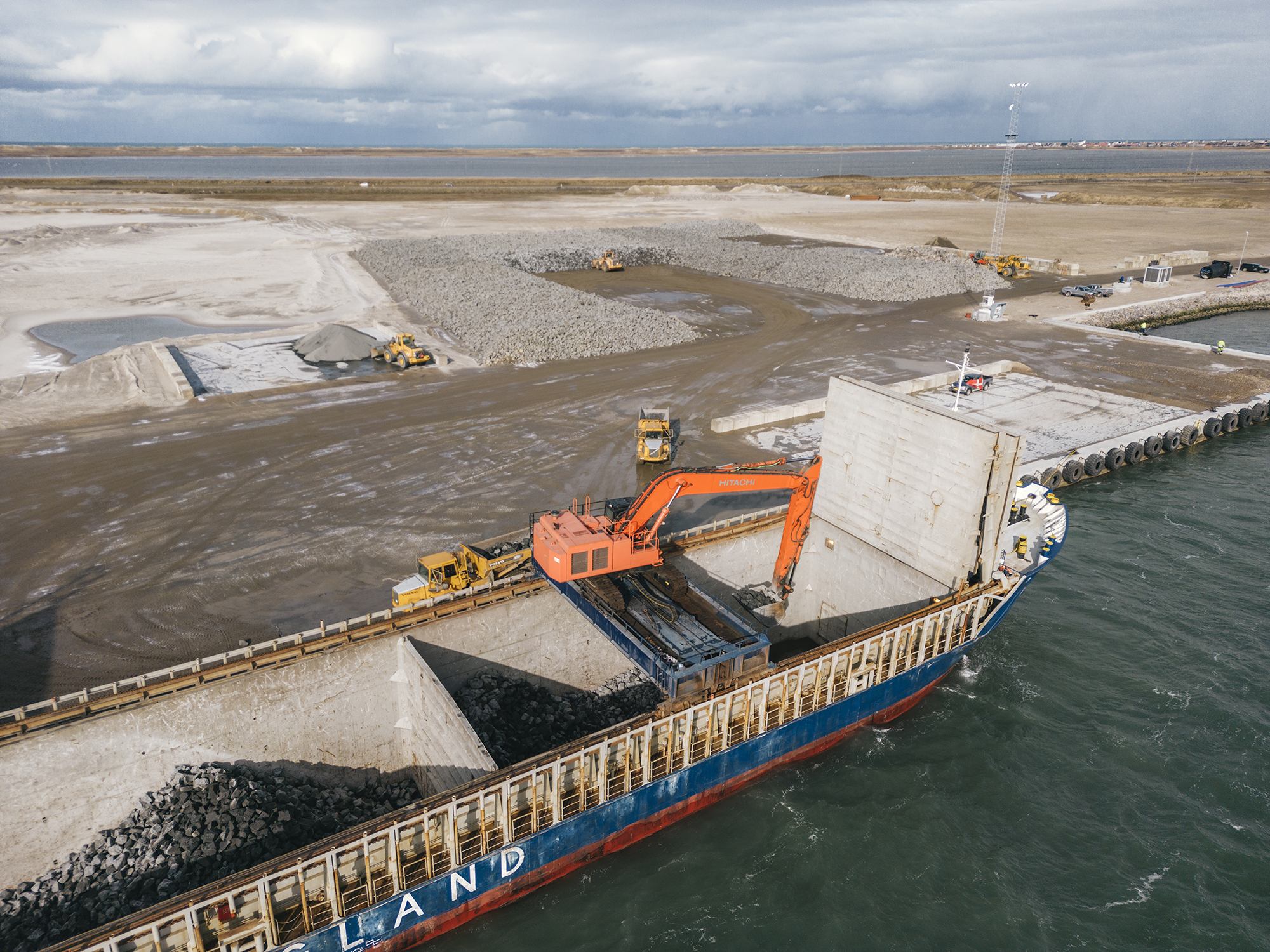

Limfjordskaj III Limfjordskaj III DJI 0404 Web

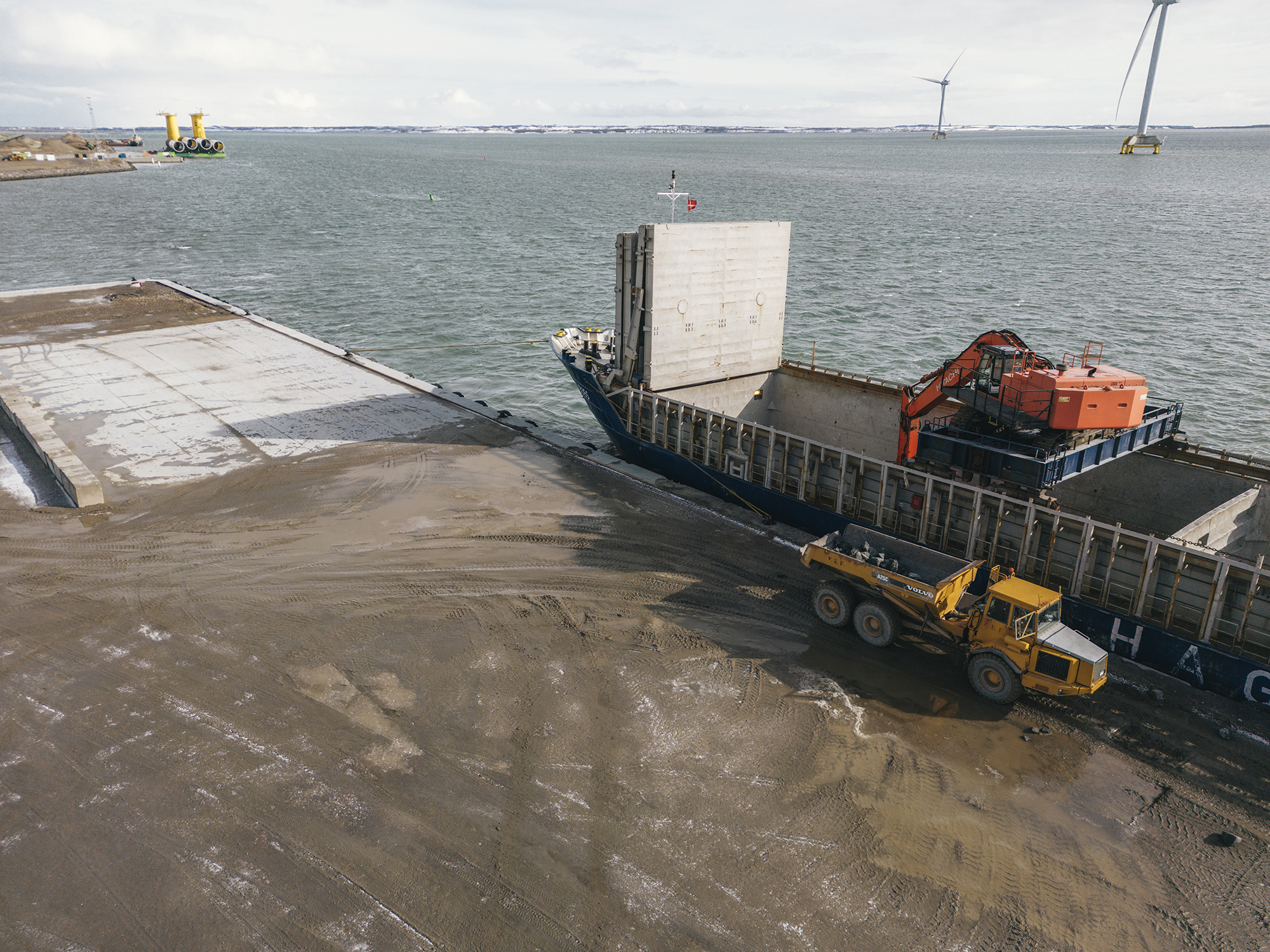

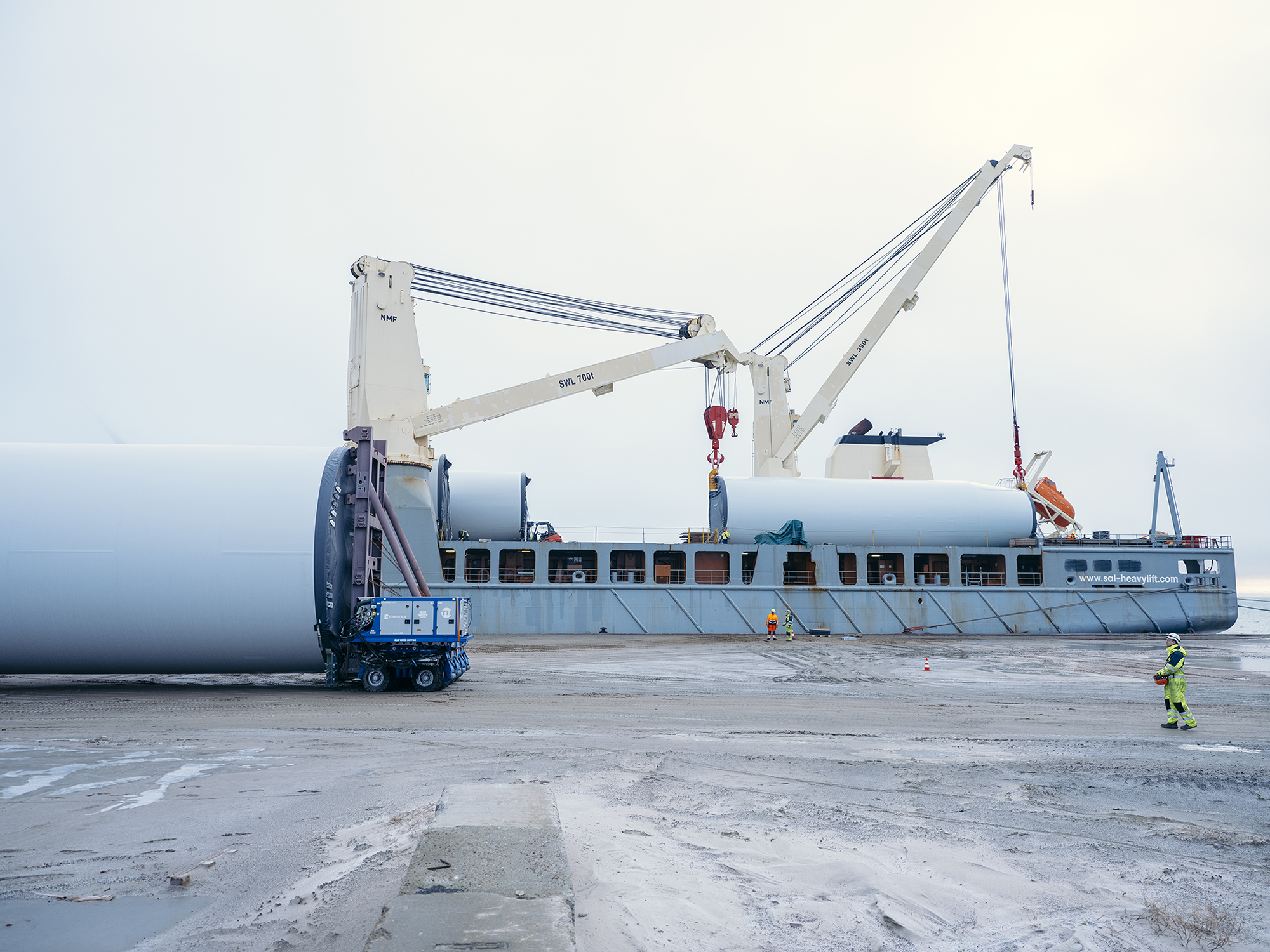

Also suitable for project cargo

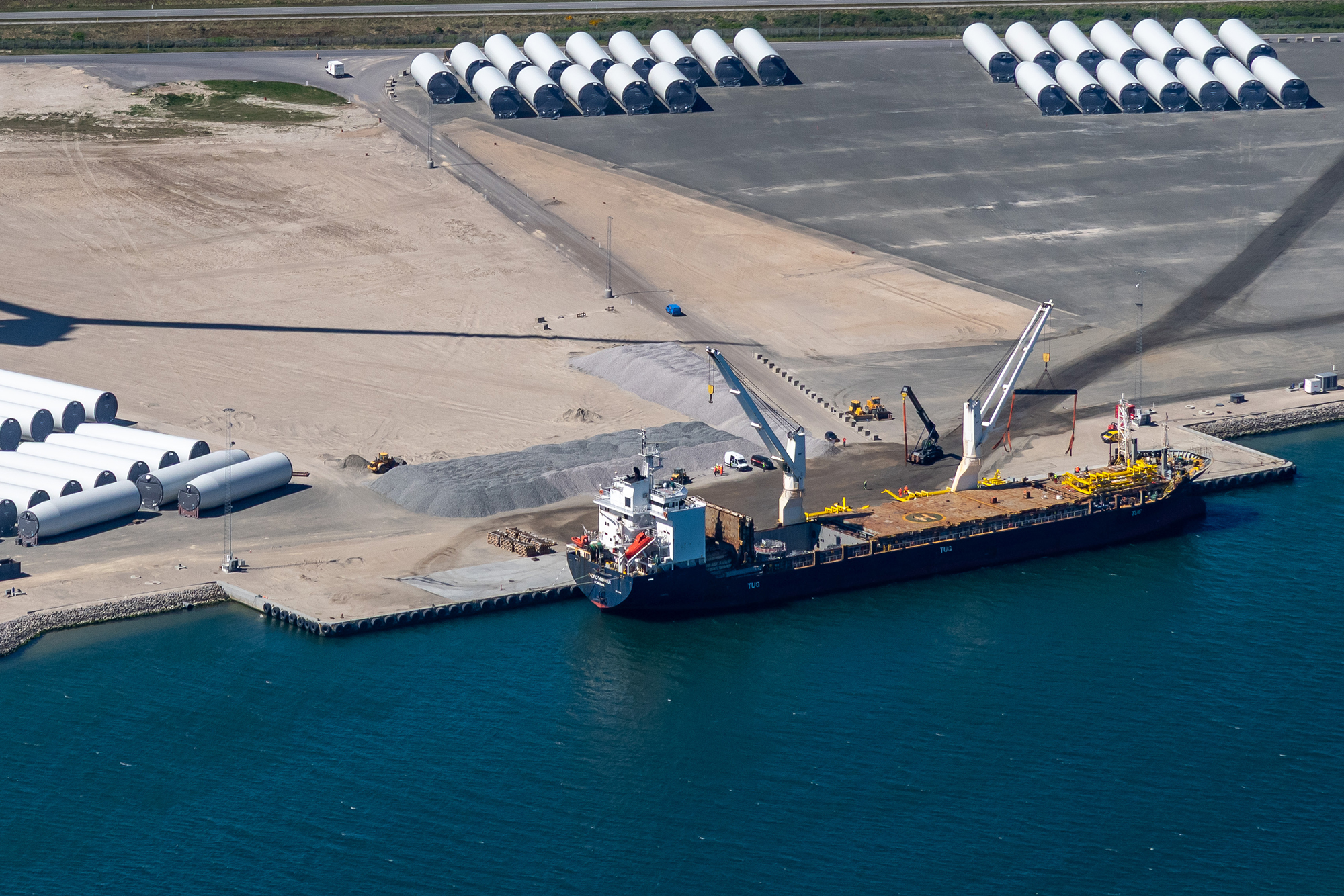

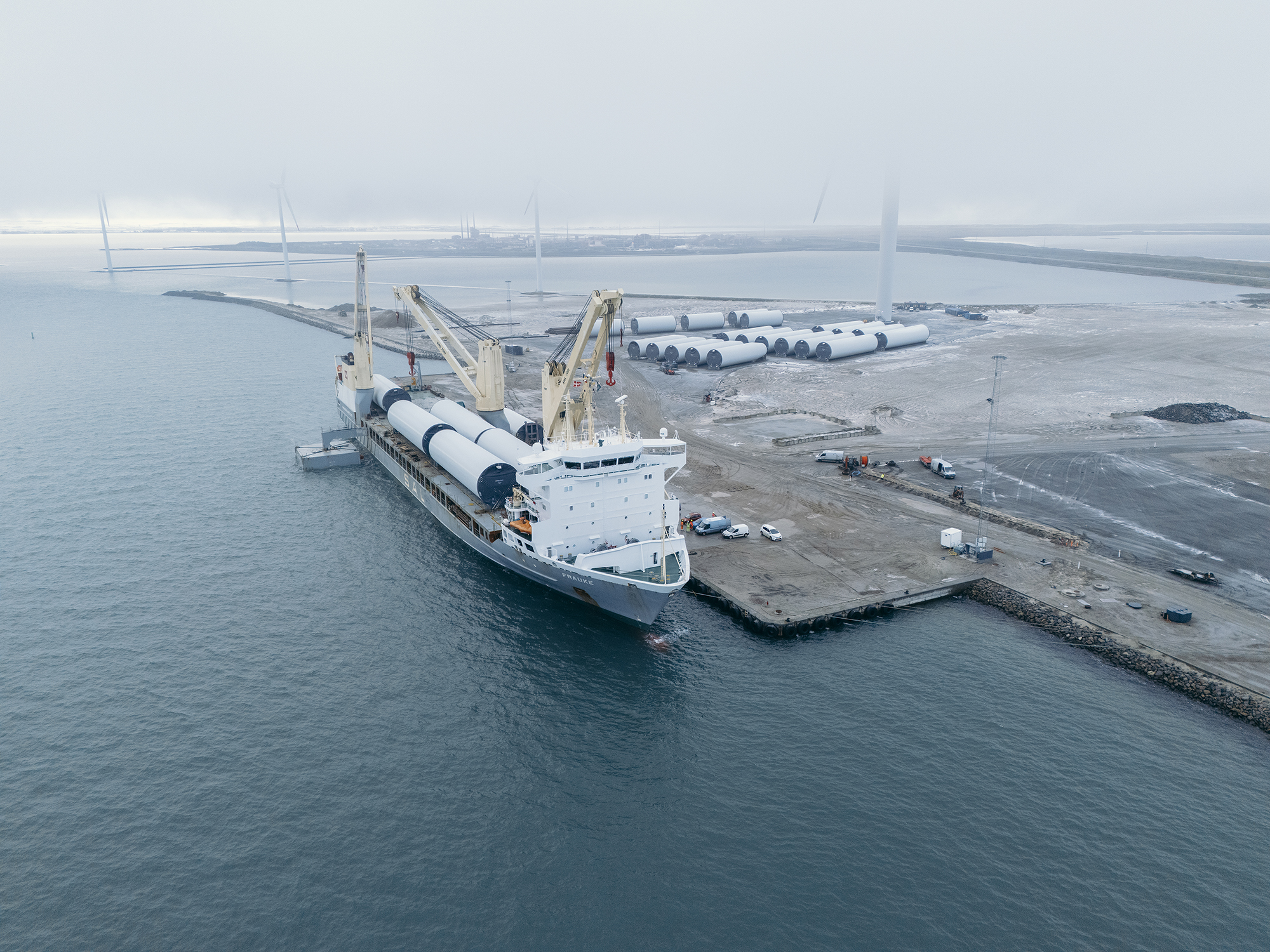

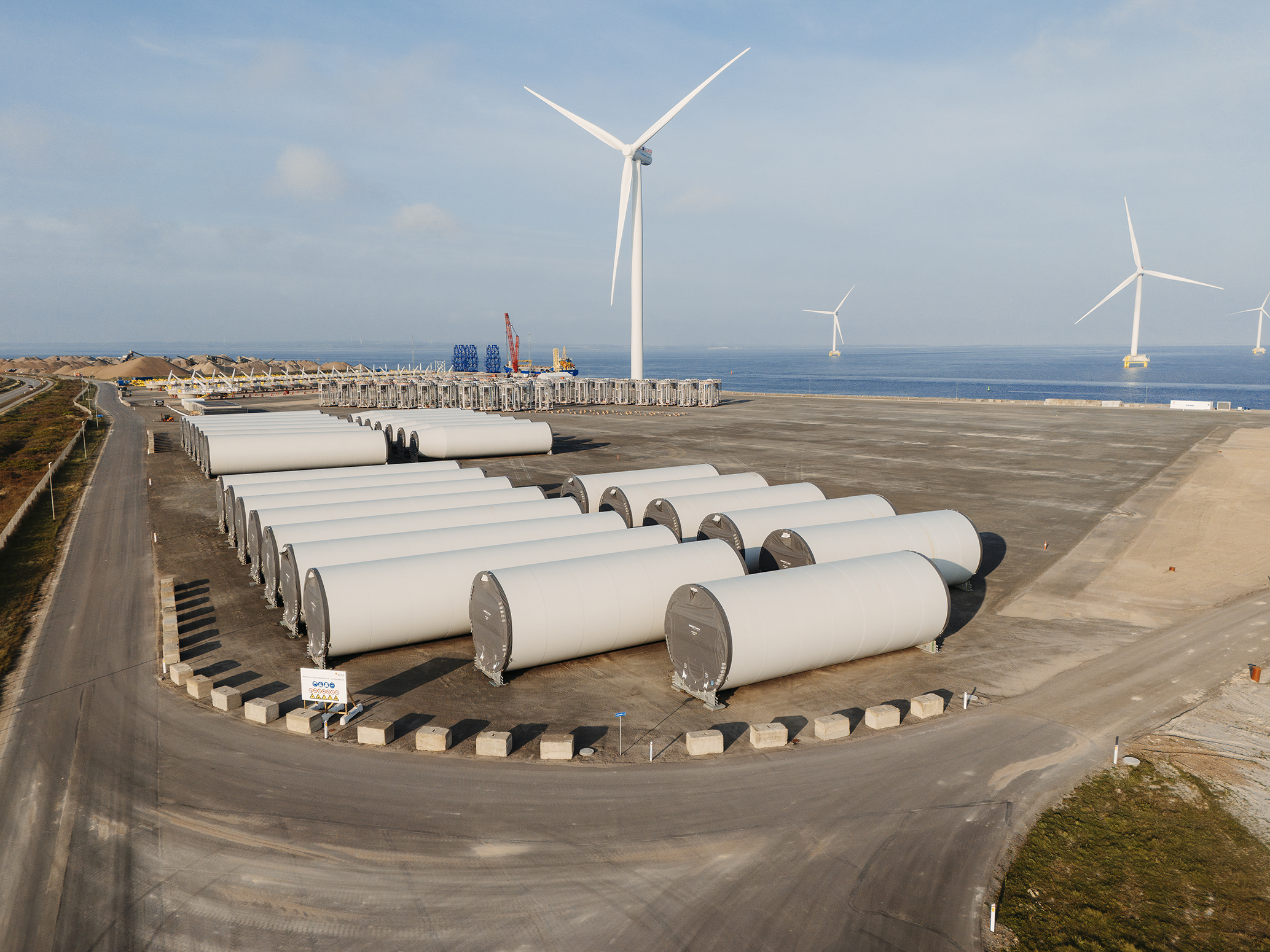

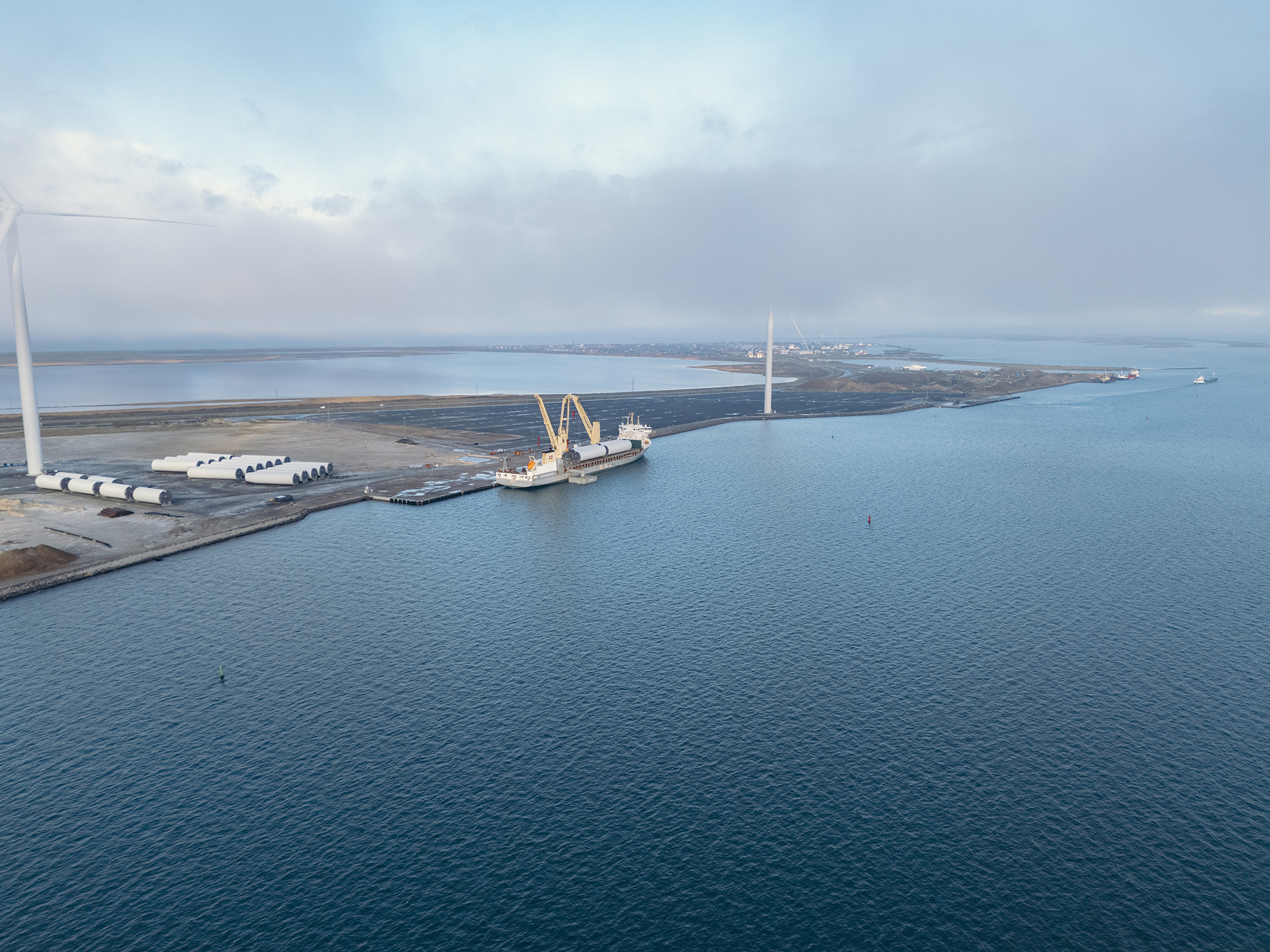

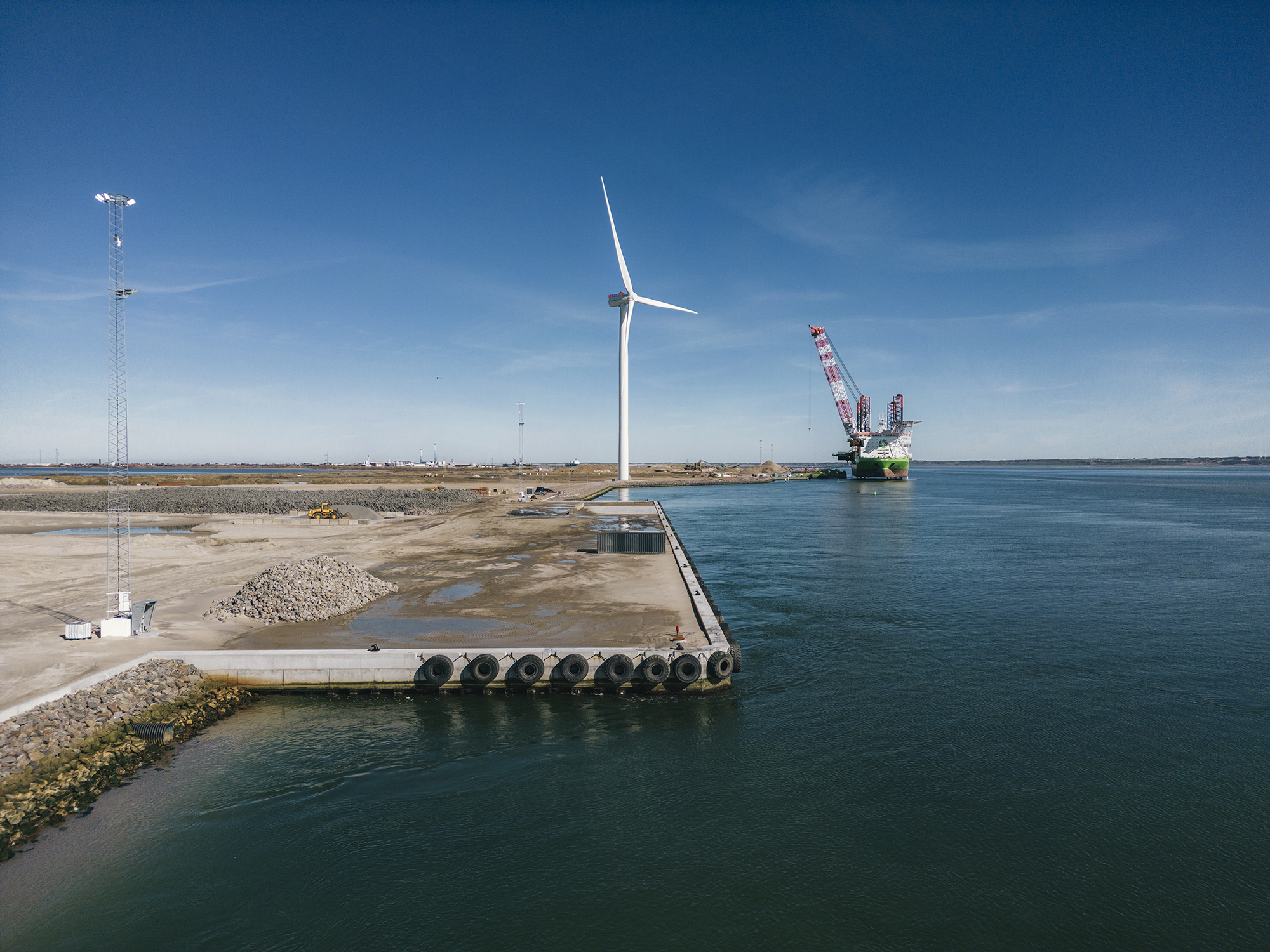

The amount of space is vital for offshore energy projects. Quayside land makes any offshore energy project more cost-efficient. The Port of Thyboron’s large areas between the quays and the road offer great advantages to both the offshore wind and onshore energy sector. Work can be done without disruption when storing the huge components. The new land adjacent to Limfjordskaj III is next door to the Limfjordskaj II project quay, effectively doubling the storage capacity in a large contiguous 300,000 m2 area.

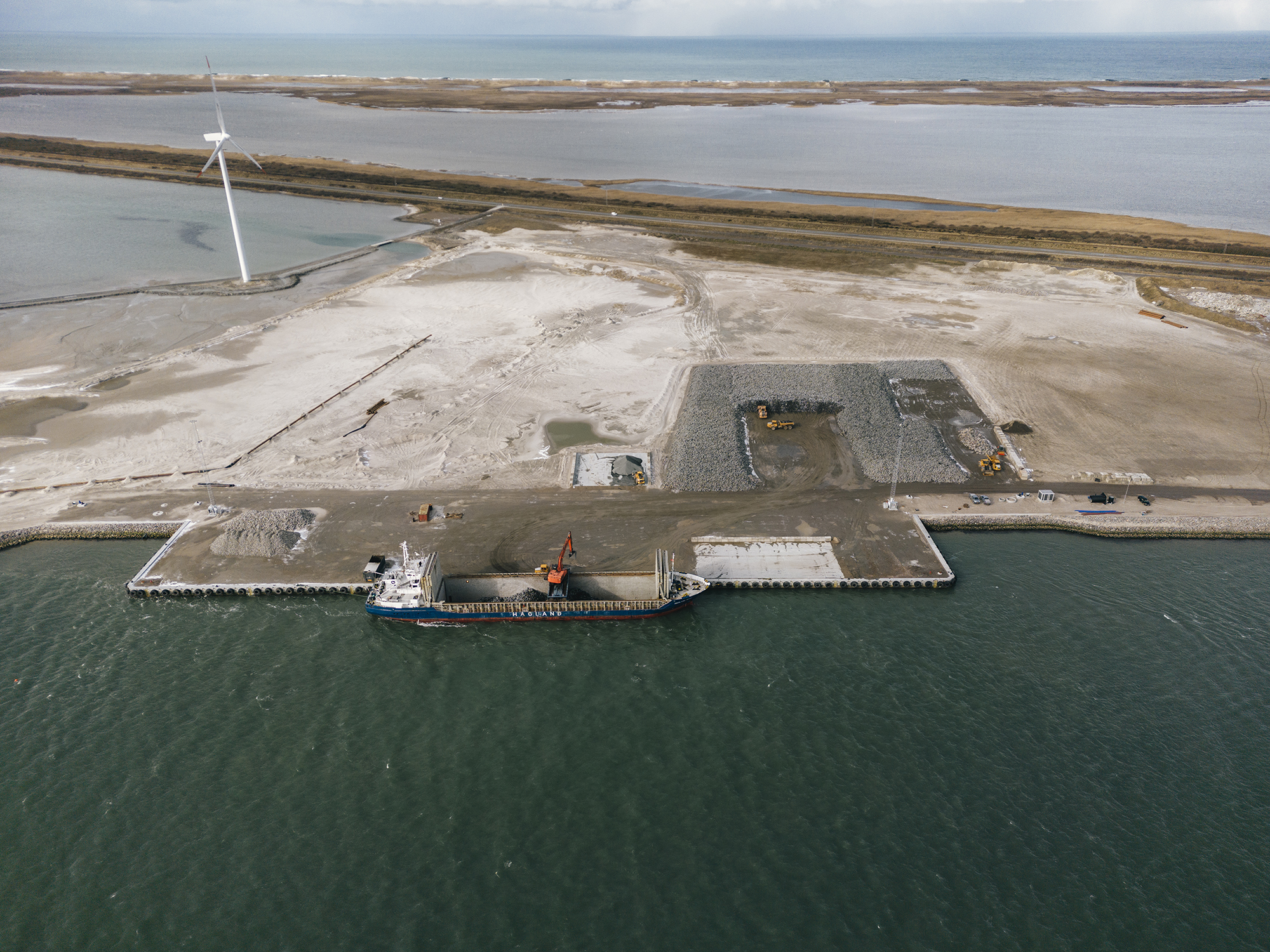

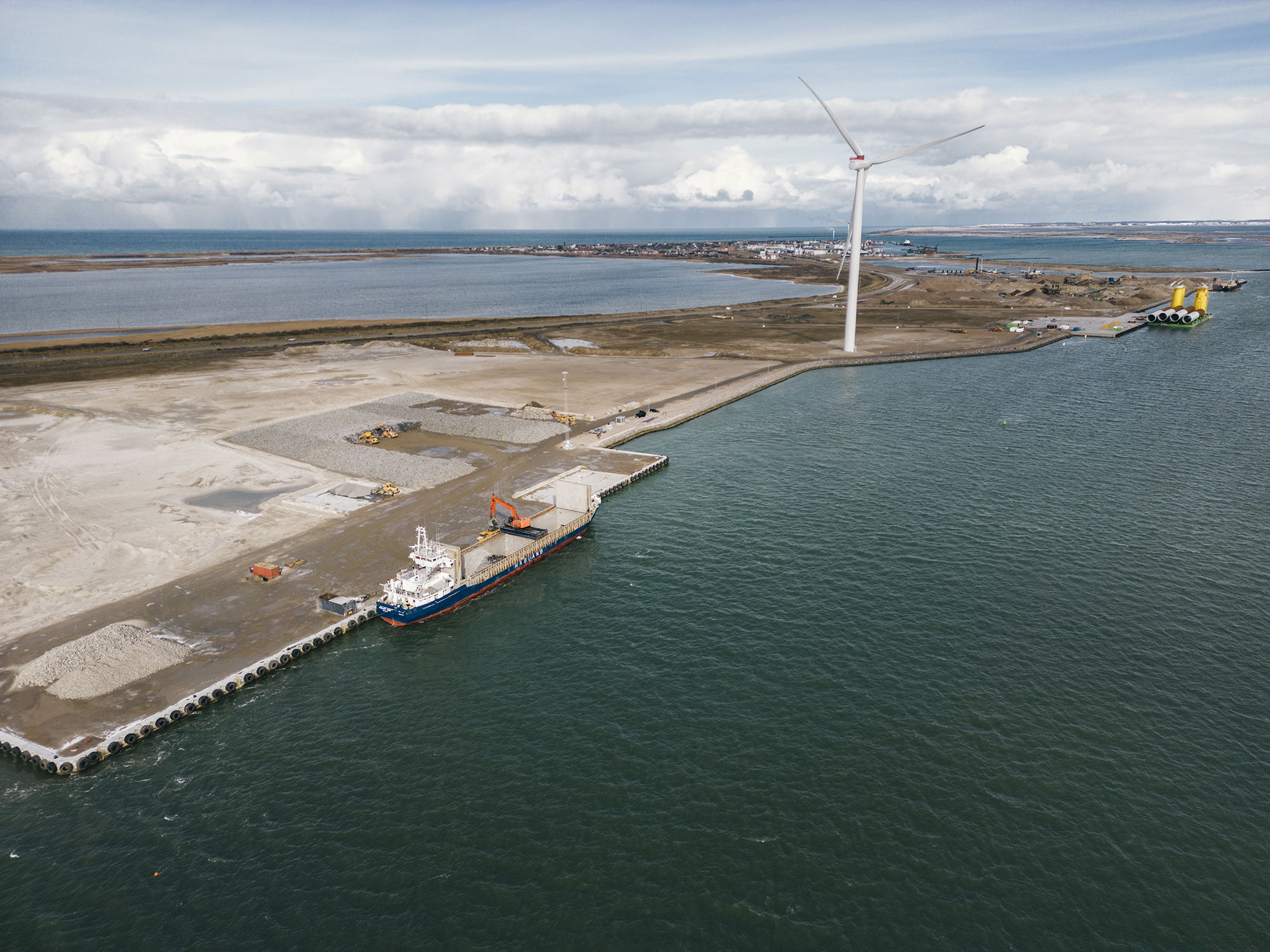

Limfjordskaj III Limfjordskaj III DJI 0442 Web

Establishment of stevedore facilities

Large newly established areas provide great opportunities to implement efficient new logistics solutions. This offers new potential, and there is now ample room for these in Sydhavnen at the Port of Thyboron.

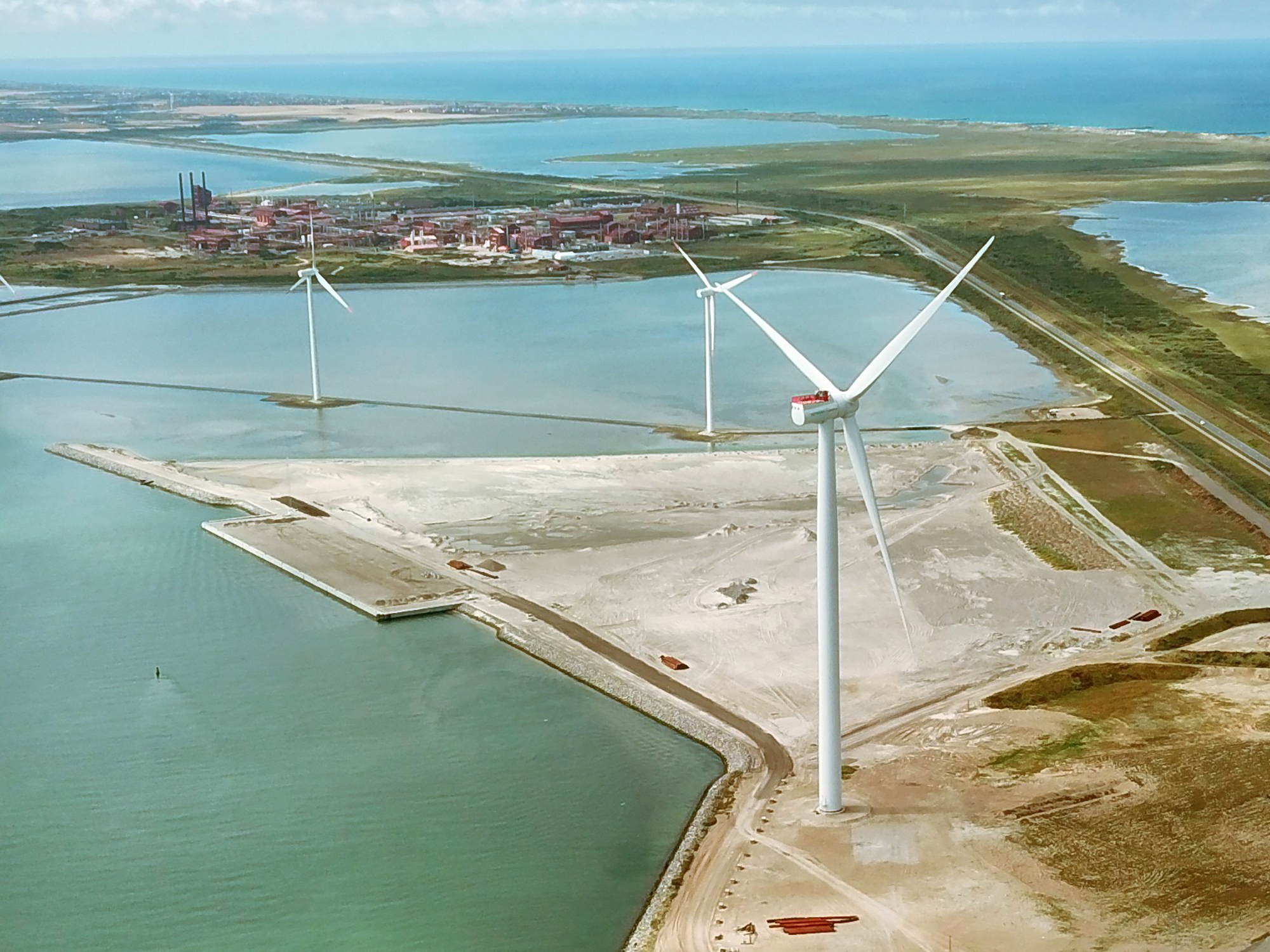

Limfjordskaj III Drone View Close Up Web
Limfjordskaj III Limfjordskaj III DJI 0463 Web

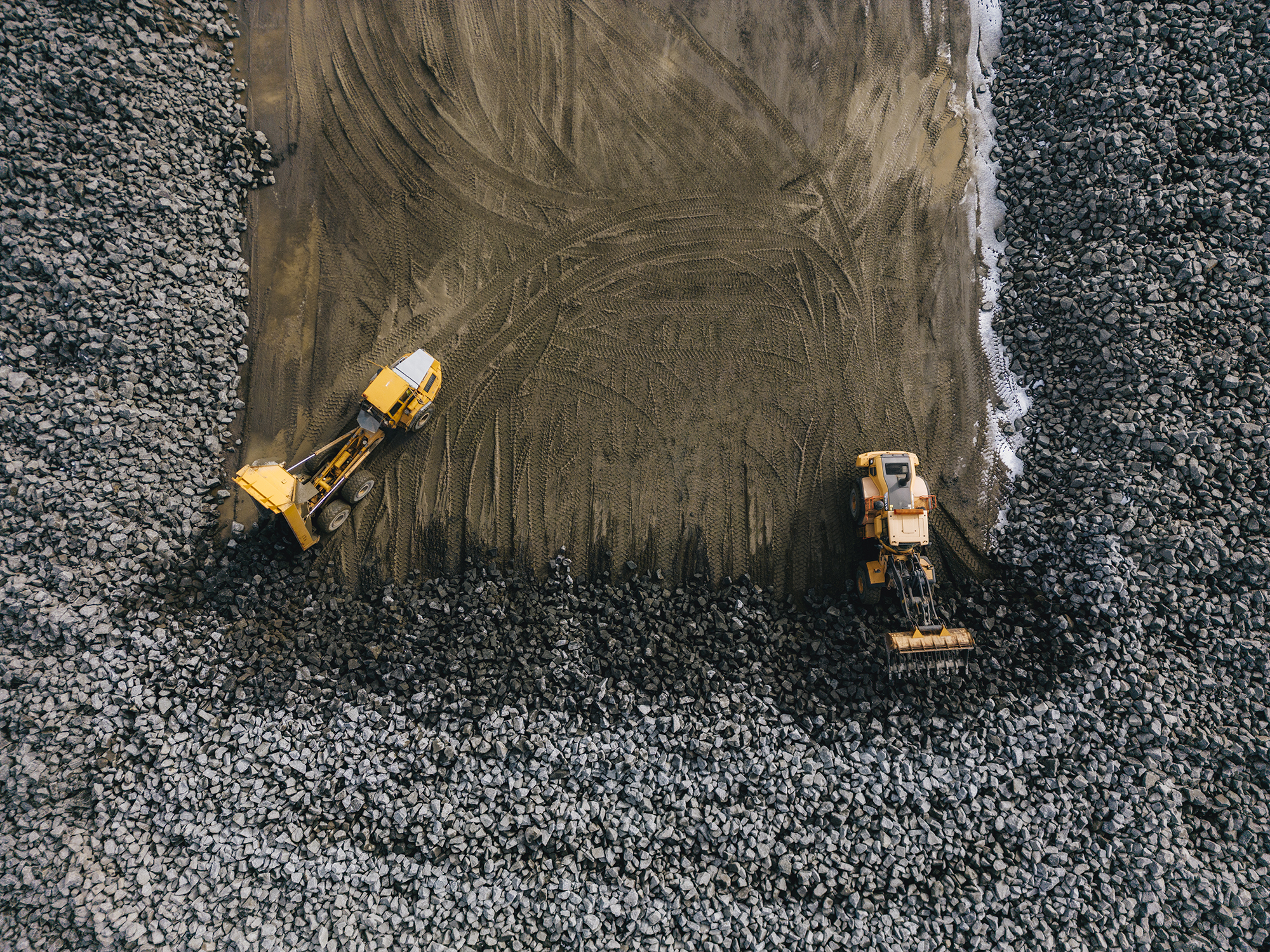

Limfjordskaj III Limfjordskaj III DJI 0458 Web

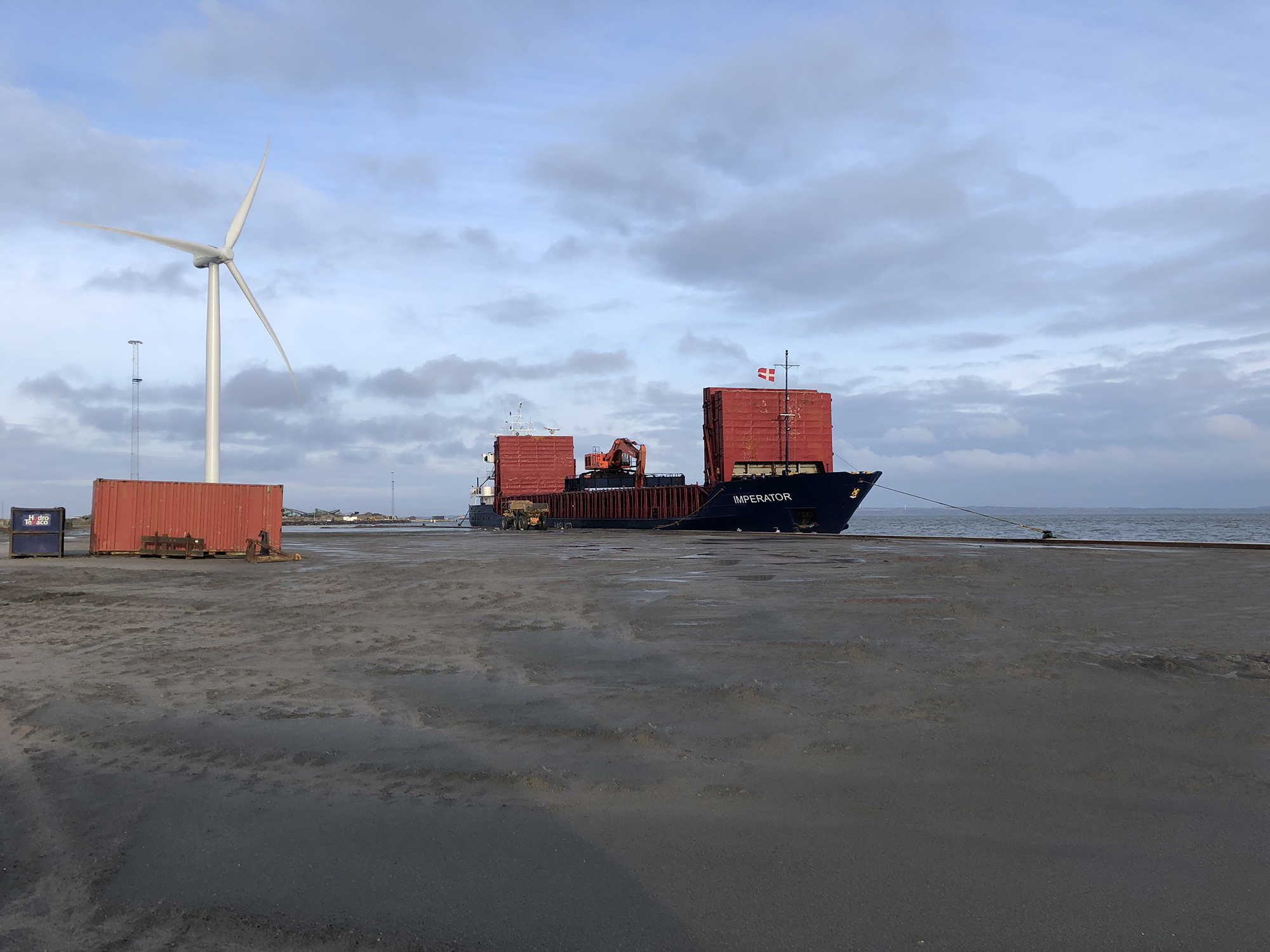

Scour Protection 5782 Adjusted Web

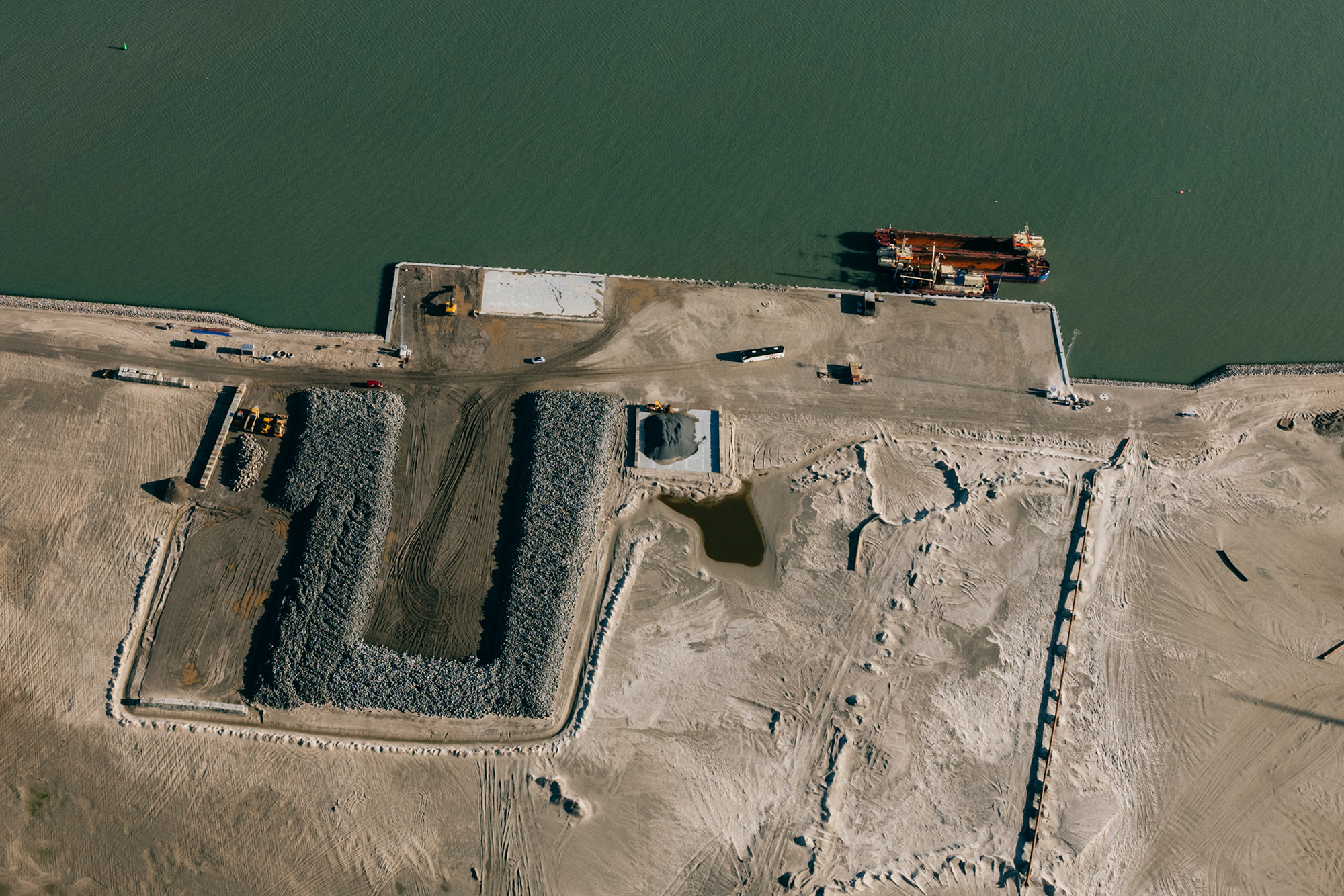

Limfjordskaj III L1050969 Web
Limfjordskaj III Limfjordskaj III DJI 0446 Web
Limfjordskaj III Limfjordskaj III DJI 0444 Web
Limfjordskaj III Limfjordskaj III DJI 0409 Web

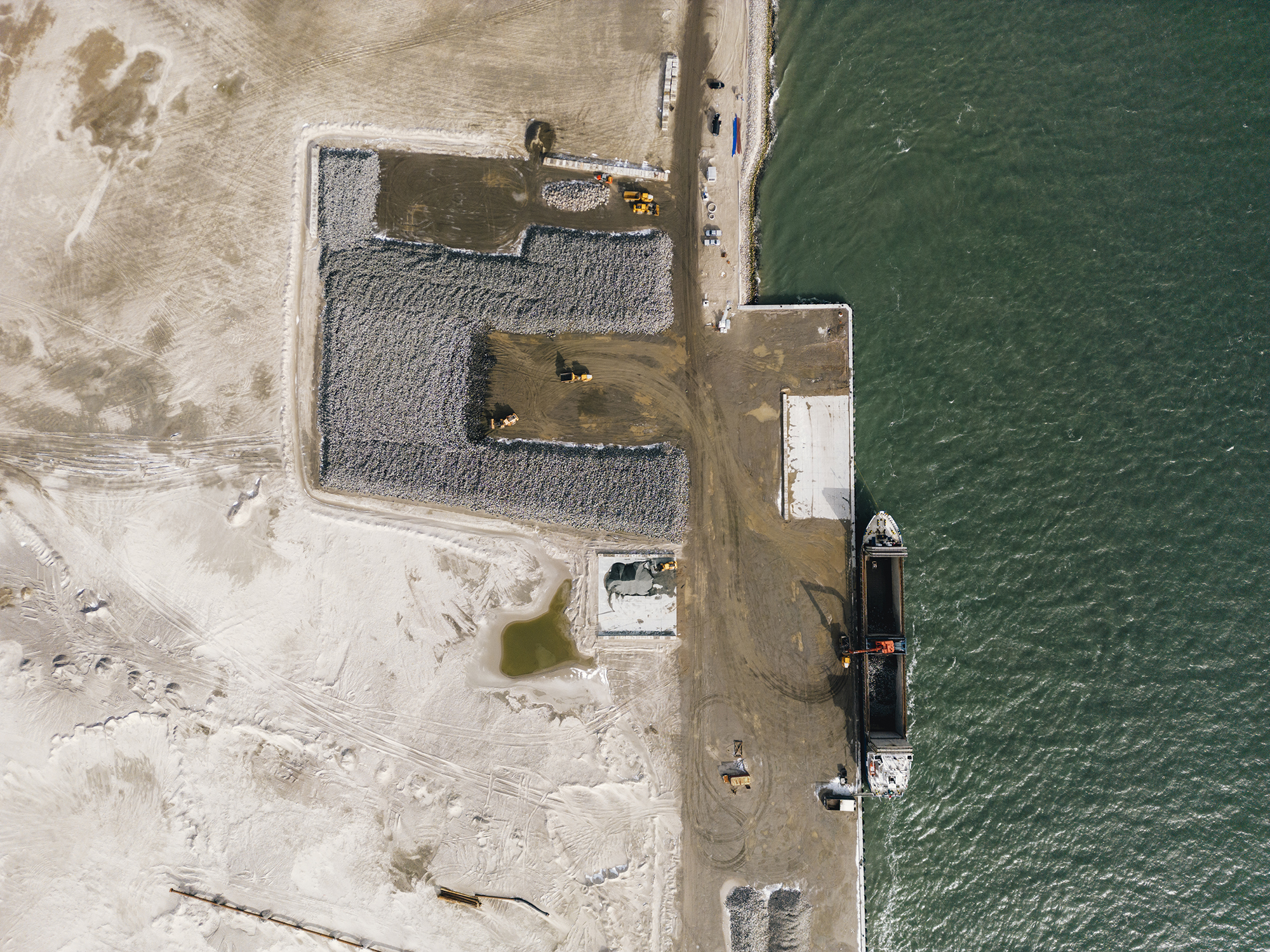

Limfjordskaj III Limfjordskaj III DJI 0454 Web

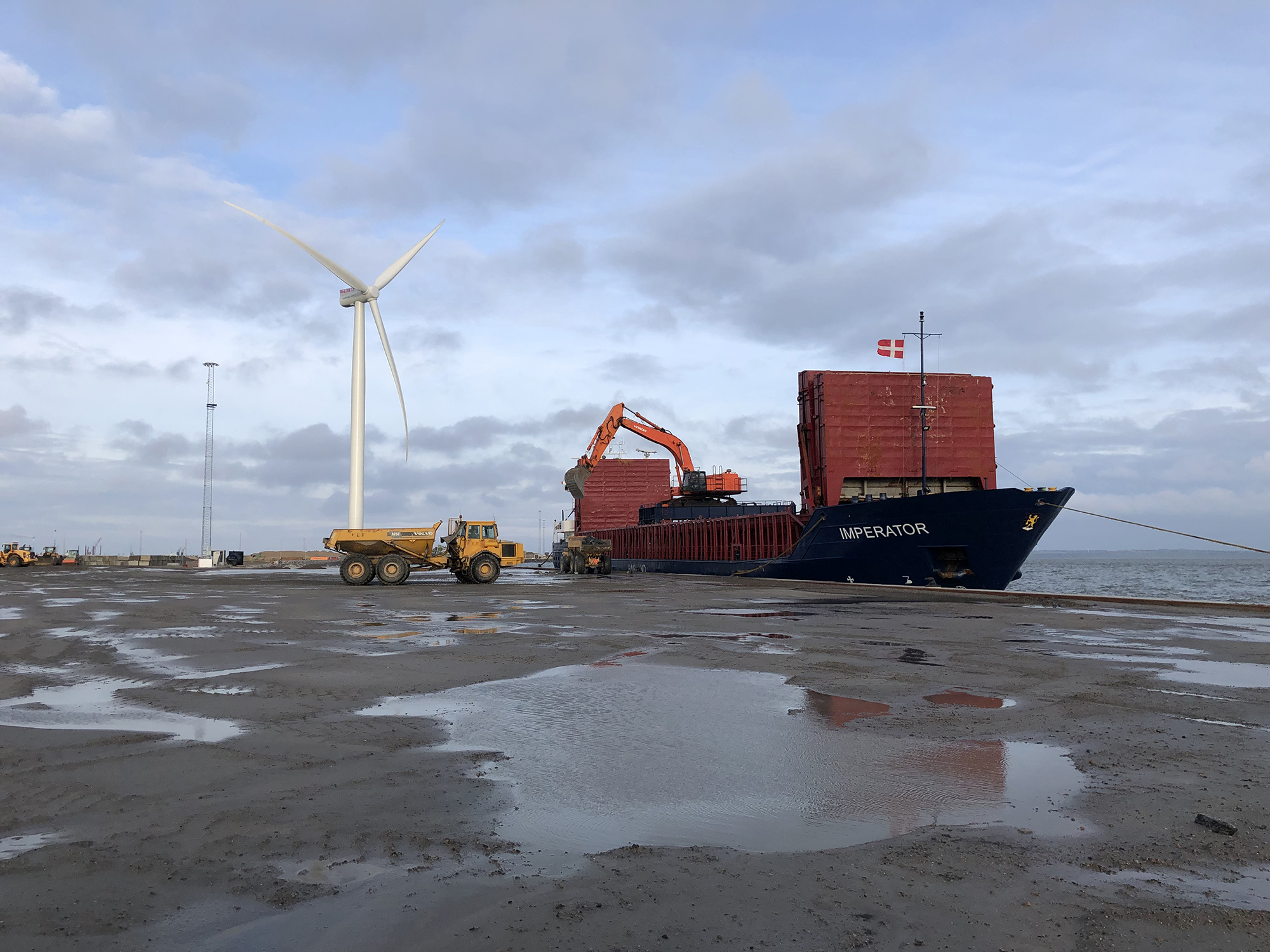

Scour Protection 5792 Web Kopi

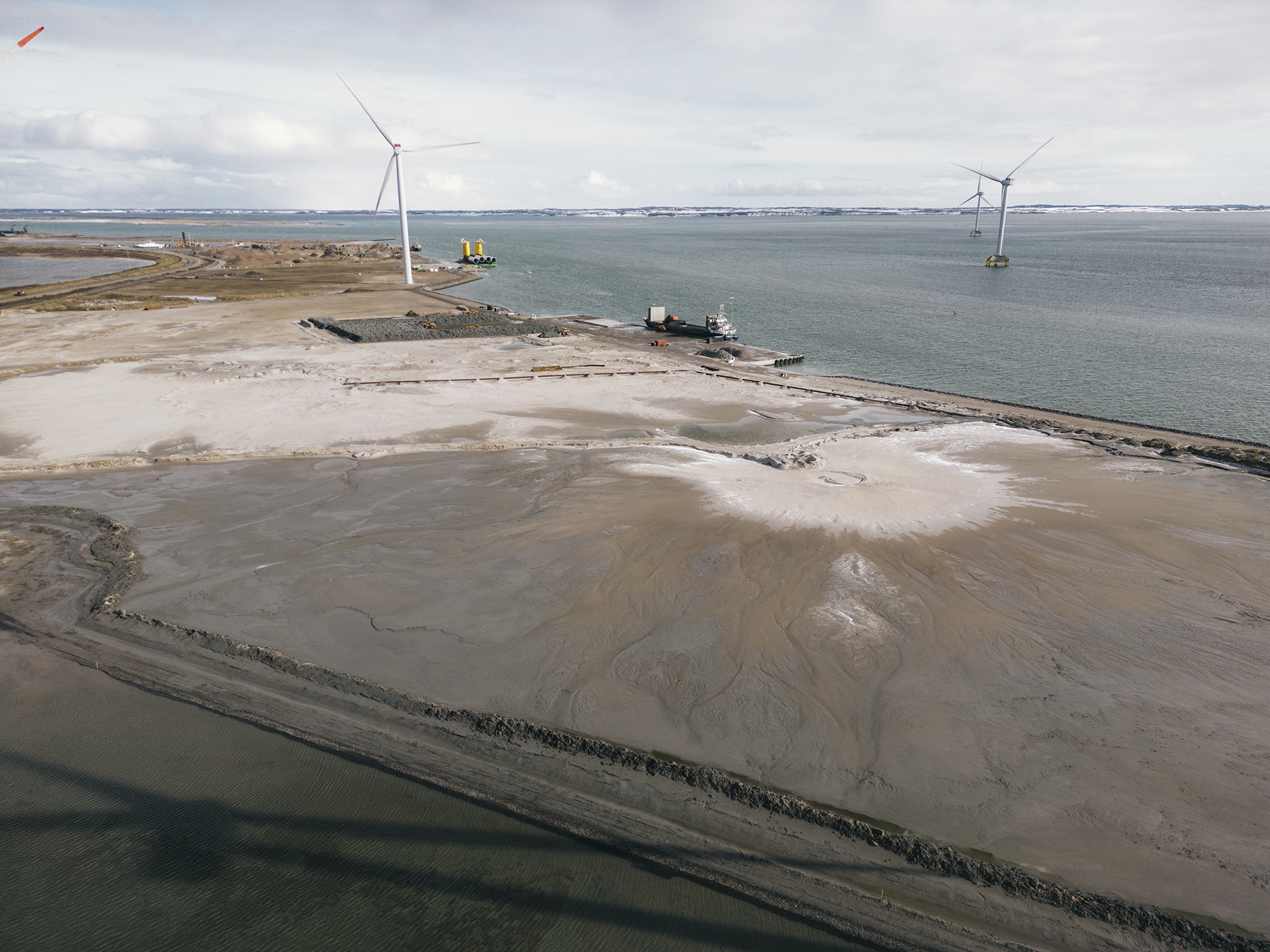

Limfjordskaj III Limfjordskaj III DJI 0411 Web

Technical Data - Limfjordskaj III

Berth number

Berth 1
2015
Berth 2
2016

Navigation

Water depth, m, (LAT)
10
Turning area, m
180
Port entrance corridor, m
90
Currents, kn
1

Quay facility specifications

Dimensions

Quay length, m
220
Quay wall in m
2,10
Quay width, m
30
ISPS gate, width, m
5
ISPS gate, heavy haulage, width, m
20

Capacity

Bearing capacity, t per m2
5
Point load, t
36
Distributet pressure, t per m2
36
Axle load, t
72
Vertical bearing capacity quay wall / capping beam, t per m
14

Type

Quay type, Sheet pile wall
Capping beam type, concrete
Capping beam width, m
1
ISPS
Surface type quay, gravel

Service

Accessibility for maritime service
Accessible for cranes

History

Construction year
2022

Quay equipment

Supplies

Power supplies
Power stations on quay
2
Power connection point, Power station 1, 125 amp
2
Power connection point, Power station 1, 63 amp
2
Power connection point, Power station 1, 32 amp
2
Power connection point, Power station 2, 63 amp
2
Power connection point, Power station 2, 32 amp
2
Power specifications, kWa, Volt, Hz
10, 400, 50
Water supplies at quay
Water hydrants on quay
2
Water feed capacity, tons or m3 per hour
100
Wi-Fi, fiber connection
Bunkering at quay
Slopoil disposal
Waste disposal

Maritime equipment

Fenders diametre, m
1,8
Fenders width, m
0,8
Distance between fenders, m
0,8
Bollard, quantity
13 & 2 & 2
Bollard type, bean
Bollard swl, capacity, t
50, 75 & 150
Distance between bollard, m
20
Capstan at quay
2

Safety

Safety ladders, quantity
9
Safety ladders, type SeaSafe with LED lights
Distance between safety ladders, m
25
Safety point, quantity
2
Safety requirements , safety helmet

Environment

LED lightning, numbers
2
LED working lights, amount
2
Sewage
Slopoil disposal
Waste disposal

Hinterland at the quayside

Dimensions

Onshore area at quayside, m2
170000
Concrete-surfaced felt areas, m
5x5
Storage area, m2
170000

Capacity

Bearing capacity, project area at quayside, t per m2
Surface thickness, project area, cm
Bearing capacity, quayside storage area, t per m2
Surface thickness, quayside storage area, cm

Type

Surface type project area, concrete
Surface type, storage area, hard core
