Isværkkaj
Quay 703, 706
Quay to service fishing for human consumption and transit fishing vessels and provide maritime services

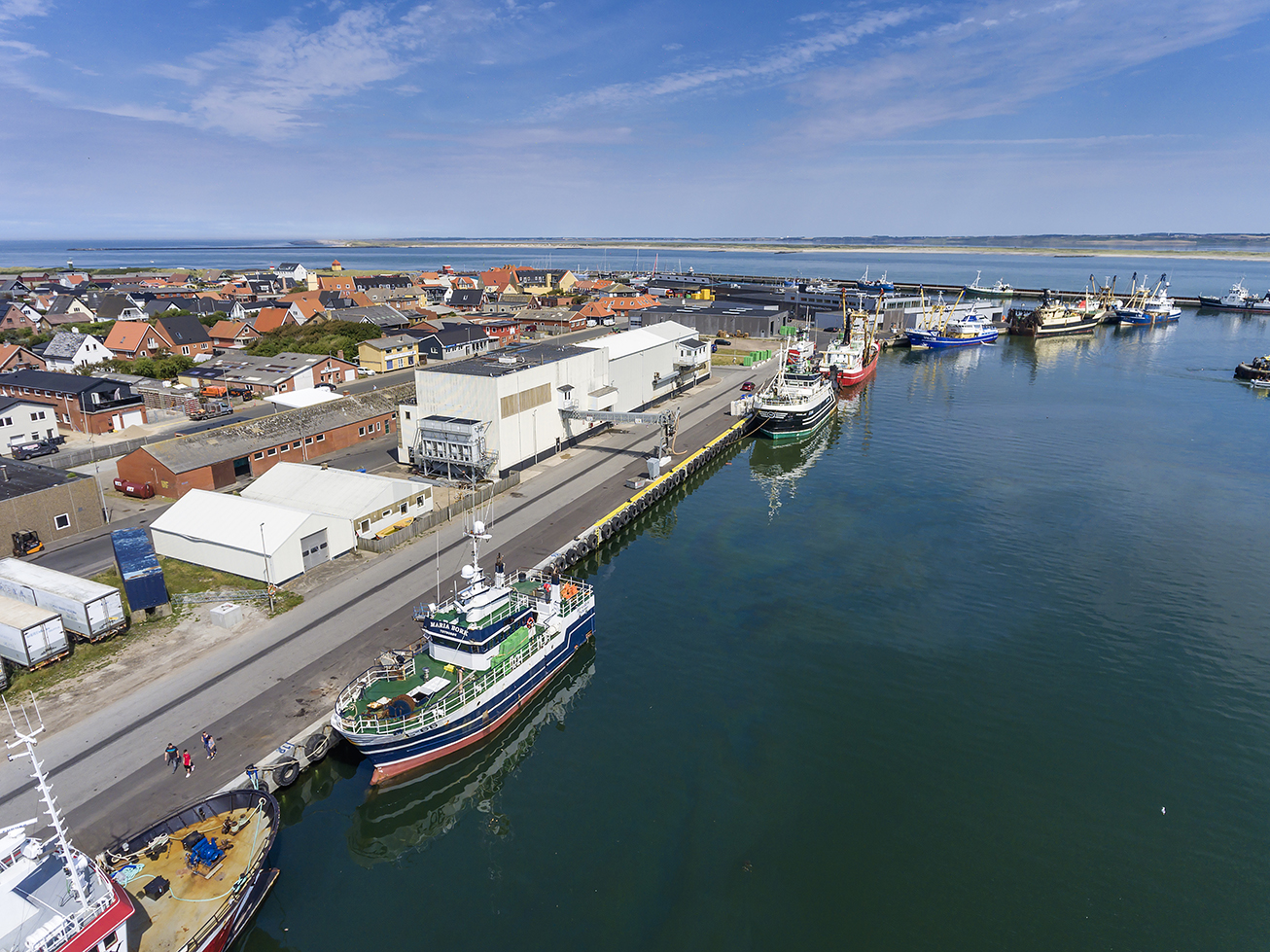

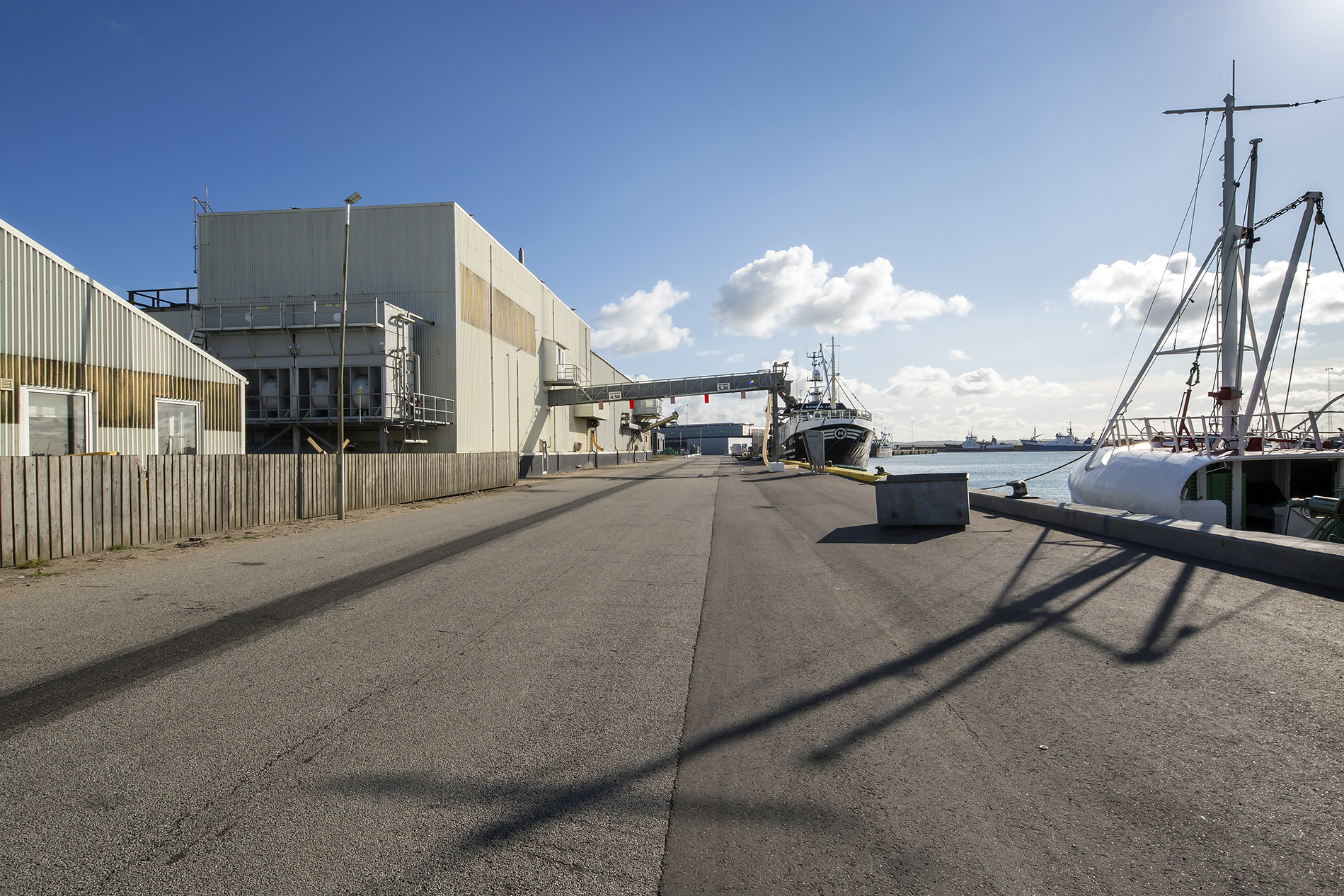

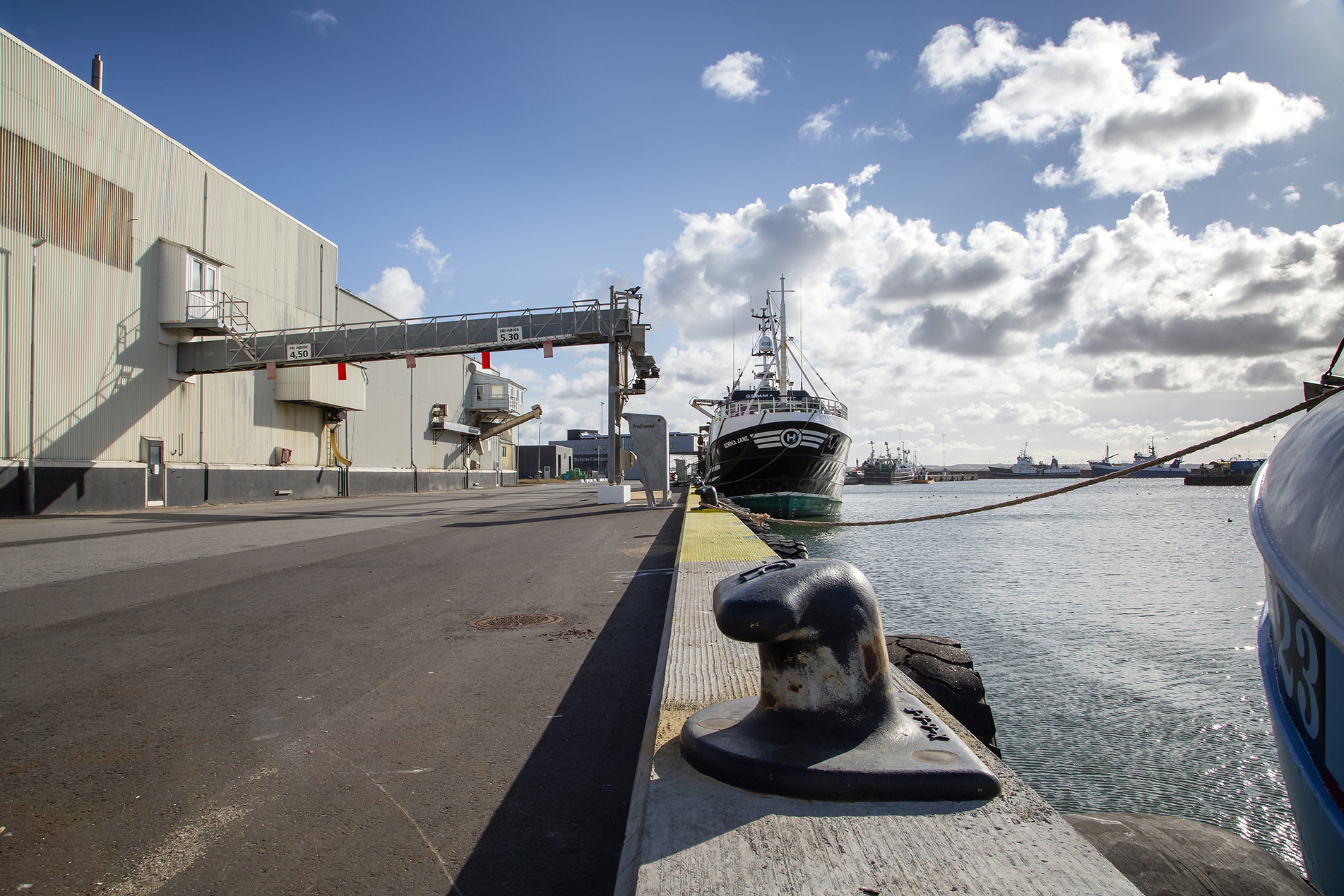

Isværkkaj was renovated in 2020, when the entire Vestre Inderhavn harbour basin was modernised. The water depth was increased to 6 metres, which has increased the port’s capacity for transit fishing vessels. The 167 metre quay with easy access conditions for trucks allows 4-5 extra transit fishing vessels to spend the weekend in Thyboron.
The quay is also widely used by Danish fishing for human consumption vessels, and is suitable for maritime services from the nearby Kynde &Toft A/S and Thyborøn Skibs & Motor A/S shipyards, given the quay’s easy access conditions for cranes.
Simple ice delivery from the ice factory
Close to the fish auction and fish distribution
Ideal for transit fishing
Technical Data - Isværkkaj
Berth number
- Berth 1
- 703
- Berth 2
- 706
Navigation
- Water depth, m, (LAT)
- 5,8
- Port entrance corridor, m
- 59
- Currents, kn
- 0
Quay facility specifications
Dimensions
- Quay length, m
- 167
- Quay width, m
- Quay wall in m
- 2
Capacity
- Bearing capacity, t per m2
- 0,5
- Point load, t
- 28
- Outrigger pressure at 1X1 m plate, t
- 10
- Outrigger pressure at 1X1 m plate, 1 m from quayside, t
- 28
- Outrigger pressure at 2X2 m plate, t
- 18
- Outrigger pressure at 2X2 m plate, 2 m from quayside, t
- 40
- Outrigger pressure at 4X2 m plate, t
- 40
- Axle load, t
- 30
Type
- Surface type quay, asphalt
- ✓
- Capping beam type, concrete
- ✓
- Quay type, Sheet pile wall
- ✓
Service
- Accessibility for maritime service
- ✔
- Accessible for cranes
- ✔
History
- Construction year
- 2020
Quay equipment
Safety
- Safety ladders, quantity
- 6
- Safety ladders, type SeaSafe with LED lights
- ✓
- Distance between safety ladders, m
- 24
- Safety point, quantity
- 1
Supplies
- Power supplies
- ✓
- Power stations on quay
- 5
- Power connection point, 63 amp
- ✓
- Power connection point, 32 amp
- ✓
- Water supplies at quay
- ✓
- Water hydrants on quay
- 2
- Water feed capacity, tons or m3 per hour
- Bunkering at quay
- ✓
- Bunkering from barge
- ✓
- Bunkering capacity l/min
- 1500
- Bunkering capacity per barge, m3
- 70-80
- Ice supplies
- ✓
Maritime equipment
- Fender type
- 23-5
- Fenders diametre, m
- 1,5
- Fenders width, m
- 0,6
- Distance between fenders, m
- 0,8
- Bollard, quantity
- 14
- Bollard type, bean
- X-6-A-F
- Bollard swl, capacity, t
- 30
- Distance between bollard, m
- 12
Environment
- Waste disposal
- ✓
- Slopoil disposal
- ✓
- Wi-Fi, fiber connection
- ✓
- LED working lights, amount
- 2
Service
- Accessibility for maritime service
- ✓
- Accessible for cranes
- ✓
